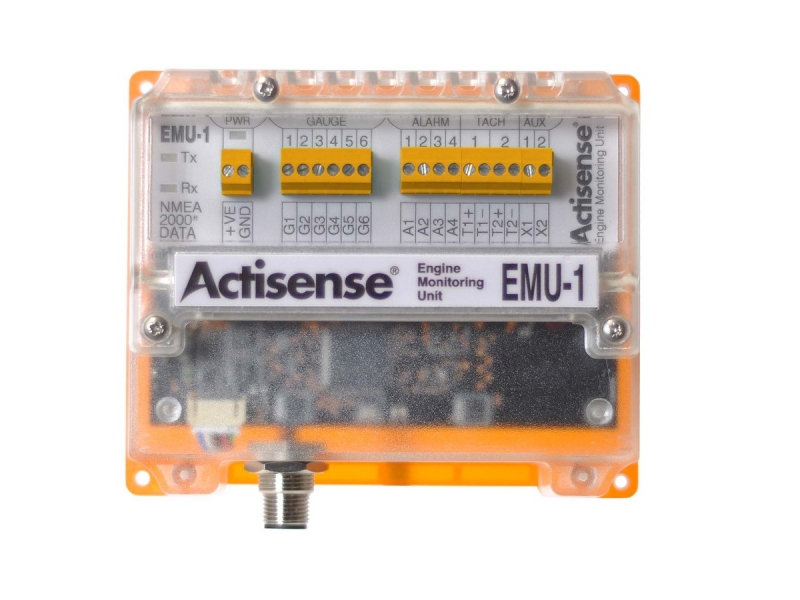

EMU-1-BAS Analogue to NMEA 2000 Gateway

The EMU-1-BAS enables NMEA 2000 display devices to monitor the engine on a vessel.

The EMU-1-BAS has a PC based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models. Capable of measuring a wide range of engine parameters, the EMU-1 reports how the engine is operating and shares the information across the network.

Designed to simplify the conversion of analogue engine parameters (e.g. Temperature, pressure and RPM) into NMEA 2000 engine PGNs, the EMU-1 simplifies processes and reduces the number of input/output wires required at each engine. Additionally, the EMU-1 also supports the conversion of analogue transmission parameters and battery status to the associated NMEA 2000 PGN's.

Now available with the SeaTalk NG to NMEA 2000 adaptor Cable - STNG-A06045
The SeaTalk NG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.

The two-part screw terminal connection system allows for an easy pluggable connection to an engine wiring harness.

The EMU-1 can monitor two engines where each engine has three (or less) gauges that require monitoring. Where dual engines have more than three gauges each to monitor, multiple EMU-1 units are required.

Alternatively, the EMU-1 can be used to monitor fluid levels in up to six tanks at any one time. The addition of a configurable 'instance' for each tank allows the user to identify which tank the data is coming from.

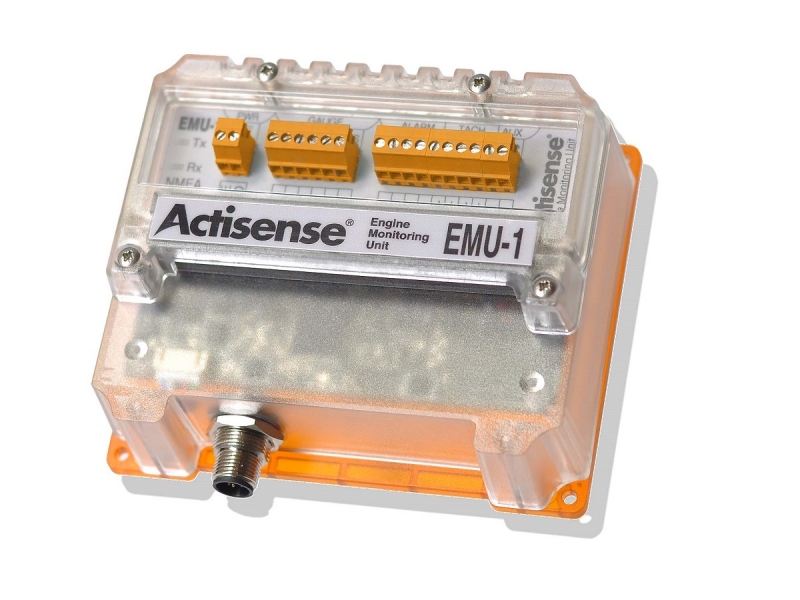

The customized case ensures that the electronics are sealed while allowing quick access to the electrical connections.

An optional DIN rail mounting kit is also available. The kit is suitable for use with a top hat rail, type EN 50 022 or a G section rail, type EN 50 035. Please order the DIN rail kit using part number: DIN-KIT-1.

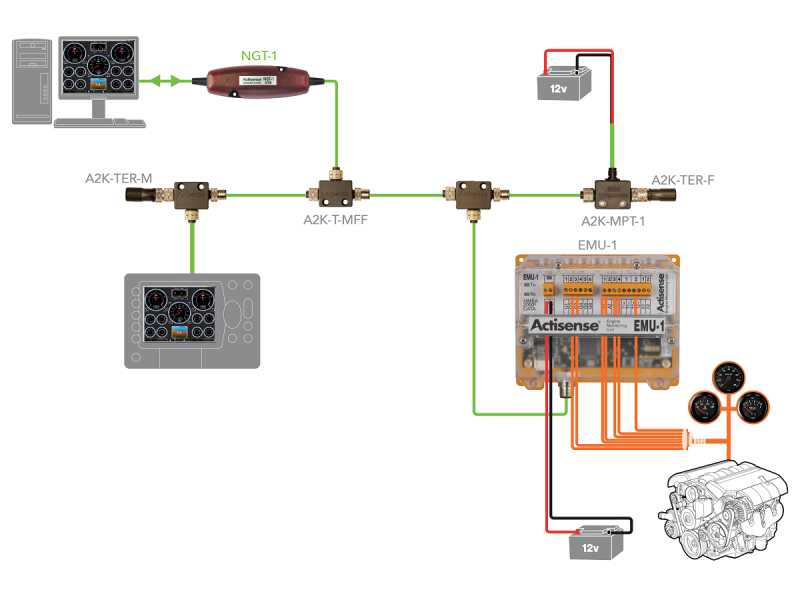

It is recommended that an Actisense NGT-1 NMEA 2000 PC Interface is available for every EMU-1 installation. The NGT-1 can be used to update the Firmware, connect the Configuration Tool and display data on a PC for diagnostic and information purposes, using NMEA Reader.

FEATURES

• 6 gauge inputs
• 4 alarm inputs
• 2 tacho inputs
• Dual engine support (with a common ground)
• Logs total engine time using the tacho inputs
• Simple single wire gauge connections; common
• ground referenced design
• Manual measurements are not required to configure
• Firmware and configuration can be modified remotely
• over the NMEA 2000 network to suit different
• installations (requires an NGT-1 and PC software)
• Waterproof electronics and splash-proof connections
• Pluggable connectors for quick and easy installation
• Optional DIN rail mounting kit available

Technical Specifications

Power Supply

• Supply Voltage: 9 to 35V DC
• Supply Current Typically: <25mA @ 12V DC
• Supply Protection: Continuous reverse polarity protection and load dump protection (meets SAE J1113)
• Supply Connector: Pluggable 2-way screw terminal, 3.5mm pitch
• Supply Voltage (NMEA 2000 port): 9 to 29V DC
• Supply Current (NMEA 2000 port): <20mA @ 12V DC from NMEA 2000 bus
• Load Equivalence Number (NMEA 2000 port): 1 LEN
• Supply Protection (NMEA 2000 port): Continuous reverse polarity protection and overvoltage protection to 40V

NMEA 2000 Port - in/out

• Compatibility: Fully NMEA 2000 compatible
• Galvanic Isolation: 2500V input to ground
• Speed/Baud Rate: 250kbps
• NMEA 2000 Connector: M12 male (A coded) connector

Gauge Inputs

• Voltage Range: 0 to 35V DC
• Input Impedance: >50kΩ
• Sender Feed: 0, 4 or 18mA
• Accuracy: <=2%
• Input Connector: Pluggable 6-way screw terminal, 3.5mm pitch
• Input Protection: Overvoltage protection to ±40V

Alarm Inputs

• Voltage Range: 0 to 37V DC
• Input Impedance: >50kΩ
• Threshold Voltage: Configurable. default is 5V
• Alarm Polarity: configurable, default is alarm on low input
• Accuracy: <=2%
• Input Connector: Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection: Overvoltage protection to =/-40V

Tacho Inputs

• Voltage Range: ±3 to ±60V
• Input Impedance: >100KOhms to ground
• Input Pulse Range: 4 to 50,000Hz
• Accuracy: <=1%
• Sender Compatibility: Ignition coil, alternator W connection, Hall effect, VR or inductive sender
• Threshold: Automatically adjusts to signal level
• Input Connector: Pluggable 4-way screw terminal, 3.5mm pitch
• Input Protection: Can withstand ignition pulse to ±500V

Engine Log

• Engine Hours: 2 separate engine hour logs internally connected to the tacho inputs. Hours are logged when RPM is present, stored in non-volatile memory.

Mechanical

• Housing Material: Polycarbonate
• Protective Lid Material: Polycarbonate
• Sealing Materials: Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE water proof vent
• Dimensions: 127mm (L) x 112mm (W) x 48mm (H)
• Weight: 250g
• Mounting: 4 x 3.5mm lugs to allow panel mount with self-tapping s/s screws (included), optional DIN rail mount available on request.

Approvals and Certifications

• NMEA 2000®: Full NMEA 2000® approval pending
• EMC: IEC 60945 (sections 9 & 10)
• Environmental Protection: IP66
• Operating Temperature: -20°C to + 55°C
• Storage Temperature: -30°C to + 70°C
• Relative Humidity: 0 to 93% RH
• Guarantee: 3 years
