QNB-1-PMW - NMEA 0183 / NMEA 2000 Quick Network Block - Female Conectors

The Actisense QNB-1-PMW provide flexible alternatives to multiple connectors reducing the cost of an NMEA 2000 cable installation.

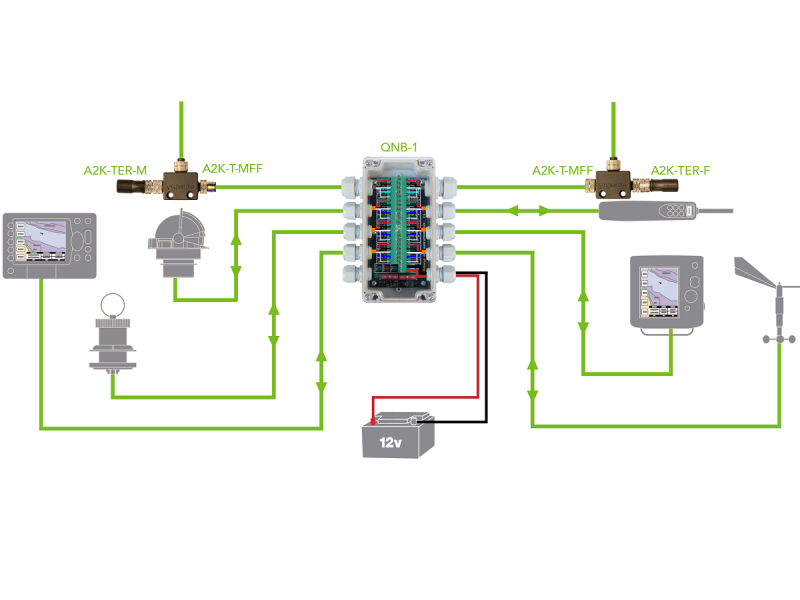

he QNB-1-PMW is perfectly suited to areas of high instrument density, such as engine bays, as six network drops can be connected.

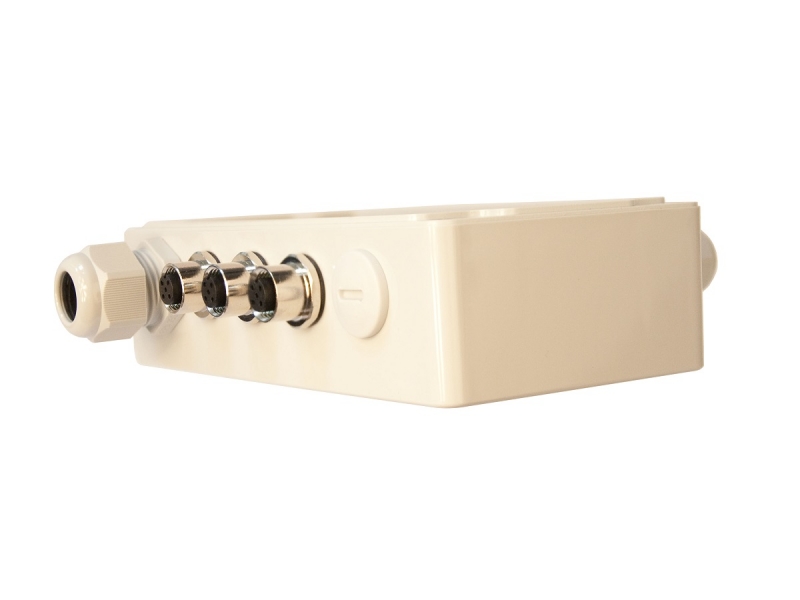

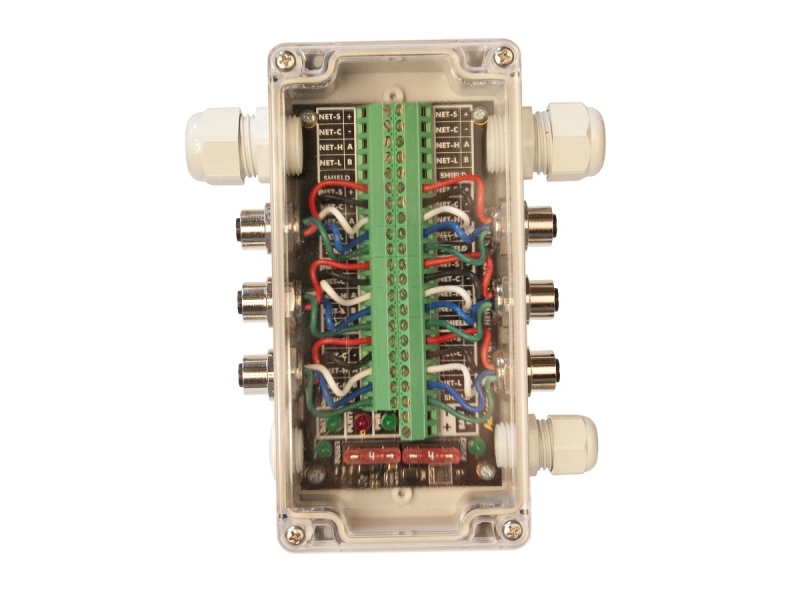

The QNB-1-PMW version is fitted with six standard NMEA 2000 M12 (Micro-fit) female connectors which allow 'plug and play' connections for quick and easy installation.

Benefits of the QNB-1-PMW versions:

• One unit provides six NMEA 2000 drops
• Power hook up is protected
• Simple installation on Mini and Micro networks

Technical Specifications

• Supply voltage: 10-35V
• Supply current (Supply voltage 12v - no load) @120 mWatts: 10 mA
• Supply current (Supply voltage 24v - no load): 10 mA

Power distribution

• Current rating - Micro cable fused protection: 8 A
• Current rating - Mini cable fused protection: 16 A

Input/Outputs

• Baud rate: 4800 – 250000 bps

General

• Ambient temperature: -20 to +70°C
• Warranty: Actisense 3 Year Warranty
• M16 gland clamping range (Cable diameters accommodated 6 glands): 4.5 – 10 mm
• M20 gland clamping range (Cable diameters accommodated 2 glands): 6 – 12 mm
