QNB-1 - NMEA 0183 / NMEA 2000 Quick Network Block

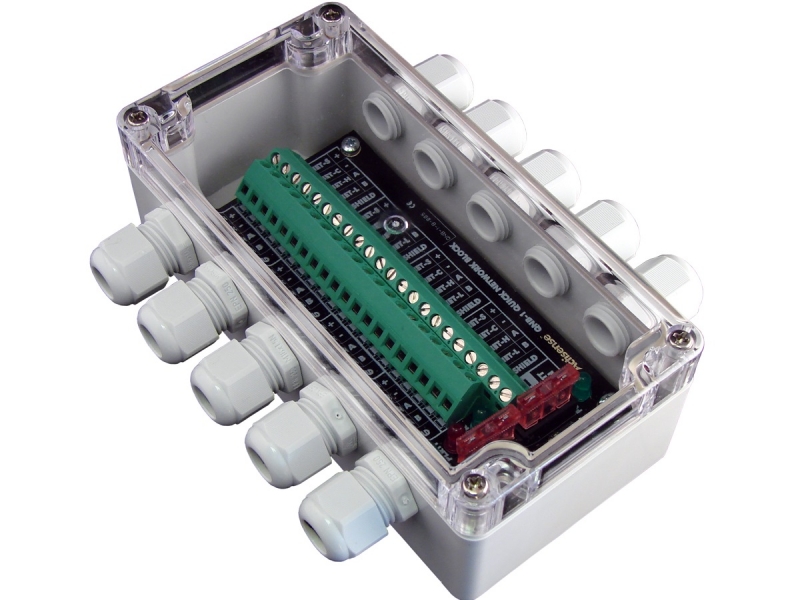

The QNB-1 is perfectly suited to areas of high instrument density, such as engine bays, as six network drops can be connected.

The QNB-1 can limit the current to the safe level for the network. The LEDs provide information for the installer during set up and use to indicate the presence of data, power status, power reversal and to show whether the fuses are intact.

Benefits of the QNB-1 versions:

• One unit provides six NMEA 2000 drops
• Power hook up is protected
• Simple installation on Mini and Micro networks

Technical Specifications

Supply voltage: 10-35V

• Supply current (Supply voltage 12v - no load) @120 mWatts: 10 mA
• Supply current (Supply voltage 24v - no load): 10 mA

Power distribution

• Current rating - Micro cable fused protection: 8 A
• Current rating - Mini cable fused protection: 16 A

Input/Outputs

• Baud rate: 4800 – 250000 bps

General

• Ambient temperature: -20 to +70°C
• Warranty: Actisense 3 Year Warranty
• M16 gland clamping range (Cable diameters accommodated 6 glands): 4.5 – 10 mm
• M20 gland clamping range (Cable diameters accommodated 2 glands): 6 – 12 mm
