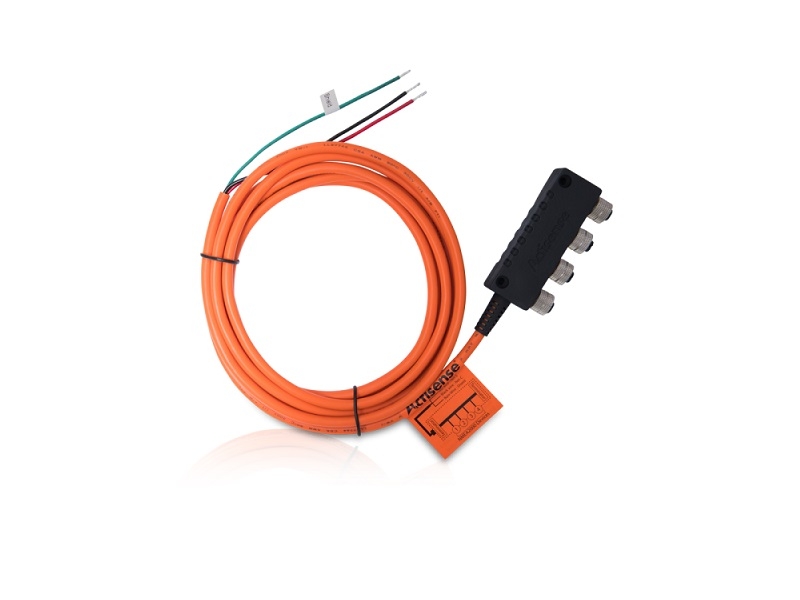

A2K-SBN-1 4-way self-contained boat NMEA2000 network

A complete NMEA 2000® backbone in a single device that allows the installation of small NMEA 2000 networks much quicker and easier than it’s ever been with the Self-contained Boat Network (SBN) from Actisense.

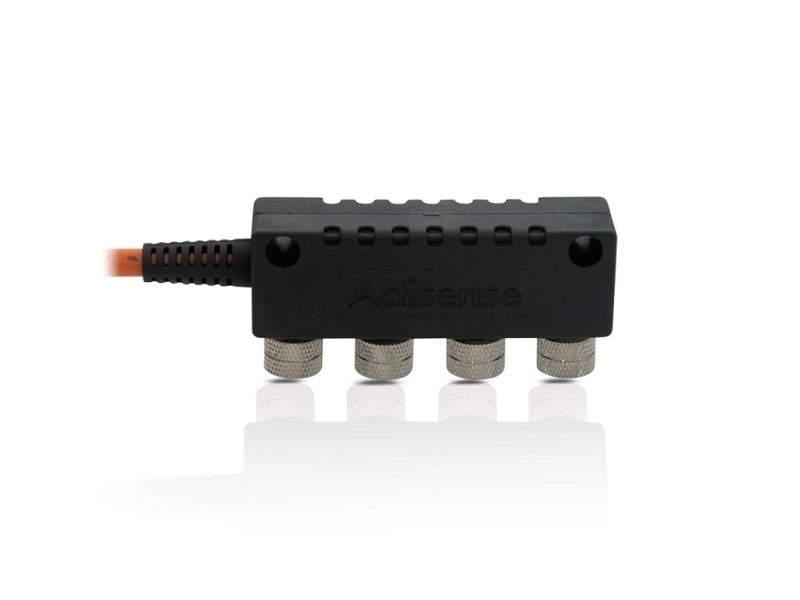

The equivalent of four T-pieces in a single case provides a significant time and space saving with no more connecting multiple T-pieces together. Termination resistors are built in which increases the saving on time and space.

Once the attached 3 metre cable is connected to the boats power supply, an NMEA 2000 network for up to four devices is ready to use, taking ‘plug & play’ to the next level.

Looking to have a network with more than four devices? Try our SBN-2 for up to 8 devices!

SPECIFICATIONS

Electrical

• Rated Current: 3 A
• Rated Voltage: 60 V (AC/DC)
• Rated Voltage: 2 * 121 Ω ± 1% 250Mw

Mechanical

• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarization: Standard M12 -“A”- polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber
• Housing: TPU, flame retardant to UL94V-0, Halogen Free
• Cable Jacket Material: 0.8mm Nom. PVC, orange
• Cable Outer Diameter: 6.8mm
• Cable Length: 3m
• Wire Length: 140mm (mm stripped)
• Wire Jacket: PVC
• Wires: 16 AWG (stripped and tinned)
• Drain: 3m
• Cable Shield: 3m
• Weight: 105g

Approvals and Certifications

• NMEA 2000 Approved
• RoHS Compliant
• Protection: IP67 (when mated)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• UL Certified (E129757)
