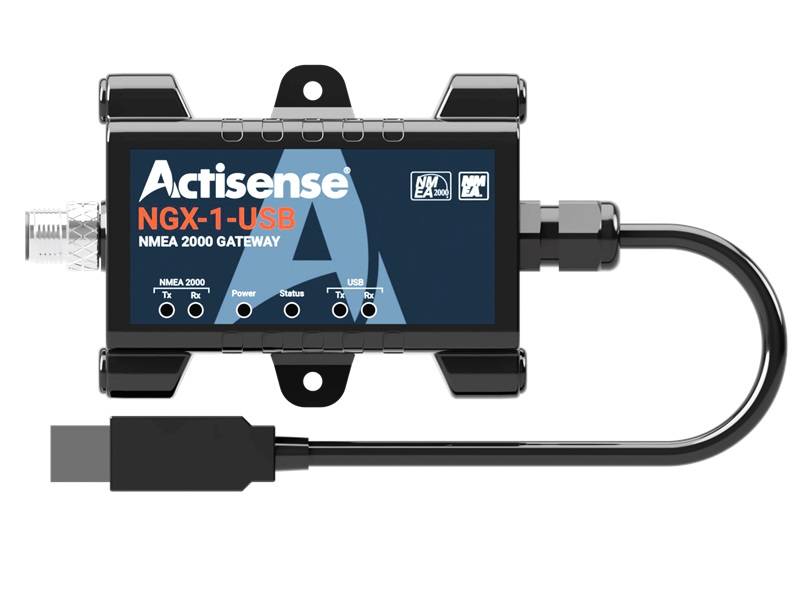

NGX-1-USB NMEA 2000 Dual Gateway

Full control and visibility of your vessel data using the NGX-1:

• View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
• View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
• Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
• Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
• Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.

FEATURES

• Vital NMEA 2000 diagnostic tool
• USB version is fully isolated to prevent dangerous ground loops
• Up to 230,400 baud data transfer rate
• Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
• Supports Fast Heading at 10Hz
• Multiple diagnostic LEDs

BENEFITS

• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
• Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
• Configure and flash-update Actisense products on the bus
• Upgrade NMEA 0183 equipment to NMEA 2000
• Allow NMEA 0183 devices to receive vital NMEA 2000 data
• Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
• Reliable, renowned bi-directional conversion engine
• Supports a wide range of conversions including AIS
• Easily configurable using Actisense Toolkit

SPECIFICATIONS

Power Supply (NGX-1-ISO / NGX-1-USB)

• Supply Voltage (NMEA 2000 Port): 9 to 30V DC
• Supply Current (NMEA 2000 Port): 62mA @ 9V DC
• Load Equivalent Number (LEN): 2

Power Supply (USB Variants)

• Supply Voltage (NMEA 2000 Port): 9 to 30V DC
• Supply Current (USB Host Port): 10mA @ 5V DC
• Supply Current (NMEA 2000 Port): 62mA @ 9V DC
• Load Equivalent Number (LEN): 2

NMEA 2000 Port (NGX-1-USB)

• Speed / Baud Rate: 250kbps
• Connectivity: M12 Male (A coded)

USB Port (USB Variant)

• Compatibility: USB 1.1, 2.0 and 3.0
• Speed / Baud Rate: 4800 to 230400 Baud
• Connectivity: Male type A plug moulded onto cable
• Cable Length: 1.8m

Isolation

• NMEA 2000 Port to USB Port: Galvanic Isolation, Hi-Pot tested to 1000V

Approvals and Certifications

• NMEA 2000: NMEA 2000 Certified
• NMEA 0183: Meets IEC 61162-1 & 61162-2 Requirements
• RoHS and REACH Compliant
• Module Certification: KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE
• EMC: EN 60945:2002 Edition 4 (section 9.3) | EN 301 489-1 V2.2.3 | EN 301 489-17 V3.2.4 | EN 300 328 V2.2.2 Radiated Spurious Emissions | FCC Part 15b | ICES-003 Iss 7
• Environmental Protection: IP67
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -30°C to +70°C
• Recommended Humidity: 0 to 93% RH @ 40°C
• Guarantee: 3 years, extended to 5 years upon registration
