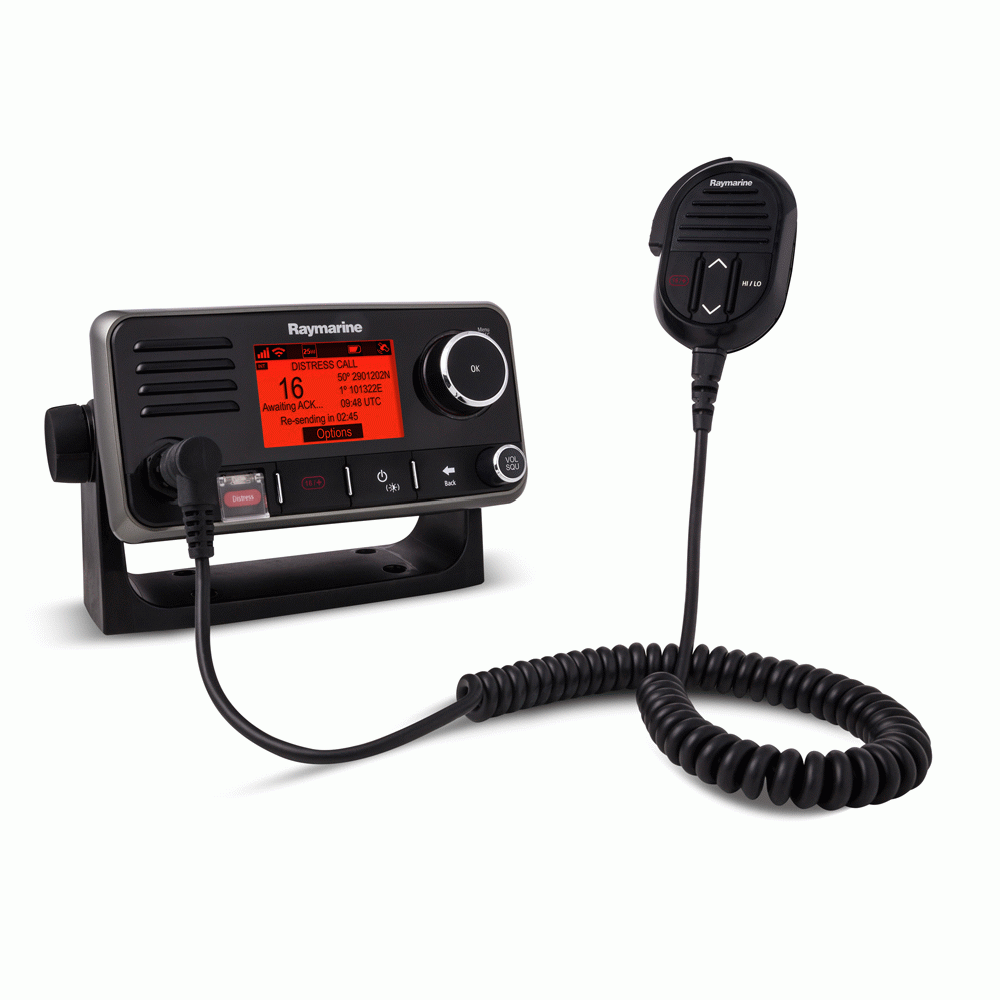

Ray60 - Fixed Mount Marine VHF Radio w/ Intercom Functions

The Ray60 is a full-sized VHF radio that is packed with essential communication features every boater needs. Add the optional handset accessory and you can use your Ray60 from 2 locations onboard the boat. The handset also enables intercom calling from station to station.

Full-sized, full-featured VHF Radio

The Ray60 VHF Radio has an oversized LCD display with intuitive menu and icons. It boasts a wide array of standard features including NOAA weather alert, dual-watch, tri-watch, scanning, selective scanning, and much more.

Key Features

• Dual station and intercom capable with optional handset Accessory
• Oversized LCD display for better viewing
• Detachable fist-mic with built-in controls and mic relocation capability
• Detachable gunmetal silver bezel and optional black bezel.
• Standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems

The Ray60's fist-mic has built-in controls for channel up/down, hi/low power selection, and instant access to channel 16 or another preferred channel. The fist-mic also features noise-cancelling technology so you'll always be heard loud and clear regardless of engine or background noise. Ray60's fist-mic is also detachable and can be connected from the front or rear for installation flexibility.

The Ray60 features standard NMEA2000 and NMEA0183 networking for simple connection to onboard systems and it integrates seamlessly with Raymarine LightHouse II multifunction displays for advanced DSC functions.

SPECIFICATIONS

PHYSICAL

• Dimensions including bezel (HxWxD): 88.5 x 168 x 173.75 mm
• Weight: 1.73 Kg

ENVIRONMENTAL

• Water Integrity: Complies with IPX6 & IPX7
• Complies with EN60945
• Operating Temperature Range: -20°C to 60°C
• Storage Temperature Range: -25°C to 70°C
• Humidity: up to 95%

ELECTRICAL

• Communications Port: NMEA 0183 (version 4.01); NMEA2000 (version 3.0)
• Nominal Supply Voltage: 12V DC. Reverse polarity and over voltage protected
• Operating Voltage Range: 9V DC to 16V DC
• Current Consumption: Less than 6A at High Power (13.6V)
• Standby: 600 mA
• Receive: 2 Amps

TRANSMITTER

• Channels: All available US, International and Canadian VHF marine bands
• Frequency Range: 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
• Frequency Stability: + / - 1.5 ppm
• Channel Spacing: 12.5 kHz
• Power Output: High Power = 25 Watt | Low Power = 1 Watt
• Spurious emission: Better than -36 dBm at 25W (Less than 0.25 µW)
• Maximum Deviation: +/- 5kHz
• Antenna port impedance: 50 ohms typical

RECEIVER

• Receiver Type: Double Conversion Super Heterodyne
• Channels: All available US, International and Canadian VHF marine bands
• Frequency Range 156.000 – 157.425 MHz | 155.500 to 161.425 MHz Private channels
• Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
• Squelch Sensitivity: Less than -2 dBµ EMF
• Hum & Noise: Better than -40 dB
• Audio Distortion: Less than 10%
• Receiver Sensitivity: Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical | Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
• Adjacent Channel Selectivity: More than 70 dB
• Spurious Response Rejection: More than 70 dB
• Inter Modulation Rejection: More than 70 dB

SPEAKERS

• Base Station Speaker Power Output: 2.5W (8Ω)
• Fistmic Speaker Power: 1W (16Ω)
• External Speaker Power: 5W (4Ω) / 2.5W (8Ω)
