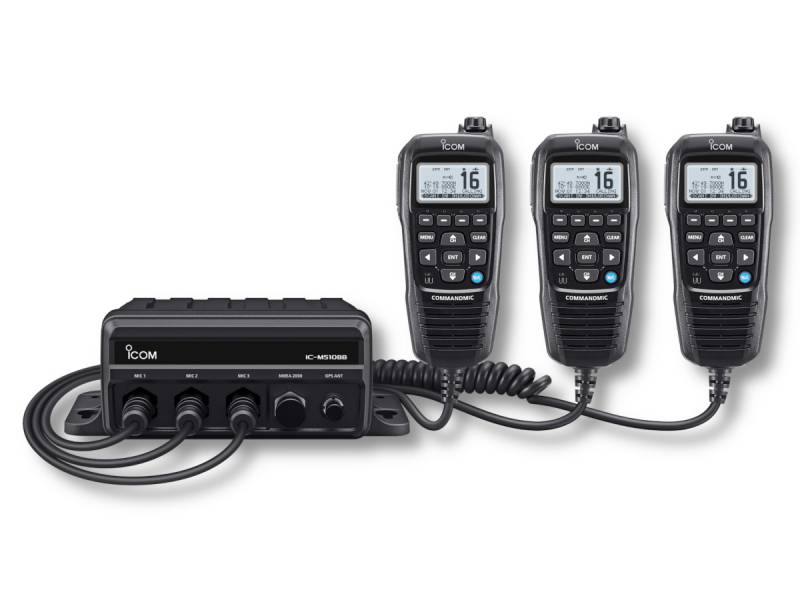

IC-M510BB Black Box VHF/DSC Transceiver with AIS Receiver

IC-M510BB Black Box VHF/DSC Transceiver with AIS Receive Facility

Built for marine professionals and enthusiasts demanding premium features, the IC-M510BB black box VHF radio offers unmatched integration and control. Its modular design features a core radio unit that installs discreetly, while providing the crucial advantage of an integrated AIS Receiver for enhanced vessel traffic awareness and collision avoidance. The powerful system supports up to three CommandMic™ stations and includes a two-minute voice recording function making it a versatile hub for sophisticated, multi-station communication.

* Please note that the IC-M510BB comes as standard with ONE Commandmic.

Space Saving Configuration for Limited Helm Space

The IC-M510BB features a multi-station, CommandMic and black box configuration. All operations, including DSC, can be made from the HM-195GB CommandMic, and the RF unit can be installed out-of-sight, up to 60 ft (18.3 m)* away from the CommandMic.

* Two OPC-1541 optional cables are required for 60 ft installation.

Install Up to Three Stations on Board

Up to three CommandMic stations can be used with the IC-M510BB allowing you to use VHF radio and intercom functions virtually anywhere on board. You can select one-to-all or one-to-one communication when using the Intercom function.

Built-in Class D DSC

With just a press of the "DISTRESS" button, the built-in DSC (Digital Selective Calling) system can transmit distress information digitally to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

Integrated AIS Receiver

The integrated AIS receiver helps you find ships heading toward your boat and alerts you of collision avoidance. You can make an individual DSC call to a selected ship from the AIS screens.

NMEA 2000 and NMEA 0183-HS Connectivity

NMEA 2000 network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, AIS, DSC call, and radio channel to other equipment.

Two Minutes Voice Recording Function

The last call voice recording function automatically saves up to two minutes of an incoming call. So, you won't miss any incoming messages.

DSC Remote Control Interface for PC Console Software (EN 300 338-8 Compatible)

The IC-M510BB has a dedicated DSC Remote Control (EN 300 338-8 Compatible) terminal, allowing connection to a PC console software or external device. You will be able to centralise emergency communications control.

Active Noise Cancelling Technology

The Active Noise Cancelling technology digitally removes background noise from both transmitted and received audio, providing clear communication in a noisy maritime environment.

Loud RX Hailer/Foghorn

A built-in 13 W amplifier increases the audio output to an external hailer speaker. The RX hailer function enables you to keep watch of radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.

Other Features

• IPX7 waterproof (1 m depth water for 30 minutes)
• Integrated GPS receiver
• AquaQuake function
• External speaker connection from the CommandMic cable
• Anchor Watch function

Supplied accessories:

• COMMANDMIC HM-195GB
• DC power cable
• GPS antenna
• Connection cable, OPC-1540


SPECIFICATIONS

GENERAL

• Frequency range

  • TX: 156.025–161.425 MHz
  • RX: 156.050–162.000 MHz
  • DSC: CH70: 156.525
  • AIS1, 2: 161.975, 162.025 MHz
• Usable channels: INT, ATIS (depending on the transceiver version, USA (Available depending on version)
• Type of emission: 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)
• Power supply requirement: 12.0 V DC nominal (10.8–15.6 V DC)(negative ground)
• Current drain (at 12.0 V DC)

  • TX Max Power: 5.5 A
  • RX AF max audio: 1.5 A (One CommandMic) | 4.5 A (Three CommandMic and RX Hailer)
• Operating temperature range: –20°C to +60°C
• Antenna impedance: 50 Ω (SO-239)
• Dimensions (W×H×D): 216×79×113 mm
• Weight (approx.): IC-M510BBE 890g | HM-195GB 400g
• NMEA in/out formats: RMC, GGA, GNS, GLL, DSC, DSE
• Ingress Protection Standard: Water IPX7 (Waterproof protection)

TRANSMITTER

• Output power: 25 W, 1 W
• Max. frequency deviation: ±5.0 kHz
• Frequency tolerance: ±0.5 kHz
• Spurious emissions: Less than 0.25 mW
• Residual modulation: More than 40 dB
• Adjacent channel power: More than 70 dB

RECEIVER

• Sensitivity:

  • FM (at 20 dB SINAD): Less than –2 dBμ emf
  • DSC (at 1% BER): –7 dBμ emf typical
• Adjacent channel selectivity:

  • FM: More than 70 dB
  • DSC: More than 73 dBμ emf (1% BER)
• Spurious response:

  • FM: More than 70 dB
  • DSC: More than 73 dBμ emf (1% BER)
• Intermodulation:

  • FM: More than 70 dB
  • DSC: More than 68 dBμ emf (1% BER)
• Audio output power (at 10% distortion, 4 Ω load): More than 2 W (HM-195B/SW) | More than 10 W (RX Speaker)
