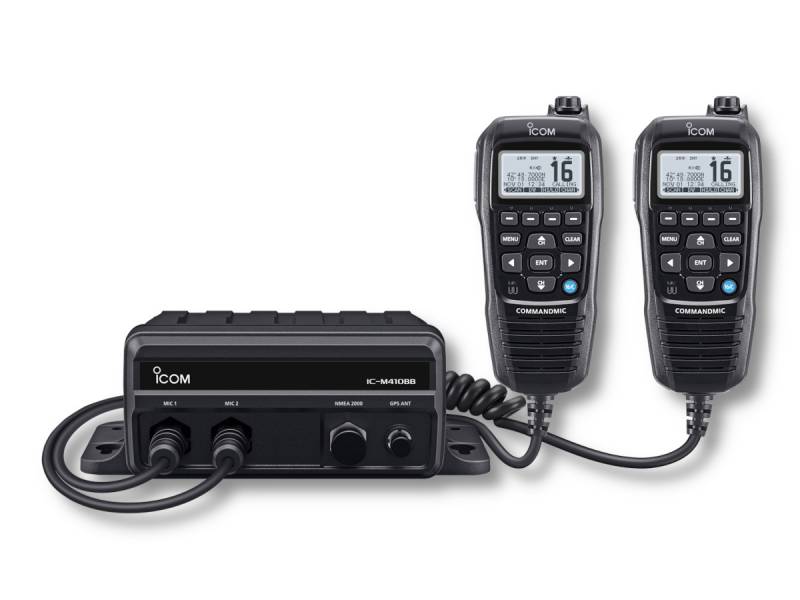

IC-M410BB Black Box VHF/DSC Transceiver

The IC-M410BB is a compact and powerful black box VHF/DSC radio designed to maximize space efficiency on any vessel. This modular system allows the central radio unit to be installed out-of-sight, with all operations controlled via the CommandMic™ from the helm. Supporting up to two remote stations for communication anywhere on board, the IC-M410BB provides essential Class D DSC safety, NMEA 2000 connectivity and Icom's Active Noise Cancelling technology for clear, reliable communication.

* Please note that the IC-M410BB comes as standard with ONE Commandmic.

Space Saving Configuration for Limited Helm Space
The IC-M410BB features a multi-station, CommandMic and black box configuration. All operations, including DSC, can be made from the HM-195GB CommandMic, and the RF unit can be installed out-of-sight, up to 60 ft (18.3 m)* away from the CommandMic.
* Two OPC-1541 optional cables are required for 60 ft installation.

Install Up to Two Stations on Board
Up to two CommandMic stations can be used with the IC-M410BB allowing you to use VHF radio and intercom functions virtually anywhere on board. You can select one-to-all or one-to-one communication when using the Intercom function.

Built-in Class D DSC
With just a press of the "DISTRESS" button, the built-in DSC (Digital Selective Calling) system can transmit distress information digitally to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

NMEA 2000 and NMEA 0183-HS Connectivity
NMEA 2000 network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, DSC call, and radio channel to other equipment.

Active Noise Cancelling Technology
The Active Noise Cancelling technology digitally removes background noise from both transmitted and received audio, providing clear communication in a noisy maritime environment.

Loud RX Hailer/Foghorn
A built-in 13 W amplifier increases the audio output to an external hailer speaker. The RX hailer function enables you to keep watch of radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.

Other Features

• IPX7 waterproof (1 m depth water for 30 minutes)
• Integrated GPS receiver
• AquaQuake function
• External speaker connection from the CommandMic cable
• Anchor Watch function

Supplied accessories:

• COMMANDMIC HM-195GB
• DC power cable
• GPS antenna
• Connection cable, OPC-1540

SPECIFICATIONS

GENERAL

• Frequency range

  • TX: 156.025–161.425 MHz
  • RX: 156.050–162.000 MHz
  • DSC: CH70: 156.525
• Usable channels: INT, ATIS (depending on the transceiver version, USA (Available depending on version)
• Type of emission: 16K0G3E (FM), 16K0G2B (DSC
• Power supply requirement: 12.0 V DC nominal (10.8–15.6 V DC)(negative ground)
• Current drain (at 12.0 V DC)

  • TX Max Power: 5.5 A
  • RX AF max audio: 1.5 A (One CommandMic) | 4.0 A (Two CommandMic and RX Hailer)
• Operating temperature range: –20°C to +60°C
• Antenna impedance: 50 Ω (SO-239)
• Dimensions (W×H×D): 216×79×113 mm
• Weight (approx.): IC-M410BBE 870g | HM-195GB 400g
• NMEA in/out formats: RMC, GGA, GNS, GLL, DSC, DSE
• Ingress Protection Standard: Water IPX7 (Waterproof protection)

TRANSMITTER

• Output power: 25 W, 1 W
• Max. frequency deviation: ±5.0 kHz
• Frequency tolerance: ±0.5 kHz
• Spurious emissions: Less than 0.25 mW
• Residual modulation: More than 40 dB
• Adjacent channel power: More than 70 dB

RECEIVER

• Sensitivity:

  • FM (at 20 dB SINAD): Less than –2 dBμ emf
  • DSC (at 1% BER): –7 dBμ emf typical
• Adjacent channel selectivity:

  • FM: More than 70 dB
  • DSC: More than 73 dBμ emf (1% BER)
• Spurious response:

  • FM: More than 70 dB
  • DSC: More than 73 dBμ emf (1% BER)
• Intermodulation:

  • FM: More than 68 dB
  • DSC: More than 68 dBμ emf (1% BER)
• Audio output power (at 10% distortion, 4 Ω load): More than 2 W (HM-195B/SW) | More than 10 W (RX Speaker)
