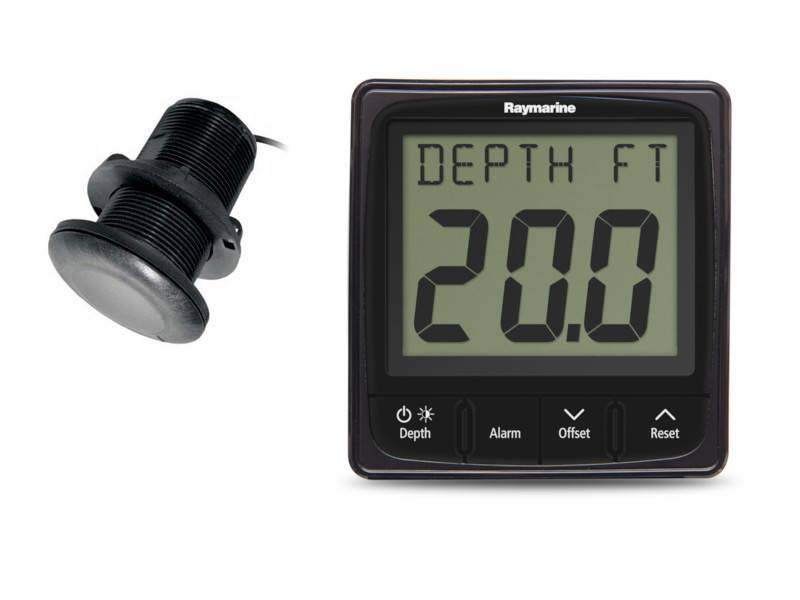

i50 Depth Pack, with P319 Depth Through Hull Transducer

The perfect solution for smaller power boats, yachts and rigid inflatables

The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features

• Large numerals and digits
• Red back lighting for enhanced night time visibility
• SeaTalk and SeaTalkng interfaces
• NMEA 2000 (compatible) interface
• Built-in transducer interface
• 110mm x 115mm footprint
• Low power consumption
• Multiple data source support eliminates potential data conflicts
• Front mounted design for simple installation

SPECIFICATIONS

• Nominal Voltage: 12V DC
• Operating Voltage Range: 10 - 16V DC
• Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
• Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
• Operating Temperature range: -20ºC to +55ºC
• Storage Temperature: -30ºC to +70ºC
• Relative Humidity: up to 93%
• Waterproofing standard: IPX6
• Connections: 2 x SeaTalkng and transducers
• Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC

P19 Through Hull Transducer

• Includes 13.7m / 45ft cable
• Frequency: 200 kHz
• Compatible hull material: metal & fiberglass
• Hole diameter for installation: 2"
Compatible Models
• ST60+
• i50
• ST70 / i70 (requires ST70 depth pod or ITC5 - sold separately)
