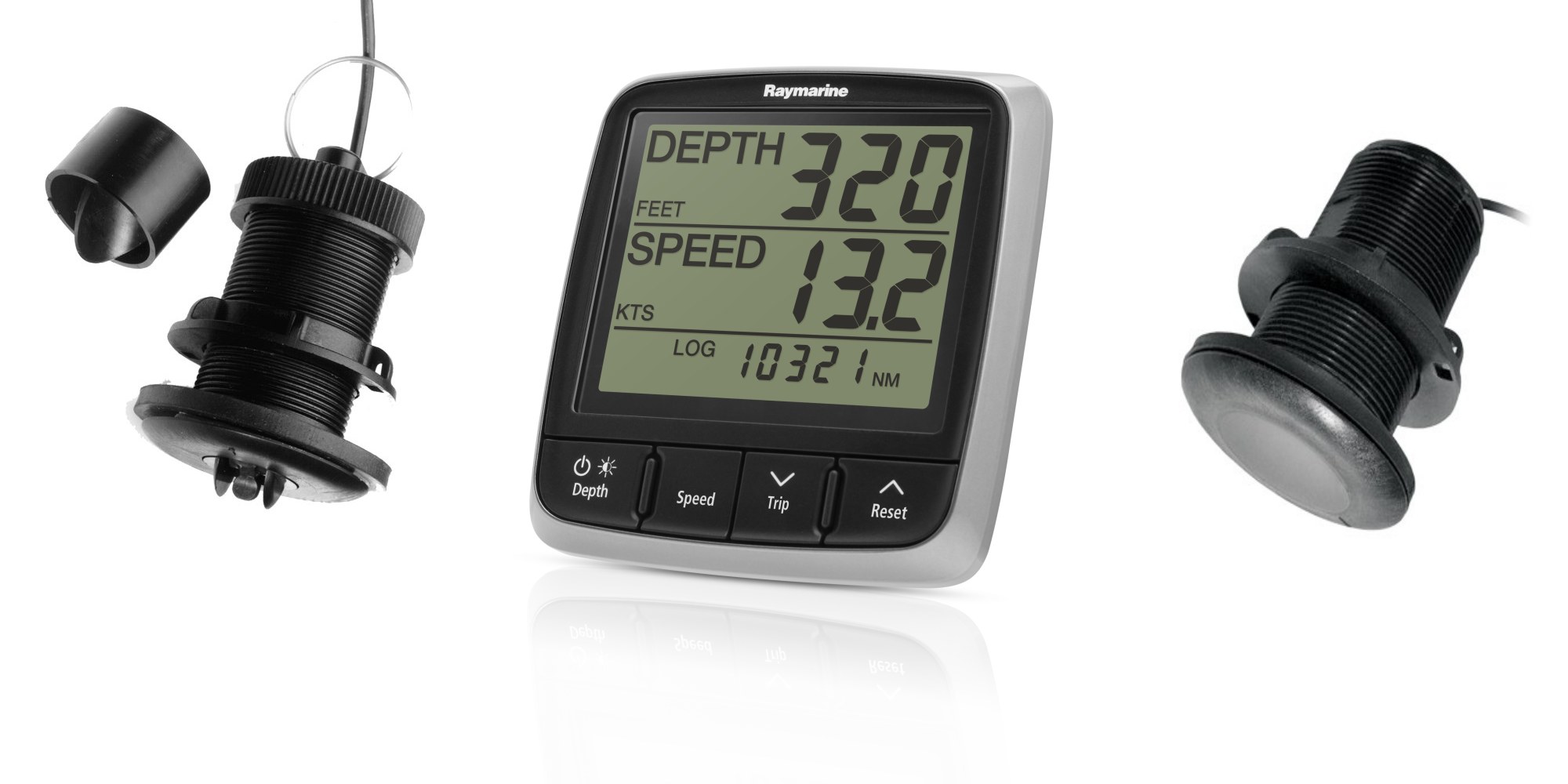

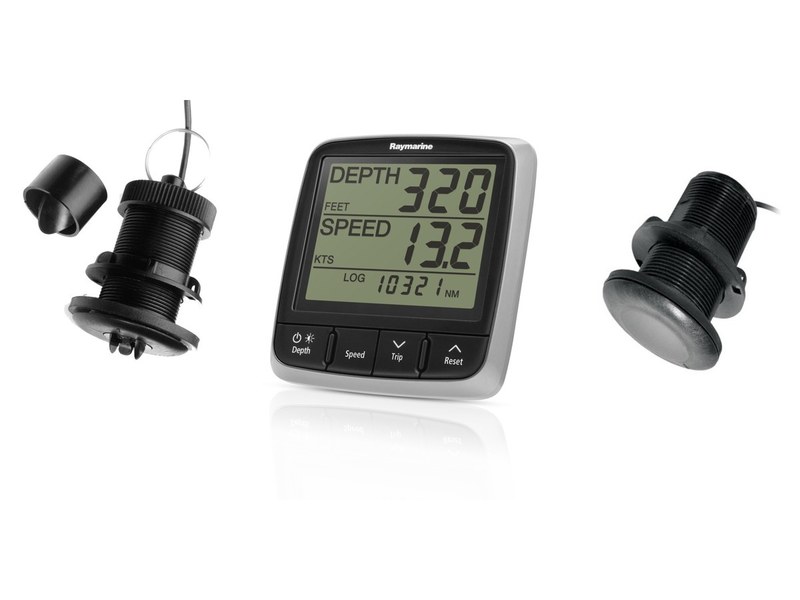

i50 Tridata Pack, with ST900/P120 & P319 Speed/Temp/Depth Through Hull Transducers

The perfect solution for smaller power boats, yachts and rigid inflatables

The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features

• Large numerals and digits
• Red back lighting for enhanced night time visibility
• SeaTalk and SeaTalkng interfaces
• NMEA 2000 (compatible) interface
• Built-in transducer interface
• 110mm x 115mm footprint
• Low power consumption
• Multiple data source support eliminates potential data conflicts
• Front mounted design for simple installation

SPECIFICATIONS

• Nominal Voltage: 12V DC
• Operating Voltage Range: 10 - 16V DC
• Power Consumption: typically <1W (display only) and 2.4W maximum with transducer connected
• Current Consumption: 45 to 65mA (display only) and 200mA maximum with transducer connected
• Operating Temperature range: -20ºC to +55ºC
• Storage Temperature: -30ºC to +70ºC
• Relative Humidity: up to 93%
• Waterproofing standard: IPX6
• Connections: 2 x SeaTalkng and transducers
• Compatible with marine industry CAN systems
• Conformance: Europe 2004/108/EC

P319 Through Hull Transducer

• Includes 13.7m / 45ft cable
• Frequency: 200 kHz
• Compatible hull material: metal & fiberglass
• Hole diameter for installation: 2"

Compatible Models

• ST60+
• i50
• ST70 / i70 (requires ST70 depth pod or ITC5 - sold separately)

ST900/P120 Through Hull Transducer

• Speed and temperature sensor only.
• Compatible hull material: aluminium and fiberglass
• Cable 20m cable with connector

Compatible Models

• ST40
• i40
• ST60+
• i50
• ST70 via Pod
• i70 via iTC-5
