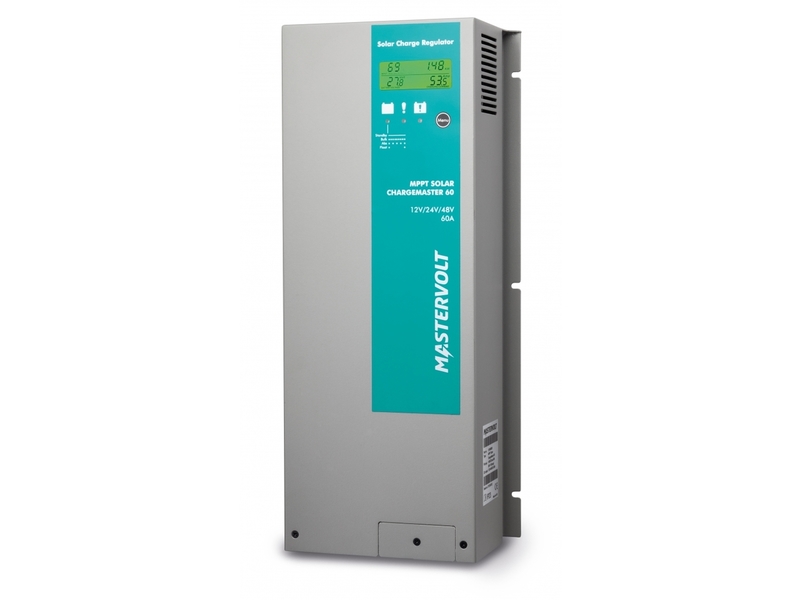

SCM60 MPPT – MPPT Solar Charge Regulator
SCM60 MPPT – MPPT Solar Charge Regulator

SCM60 MPPT – MPPT Solar Charge Regulator

€ Price on request (vat incl.)

€ Price on request (vat not incl.)

Manufacturer: Mastervolt

Part Number: 131906000

Our Ref.: 114136

The SCM60 MPPT is Mastervolt’s largest MPPT charge regulator, well suited to large and medium systems.

SCM60 MPPT

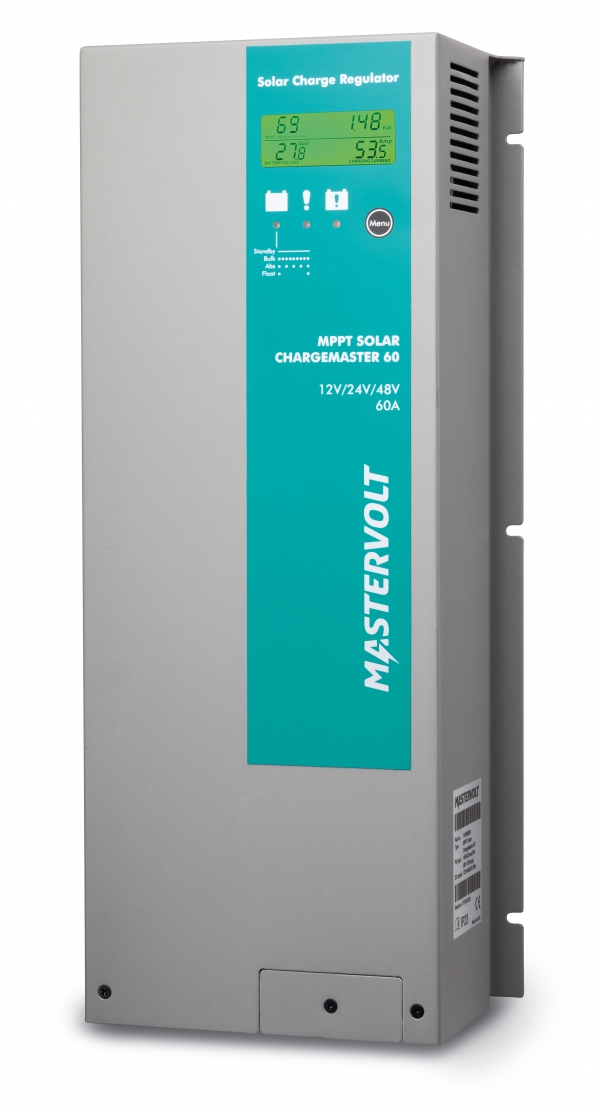

The SCM60 MPPT is Mastervolt’s largest MPPT solar charge regulator. With 600 to 3600 Wp in solar panels, connections for 12, 24 and 48-volt battery banks and an integrated MasterBus connection, this Solar ChargeMaster is perfect for large and medium-sized systems.

The innovative technology in the Mastervolt MPPT charge regulators increases the efficiency of the solar panels. The SCM60 MPPT-MB charges your batteries up to 30% faster than PWM regulators – with the same number of panels.

MPPT charge regulator for all solar panels

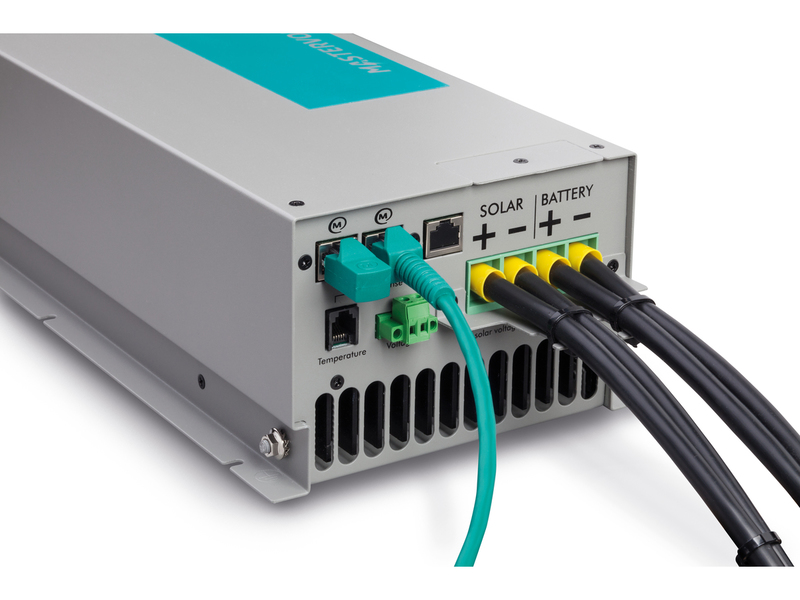

Besides the traditional 36 and 72-cell panels, the SCM60 MPPT-MB is also ideal for the inexpensive 60-cell panels. A maximum input voltage of 145 V makes it possible to connect several panels in series, reducing the required cable length, installation time and power loss significantly.

Robust, easy to use, safe and flexible
The SCM60 MPPT is suitable for all battery types, including Mastervolt Lithium Ion. The charging profiles for all types of batteries are pre-programmed and can be selected via the display or via MasterBus. The SCM60 MPPT is very quiet and equipped with a clear and user-friendly display. The built-in protection against overload, high/low battery voltage, overheating, short circuits and reverse polarity ensures that safety comes first. Moreover, the SCM60 MPPT has a sturdy casing and is protected against water spray in conformity with IP23.

The smart logic of MasterBus
The MasterBus platform brings advanced system functions within reach and makes it possible to follow a complete energy system on a single display. The intelligent one-cable system simplifies the cabling, allowing valuable savings in space and weight. What’s more, you can automate your systems and adapt them to your needs.

More comfort and independence
Use the power of MasterBus to switch on your water heater as soon as the battery is fully charged. Or link the Solar ChargeMaster via MasterBus to a Mastervolt Lithium Ion battery, removing the need for the disconnect relays usually required for this type of battery. The possibilities are endless.

FEATURES

  • Very high efficiency for faster charging.
  • Stable, accurate Mastervolt Maximum Power Point Tracker.
  • Up to 30% faster charging compared with PWM technology.
  • Suitable for inexpensive 60-cell panels.
  • Capacity for solar panel configurations from 600 to 3600 Wp.
  • Suitable for all battery types, including Mastervolt Lithium Ion.
  • Automatic 12/24/48 V detection.
  • Flexible charging characteristics.
  • Battery temperature sensor for long lifespan.
  • Large and bright display.
  • Secure switchable output.
  • Safe operation, audio signal in case of malfunctions.
  • Very quiet operation.
  • Robust casing, suitable for humid environments (IP23).

SPECIFICATIONS

GENERAL

  • Cooling: passive
  • Display/read-out: backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting
  • Grounding: (-) terminal
  • Alarms: via MasterBus
  • Protection degree : IP23
  • Dimensions, hxwxd: 398 x 168 x 104 mm
  • Weight: 5.5 kg

TECHNICAL

  • Technology: MPPT (Max. Power Point Tracker)
  • Temperature range (ambient temp.): -20 °C to 55 °C
  • Cable size: max. 10 mm² Litz wire
  • Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
  • Relative humidity: 95% non-condensing
  • MasterBus Compatible: yes

BATTERY CHARGER

  • Max. charge current at 40 °C / 104 °F: 60 A
  • System voltage (battery): 12/24/48 V auto select
  • Battery types: AGM, gel, wet, Lithium Ion
  • Battery temperature sensor: yes
  • Lithium Ion protection: via MasterBus connection
  • Switchable output (max. current): via MasterBus
  • Energy consumption (night): < 1 mA

SOLAR INPUT (DC)

  • Nominal PV current at 40 °C / 104 °F: 50 A
  • PV start voltage (12/24/48 V): 15 V/27 V/51 V
  • Nominal PV voltage (12 V): 13.2-115 V
  • Nominal PV voltage (24 V): 26.4-115 V
  • Nominal PV voltage (48 V): 52.8-115 V
  • Max. PV voltage (Tmin): 145 V
  • Max. PV power (12 V): 900 Wp
  • Max. PV power (24 V): 1800 Wp
  • Max. PV power (48 V): 3600 Wp
  • Max. efficiency: > 98 %
  • Static MPP efficiency: 99.9 %
