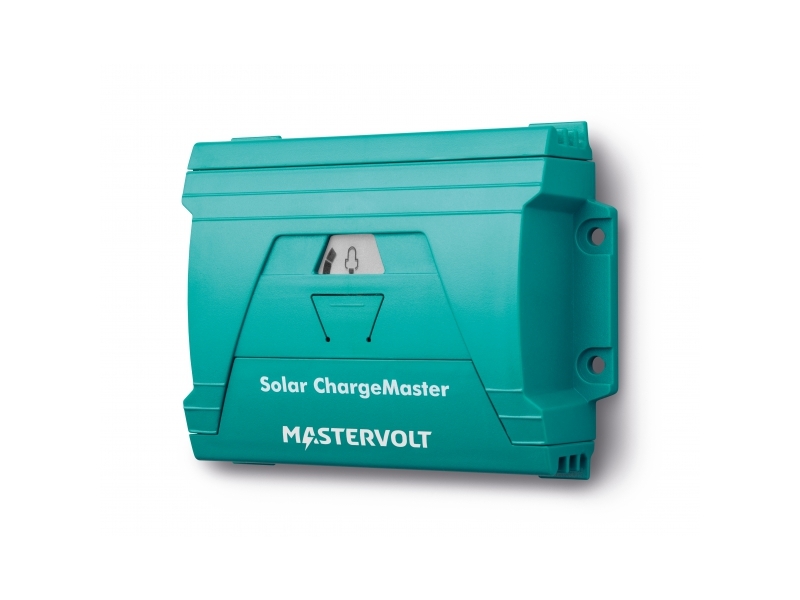

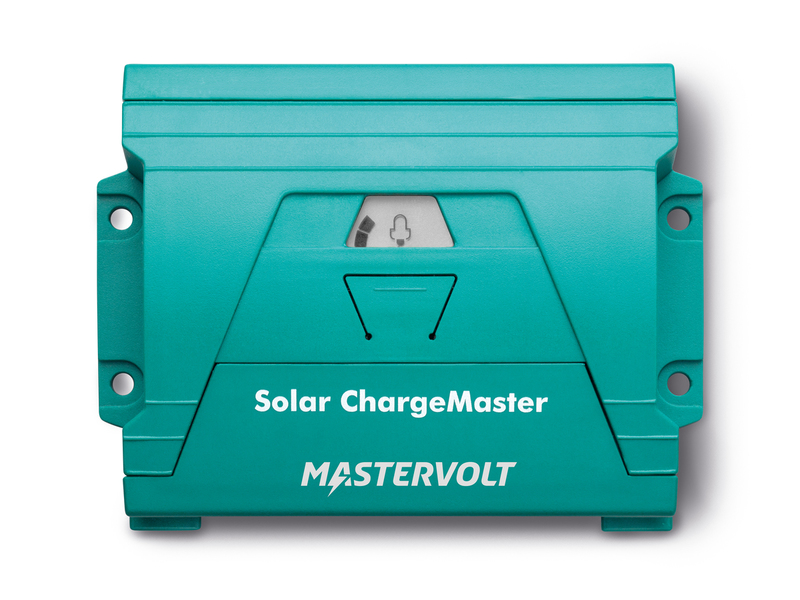

ChargeMaster Solar SCM-N 40 - 40A Solar Charge Regulator

FEATURES:

• High efficiency: your batteries are charged quickly.
• Capacity for solar panel configurations of up to 3600 Wp.
• Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries.
• Fast and flexible setting of battery type.
• Battery temperature sensor for long lifespan.
• Automatic 12 V and 24 V detection.
• Switchable output.
• Noiseless operation.
• LCD display.
• Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity.

SPECIFICATIONS

BATTERY CHARGER

• System voltage (battery): 12/24 V auto select
• Battery types: AGM, gel, wet, Lithium Ion
• Battery temperature sensor: yes
• Max. charge current at 25 °C / 77 °F: 40 A
• Switchable output (max. current): 40 A
• Energy consumption (night): 4 mA

SOLAR INPUT (DC)

• Nominal PV current at 25 °C / 77 °F: 40 A
• PV start voltage (12/24 V): 12.8 V/25.6 V
• Max. PV voltage (Tmin): 50 V
• Max. PV power (12 V): 720 Wp
• Max. PV power (24 V): 1440 Wp

COMMUNICATION & MONITORING

• Communication: PC-Link (optional)

GENERAL

• Cooling: passive
• Display/read-out: LCD display with battery state of charge, status output, battery setting
• Grounding: (-) terminal
• Alarms: buzzer
• Protection degree: IP20
• Dimensions, hxwxd: 98 x 140 x 41 mm | 3.9 x 5.5 x 1.6 inch
• Weight: 0.23 kg | 0.5 lb

TECHNICAL

• Technology: PWM (Pulse Width Modulation)
• Temperature range (ambient temp.): -25 °C to 50 °C | -13 °F to 122 °F
• Cable size: max. 16 mm² Litz wire
• Protections: over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity & HV transients
• Relative humidity: 95% non-condensing
