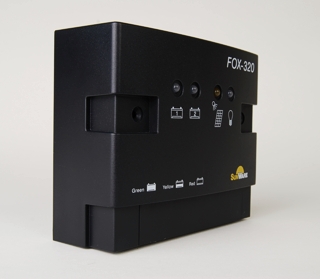

FOX-320 Solar Charge Regulator up to 20 A for 2 Battery Systems

The FOX-320 allows loading of two independent battery systems. By factory defaults 90% of the energy will go into battery 1 and 10% of the energy into battery 2. A load (consumer) connected to the terminals L+/L- will always be powered by the battery 1. Battery 2 is typically the starting battery or a battery backup.

Automatic 12V / 24V detection
The controller automatically detects the system voltage. The active back-current blocking device ensures reverse current protection and allows an extremely low voltage drop between the module and the battery.

Status Information

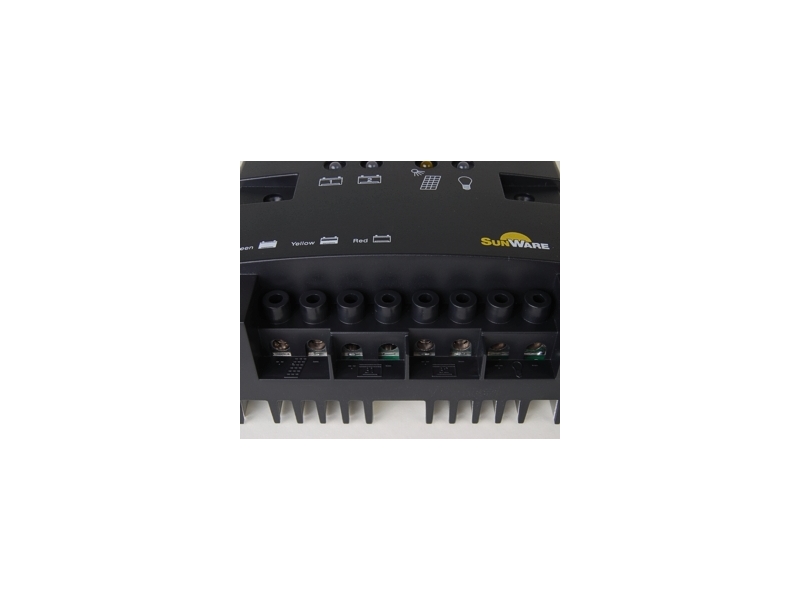

The LEDs at the front of the controller give information on the charging state of the battery, status of the consumer connection and whether a charge current is flowing from the modules or whether the battery is fully charged.

Discharge Protection
The adaptive total discharge protection monitors and protects the battery against damaging total discharge, and alternatively the nightlight function can be used. When using the nightlight function.

SPECIFICATIONS

• P Solar: 340 Wp
• I-Solar: 20 A
• I-Load: 20 A
• Dimensions (LxW): 107.0 x 126.0 mm
• Weight: 400g
