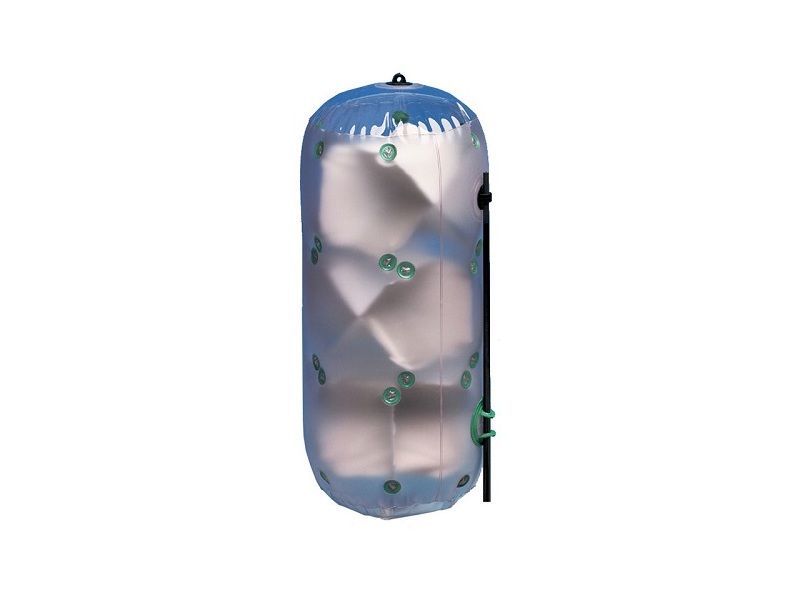

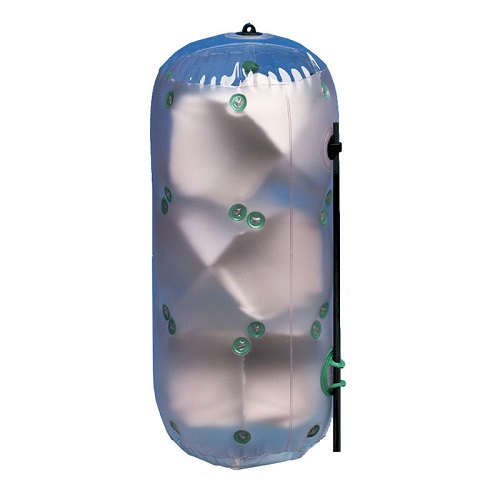

EM230I – Inflatable Passive Radar Reflector

EM230I DuPont metallized, lacquered and spunbonded fabric array with PVC case; folds down neatly to pocket size and is an ideal addition to the grab bag for emergency use. QinetiQ recorded an astonishing a maximum response of 25.6M2 - (SPL 4.1M2) exceeding the 10M2 WCC: ISAF: ORC and RORC requirements by two-fold.

With each product we supply a Certified QinetiQ Linear diagram in case required by the race scrutineers. Can be mounted from halyards or with optional three-piece glass fiber rod kit: Also suitable for dinghy or liferaft use.

Dimensions:

• Length: 750mm
• Weight: 413g
• Overall Diameter: 300mm: @+/-3°- 25.6M2 maximum response - SPL 4.1M2
• 3-piece 60 cm Glass fiber mounting kit: 247gms
• NB: The glass fiber rod fixing kit is an optional extra and is not supplied with the inflatable. A price for this set can be obtained from the dealer.
