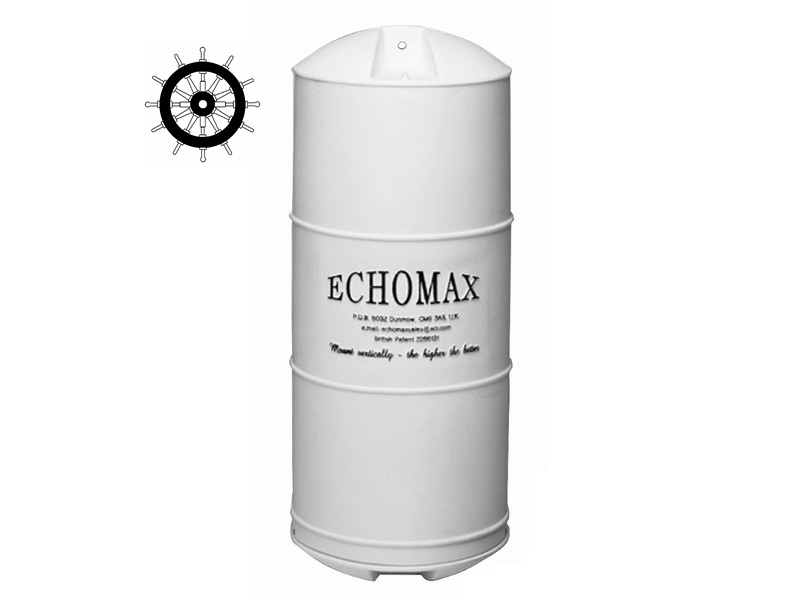

EM230 - Rigid Passive Radar Reflector

Suitable for vessels 9 meters and above. Robust Polyethylene case available in white, orange, yellow, red, green, or black. The EM230 model has been successfully tested by QinetiQ to ISO 8729-1999, and meets RORC, ORC, ISAF 2012/13 and WCC requirements of 10M2.

Echomax EM230 has now been allocated a NATO Stock No.5840-99-742-6193 following the adoption and use of the Echomax EM230 by the UK Military Forces and others throughout the World. Used by the US Navy for target and other uses.

The EM230 has Ships Wheel Mark certification for life boats and rescue craft as from December 2012 and copies of the BABT- TUV Module B certificate can be seen and downloaded from the Certificates section of this website.

Mast, halyard or deck bracket mount. Available in @+/-3°-24m² maximum - Stated Performance Level (SPL) +/- 3° 4.7m²

Specifications

• Dimensions: Height: 610mm | Width: 245mm
• Fixing Holes: 8mm
• Weight: 2.3kg
• Fixing Centres: 569mm
• NATO Code: 5840-99-742-6193
