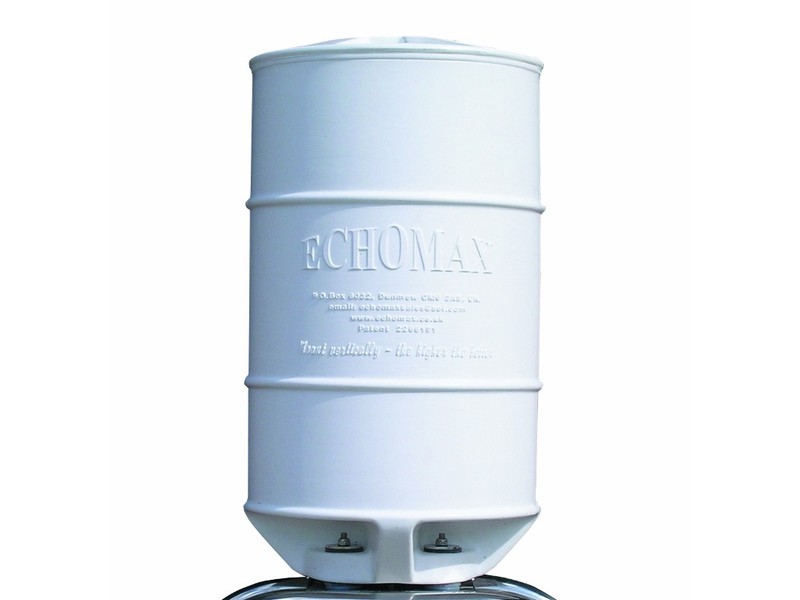

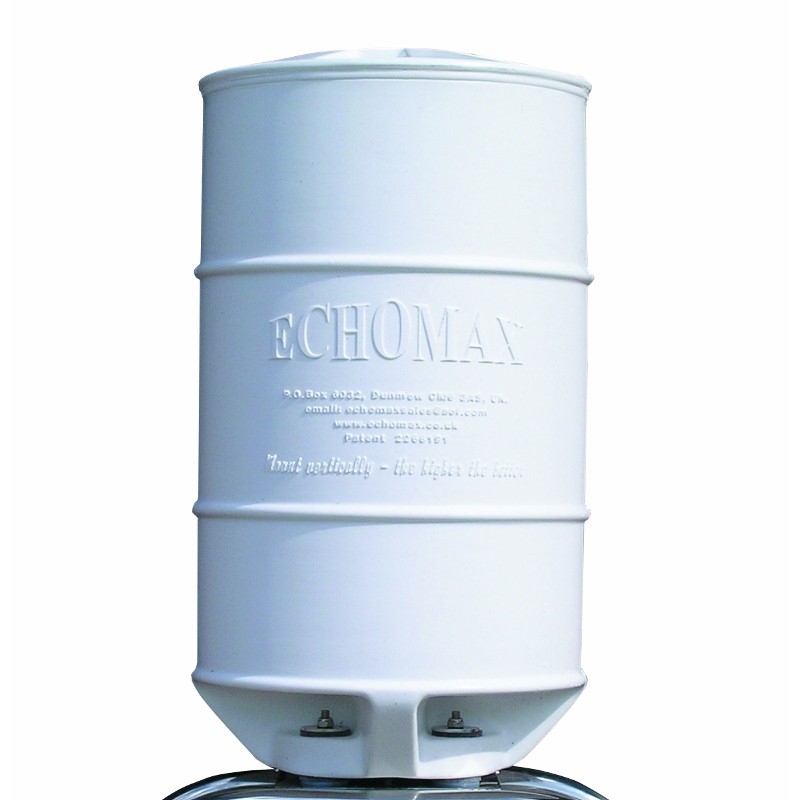

EM230 Midi – Rigid Passive Radar Reflector

The medium sized Echomax radar reflector with a maximum 20M2 radar cross section is suitable for 8-15 meters sailing yachts, RIBs and motor cruisers.

Suitable for mast, deck bracket or halyard suspension. Fully tested by QinetiQ. Exceeds RORC/ORC/WCC/ISAF requirement of 10M2.

Available in white, orange, yellow, red, green or black.

@+/-3°-20m² peak, 75% @2.5m², 100% @1.25m²

Dimensions:

• Height: 450mm
• Width: 245mm
• Fixing centres: 408mm
• Fixing holes: 8mm
• Weight: 1.9kg
