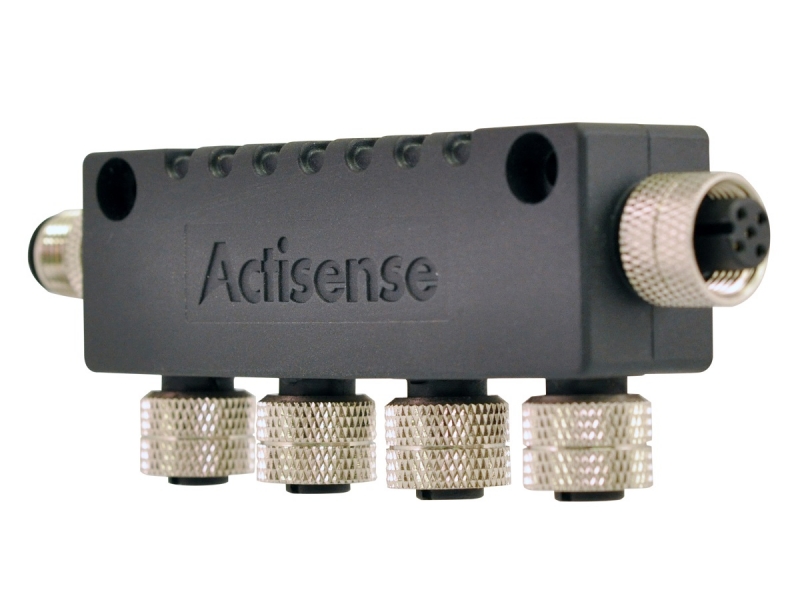

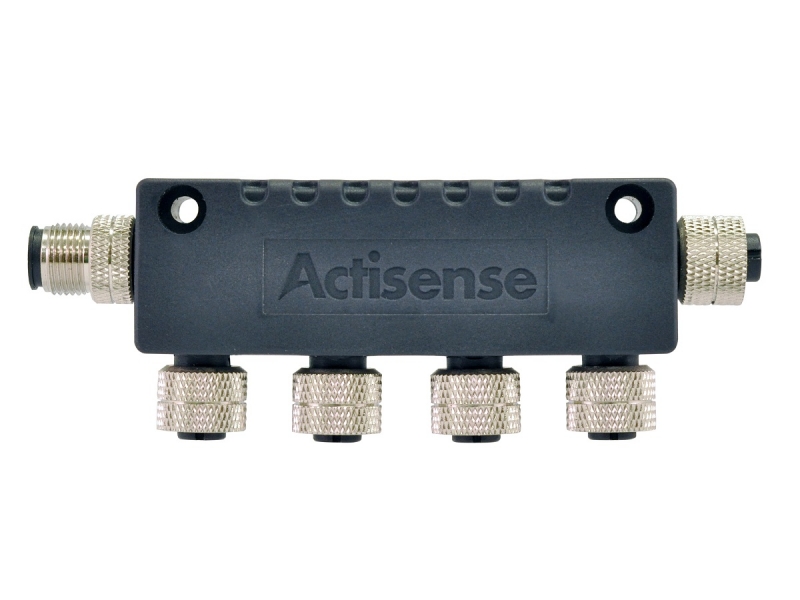

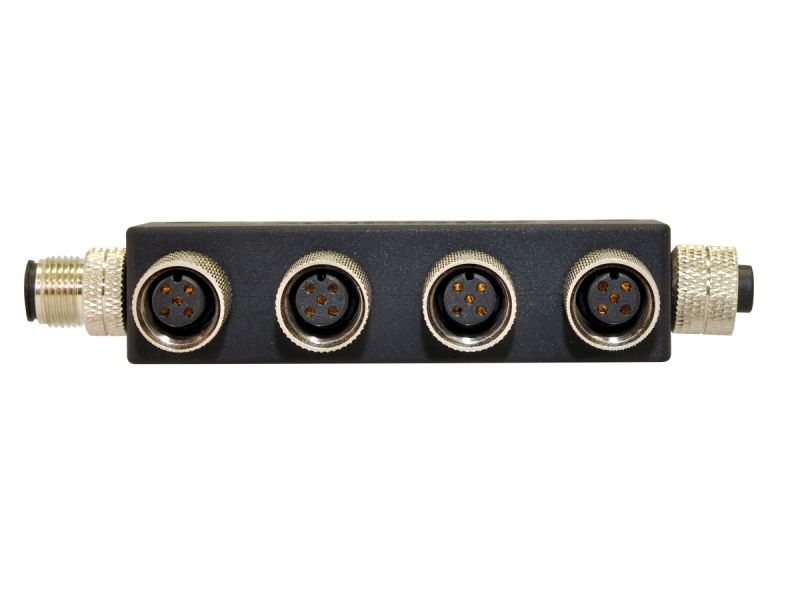

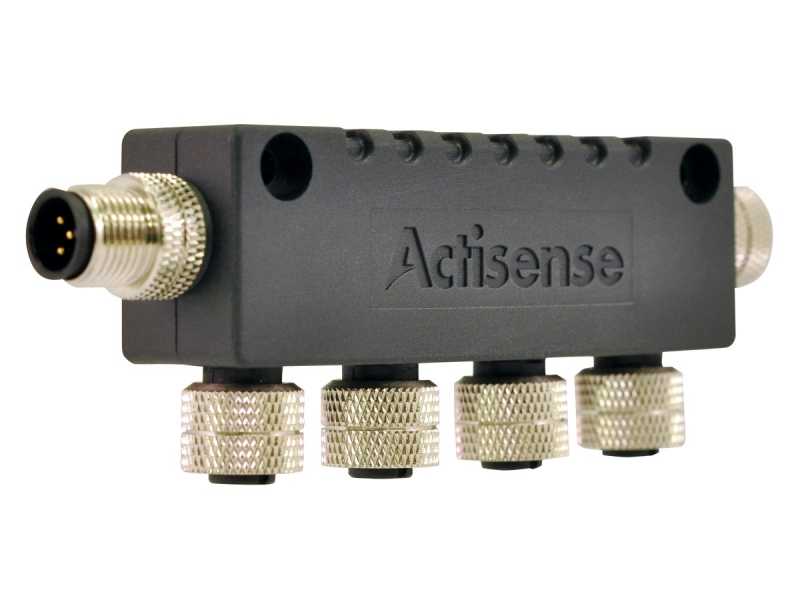

A2K-4WT - 4 Way Multidrop T Piece (Micro)

With five female and one male connector, the A2K-4WT can be easily connected to Actisense NMEA 2000® micro cable
assemblies, available in various lengths with UL certified cable for unbeatable quality.
All Actisense connectors follow the DeviceNet® standard.

Technical Specifications

Electrical

• Rated Current: 4 A
• Rated Voltage: 60 V (AC/DC)

Mechanical

• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarization: Standard M12 - "A" - Polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber
• Housing: TPU, flame retardant to UL94-V0
• Weight: 105g

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating Temperature: - 20°C to + 90°C
• Storage Temperature: - 40°C to + 85°C
• NMEA 2000 Pending
• RoHs Compliant
