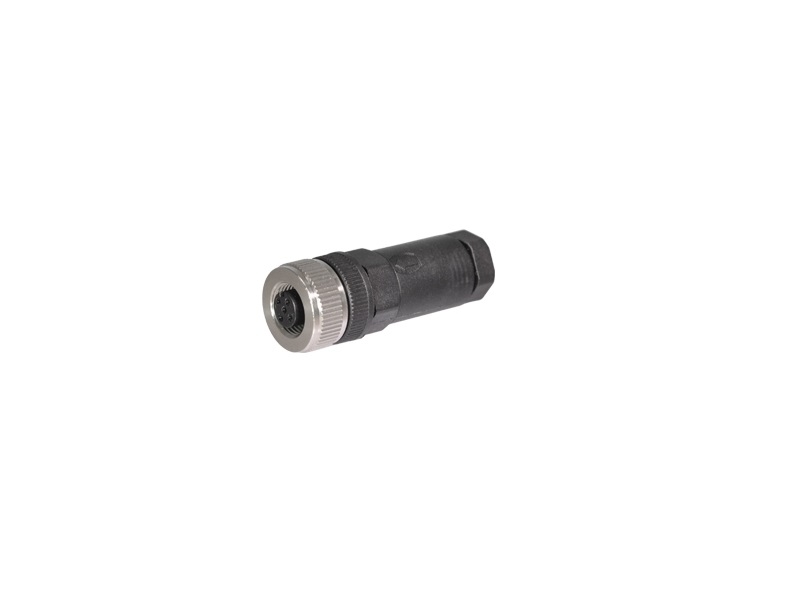

A2K-FFC-SF Field Fit Connector NMEA2000

SPECIFICATIONS

Electrical

• Rated Current: 4 A
• Rated Voltage: 60V

Mechanical

• Connector Contact: Brass, Gold plated
• Wire Gauge/Size: 22 AWG/0.34mm~
• Contact resistance: ≤ 5 mΩ
• Contact polarization: Standard M12 “A”
• Mating Thread: M12
• Connector screw: stainless steel
• Sealing gland size: PG9/6-8 mm Cable
• O-Ring seal: Rubber, black
• Connector insert: TPU
• Connector body: PA+GF, black
• Insulation resistance: ≥ 100 mΩ
• Weight: 26.5 g

Approvals & Certifications

• Protection: IP67 (locked condition)
• Ambient Temperature: -25ºC a +90ºC
• NMEA2000
• RoHS Compliant
• IEC 61076-2-101
