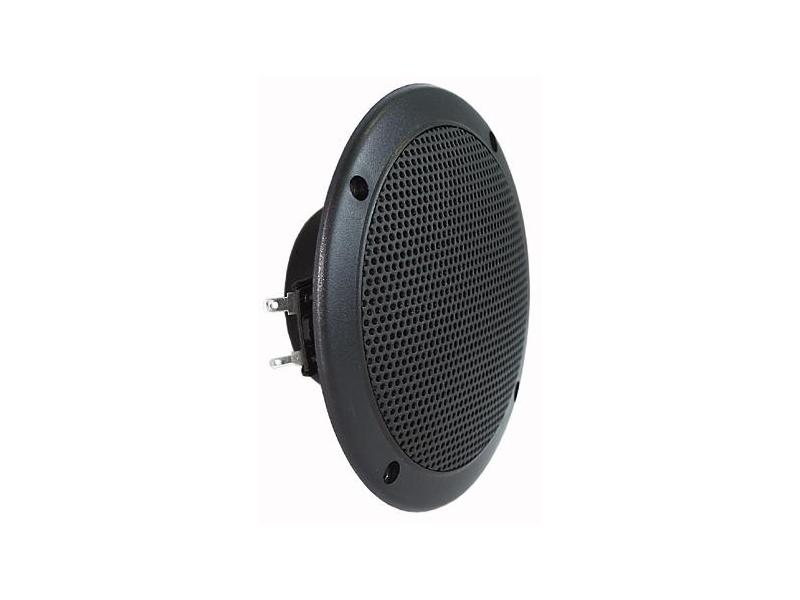

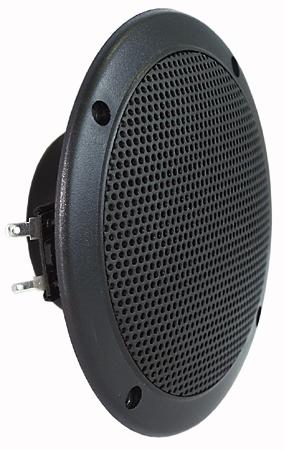

FR 13 WP – 4 Ohm, 5” Waterproof Black Speaker

Saltwater resistant 13 cm (5") full-range speaker with molded plastic cone, plastic basket and grille. Absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads. Clear-cut high-range output.

Typical applications

• Outdoor PA systems
• Loudspeaker for solariums and damp
• Boats, ships and open vehicles

Attributes

• Seawater proof
• Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
• Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
• Plastic: ASA (UL 94: HB; UV-/weather-proof)

Technical Data

• Rated power: 40 W
• Maximum power: 60 W
• Nominal impedance Z: 4 Ohm
• Frequency response: 70–16000 Hz
• Voice coil diameter: 20 mm
• Cutout diameter: 112 mm
• Net weight: 0.29 kg
• Colour: black
• Protective system: IP65
• Temperature range: −40 to 80 °C
