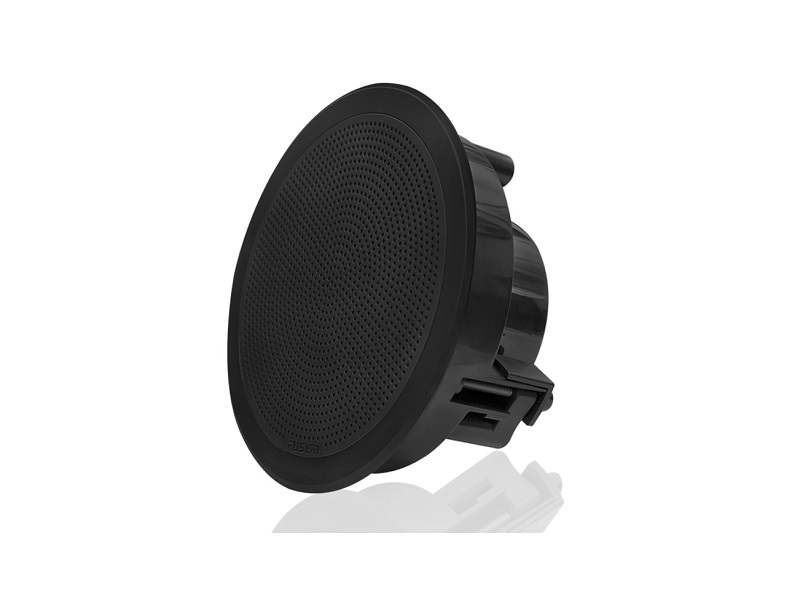

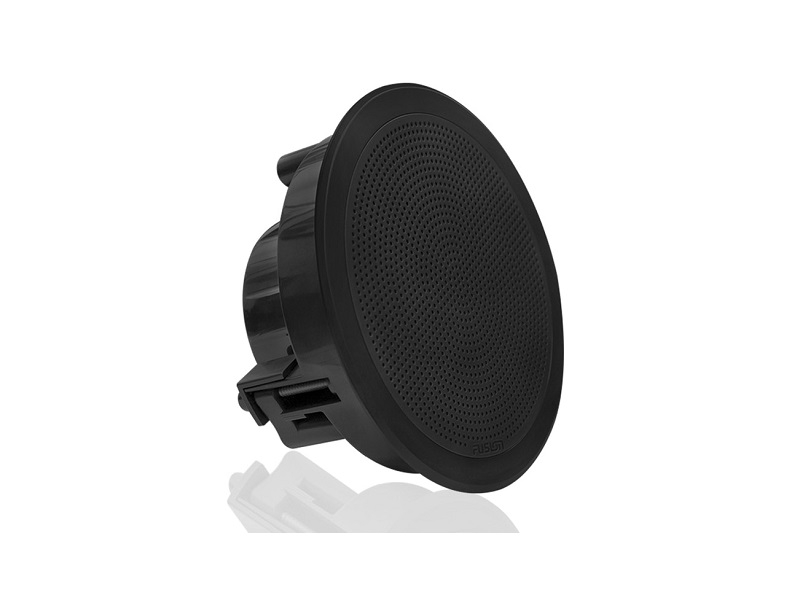

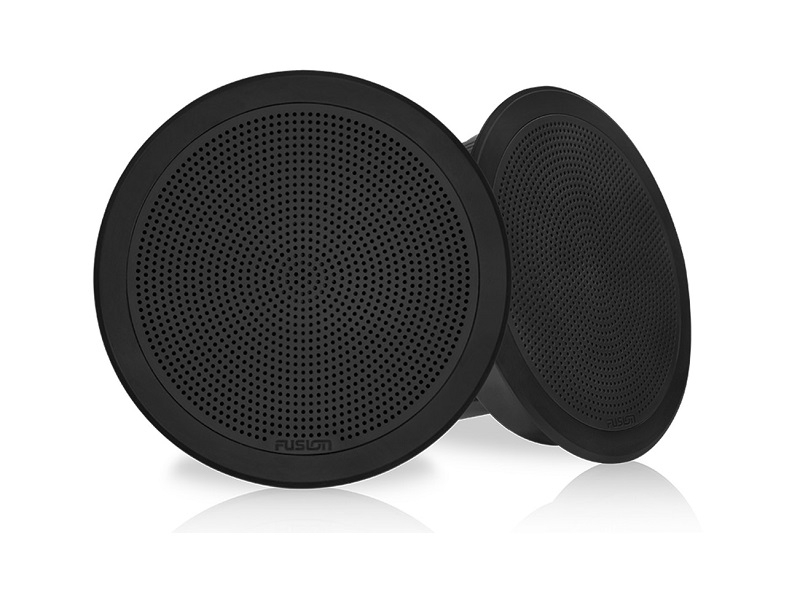

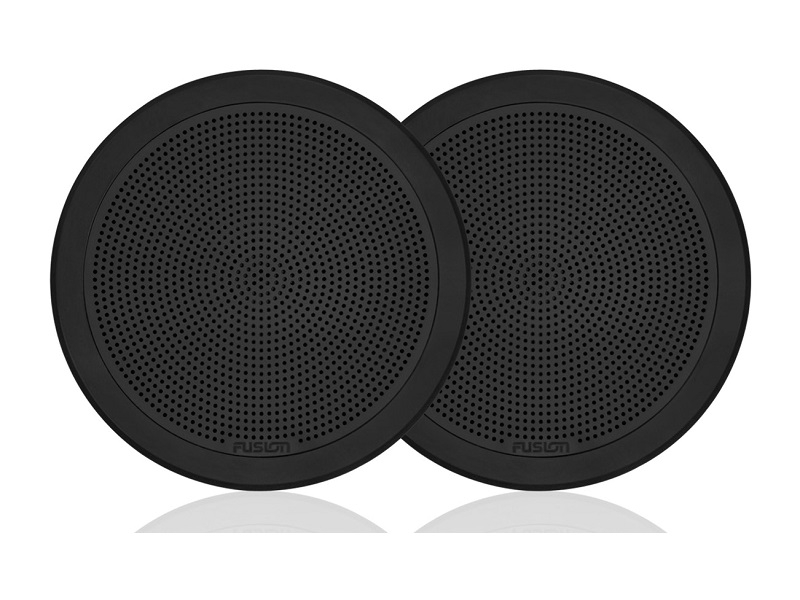

FM-F77RB - FM Series 7.7" 200-Watt Black Flush Mount Marine Speakers

€ Price on request (vat incl.)

€ Price on request (vat not incl.)

Manufacturer: Fusion

Part Number: 010-02300-01

Our Ref.: 117566

FM-F77RB are 7.7” 200W flush mount black marine speakers from Fusion’s FM Series, designed to deliver enhanced acoustics to your vessel.

Clear audio, clean aesthetics, all-class

Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion's new FM Series FM-F77RB flush mount marine speakers are designed to deliver enhanced acoustics to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.

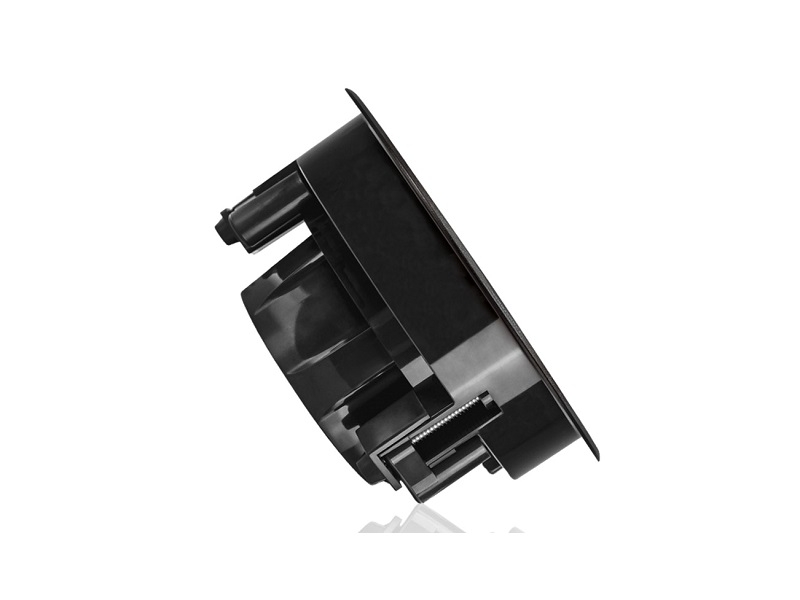

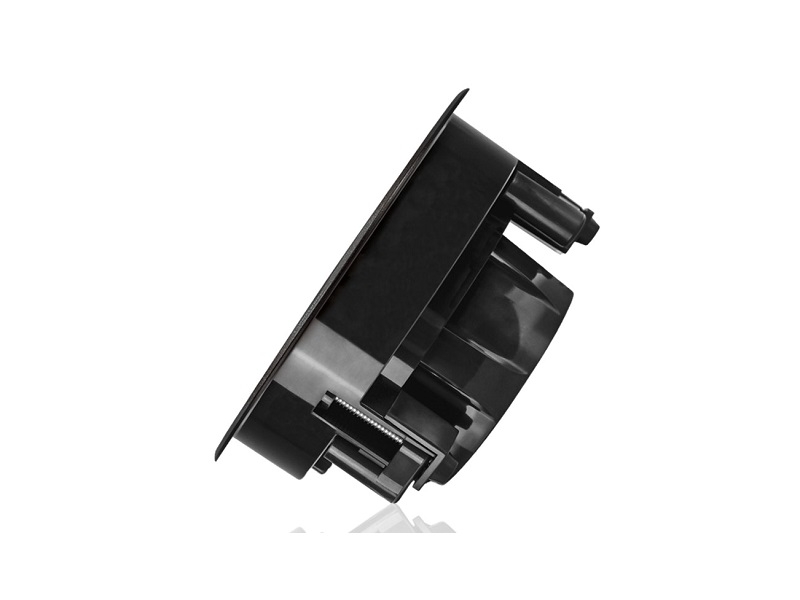

Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series FM-F77RB speakers are designed to be flush mounted with a mounting profile no thicker than 2.5mm [3/32"] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, True-Marine™ accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your FM Series FM-F77RB speakers are built to last on board season after season.

Features:

Optimized Full Range Speaker: The FM Series FM-F77RB speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and aluminum dome tweeters to produce quality sound at all volumes.

Innovative Design Aesthetics: Designed with a low profile, near-flat installation for a visually appealing finish, the FM Series FM-F77SB speakers will complement the aesthetics of any vessel.

Non-Intrusive Mounting System: The FM Series FM-F77SB uses 'speaker legs' that keep the speaker in place without creating any screw holes to your vessel.

True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the FM Series carry an IP65 weatherproof rating along with True-Marine accreditation.

Designed to Comply with ISO12216: Tested to international standards for pressure and water tightness, it recognizes the FM Series FM-F77SB are designed and built to the highest industry standards for quality and robustness.

SPECIFICATIONS

  • Speaker Size: 7.7"
  • Peak Power: 200 Watts
  • RMS Power Rating: 50 Watts
  • Efficiency (1W/1M): 91 dB
  • Frequency Response: 80 Hz - 18 kHz
  • Nominal Impedance: 4 Ohms
  • Recommended Amplifier Power (RMS): 20 - 150 W/Ch
  • Tweeter Type: Aluminum dome
  • Cone / Surround Material: Polypropylene with rubber surround
  • Mounting Diameter Clearance: 165 mm
  • Mounting Depth Clearance: 83mm
  • Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material): 8L
  • Operating Temperature Range: 0 to 50°C (32 to 122°F)
  • Storage Temperature Range: -20 to 70°C (-4 to 158°F)
  • Water and Dust Resistance (IPX rating): IP65
  • Warranty: 3 years
