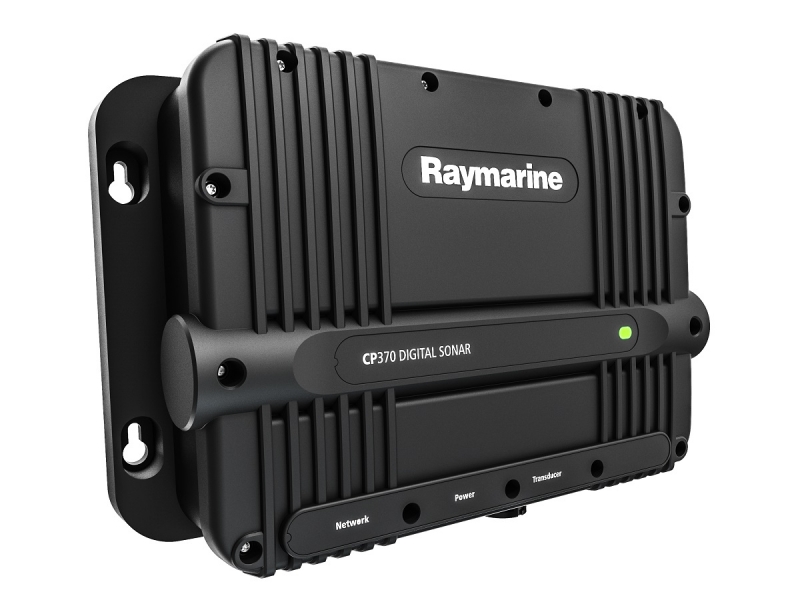

CP370 ClearPulse - Digital Sonar Module

The CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine’s next-generation ClearPulse™ digital sonar processing. The CP370 boasts up to 1,000 watts of power and operates at 200 kHz for inshore and 50kHz for offshore fishing. ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.

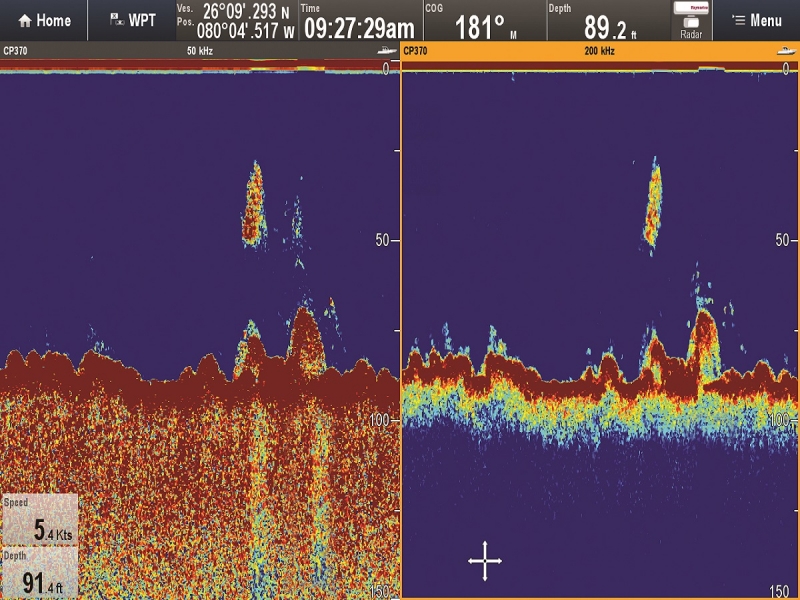

SHARPER, CLUTTER-FREE TARGETS

• Smarter target intensity controls reveal bait and game fish with exceptional clarity
• Enhanced digital filtering reveals fish targets through the entire water column
• Spend less time looking for fish and more time fishing. CP370 takes the guesswork out of interpreting the sonar display.

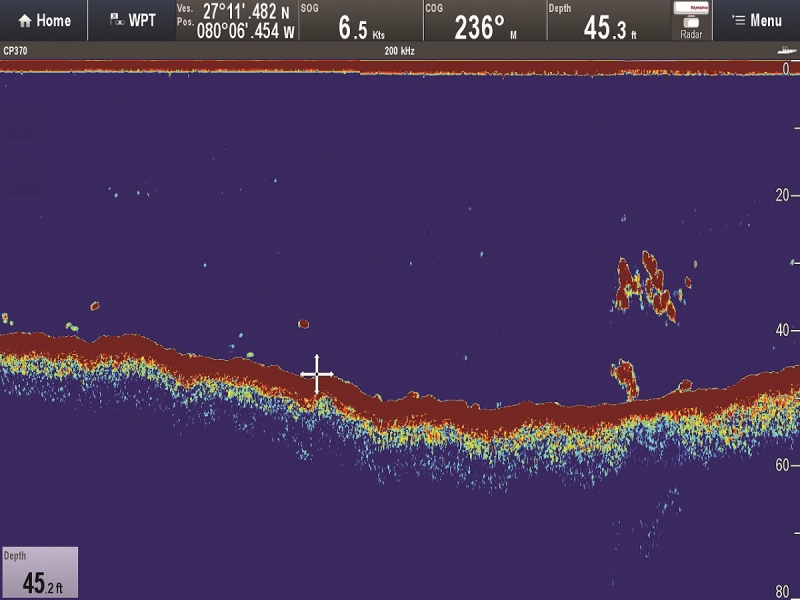

ACCURATE BOTTOM TRACKING

• Track the bottom in extreme conditions with advanced ClearPulse™ signal processing.
• New and improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons.

SPECIFICATIONS

• Sonar Type: Digital
• Power: 600W / 1000W Depending on transducer
• Frequency & Channels: Fixed frequency 50KHz and 200KHz channels
• Depth Range: 5000ft. (1,500m)
• Signal Processing: ClearPulse™ automatic noise filtering and auto sensitivity control
• Zoom: Yes. Standard Zoom
• Waterproofing Standard: IPX6 Waterproof
• Compatibility: aSeries | cSeries | eSeries | New eS Series | gS Series | C-Widescreen | G-Series- Classic | E-Classic | E-Widescreen
• Nominal Supply Voltage: 12/24 V DC
• Power Consumption: 30.6W (Maximum)
• Connections: Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
• Weight: 3.16lbs (1.435kg)
