CP100 - CHIRP DownVision Sonar Module

UNDERWATER VISION

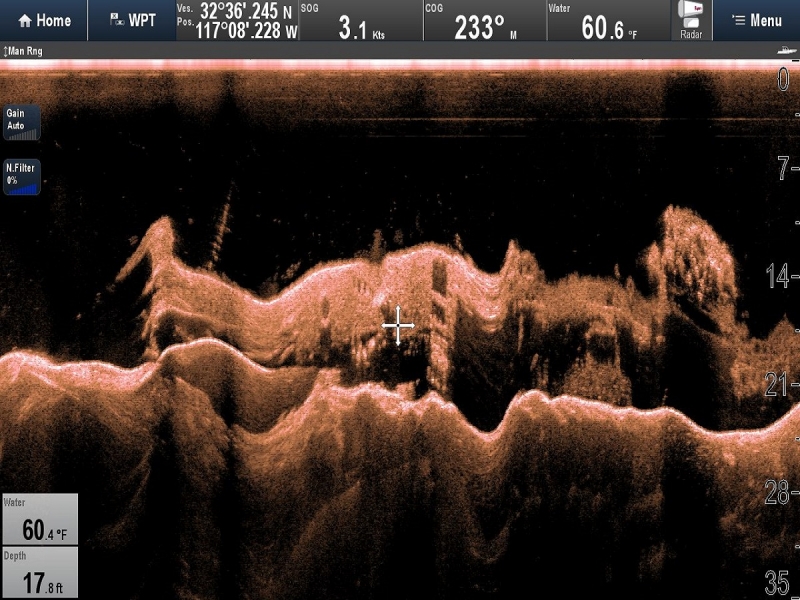

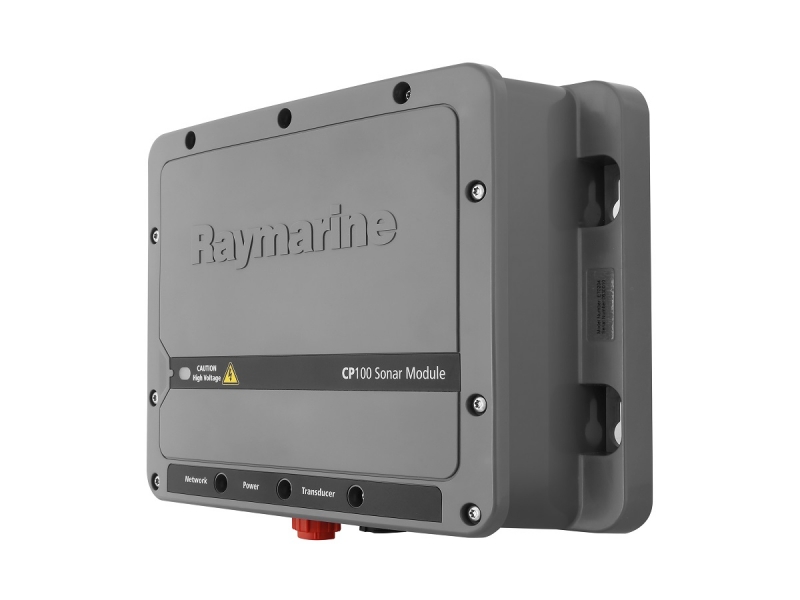

The CP100 network sonar module brings CHIRP DownVision technology to Raymarine’s multifunction displays. CP100’s CHIRP DownVision delivers a photo-like view of the world beneath your boat, allowing you to image bottom structure with amazing detail and target fish simultaneously.

WIDE SPECTRUM CHIRP TECHNOLOGY
Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses
CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse – the result is much higher resolution, photo-like sonar images.

KEY FEATURES:

• Photo-like images of bottom structure with CHIRP DownVision
• Dual-channel; view high resolution CHIRP DownVision structure images and target fish with CHIRP sonar at the same time
• Network with Raymarine’s latest multifunction displays. From the aSeries to the flagship gS Series the CP100 brings underwater vision in resolutions up to 1280 x 800 pixels
• Perfectly matched dual-beam CHIRP transducers available in transom mount, plastic and bronze thru-hull configurations

FRESHWATER FISHING

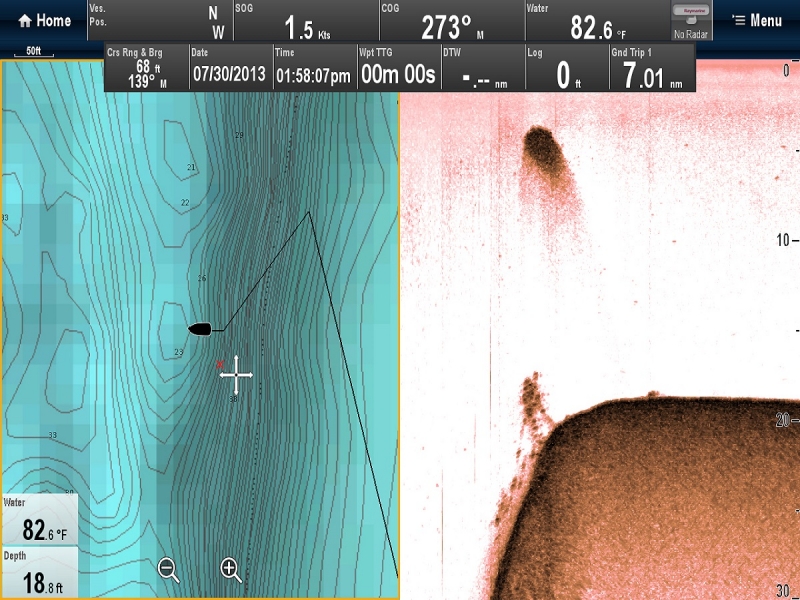

CP100 is ideal for freshwater anglers. Combined with Raymarine eSeries HybridTouch displays, the CP100 lets freshwater anglers create a multidisplay network with HybridTouch control. Photorealistic
CHIRP DownVision™ easily identifies the habitat of bass and other fresh water species.

COASTAL FISHING
With depths down to 183m (600ft) for DownVision and 277m (900ft) conical, CP100 is perfect for coastal and bay fishing. View wrecks with unmatched clarity and use the second CHIRP channel to target bait and predators.

SPECIFICATIONS

• Compatible with: aSeries, cSeries, eSeries, the New eS Series and gS Series
• Sonar type: CHIRP
• Nominal supply voltage: 12/24V DC Systems
• Operating voltage range: 10.2 - 32 V DC
• Power consumption at full power: 3 Watts
• Operating temperature range: 0ºC to +55ºC
• Storage temperature range: -30ºC to +70ºC
• Waterproofing standard: IPX6 and IPX7
• Connections: Power (power cable), transducer (9 pin connector), and Raynet network connector
• Transducer info: Max depth DownVision - 600ft, CHIRP - 600ft.

To download the files simply click on the desired files to select and then click the Download button at the bottom .
