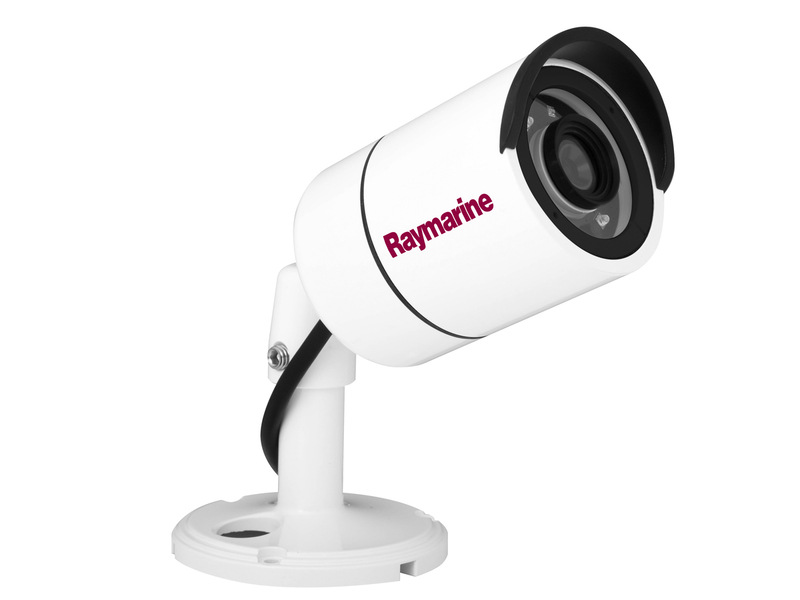

CAM210 IP – Day & Night IP Marine Camera (bullet)

Ruggedized, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

Key features:

• Plug and play integration with Raymarine MFD’s running Lighthouse II
• Power over Ethernet (PoE) or direct 12v DC power supply
• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
• Intelligent IR technology for clear video images at night in all conditions

SPECIFICATIONS

System

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB

Camera

• Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB
• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20m
• Day & Night: ICR
• Lens: 6.0mm Megapixel Board Lens
• Field of View: Diagonal = 63.6 deg +/- 3 deg | Horizontal = 33.1 deg +/- 3 deg | Vertical = 53.3 deg +/- 3 deg

Video

• Video Compression: H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps
• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
• Video Streaming: Support multi stream with H.264, MJPEG | Adjustable frame rate | CVBR/CBR in H.264
• Image Setting: Day & Night | Auto White Balance | Auto Exposure | Privacy Mask | Effects - Colour, Sharpness, Mirror / V-Flip

System Integration

• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

Physical

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR
• Net Weight 900g
• LED's: Power, Network Connection
• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 0 degree~40 degree Celsius(32F~104F)
• Storage Temperature: -10 degree~50 degree Celsius(14F~122F)
