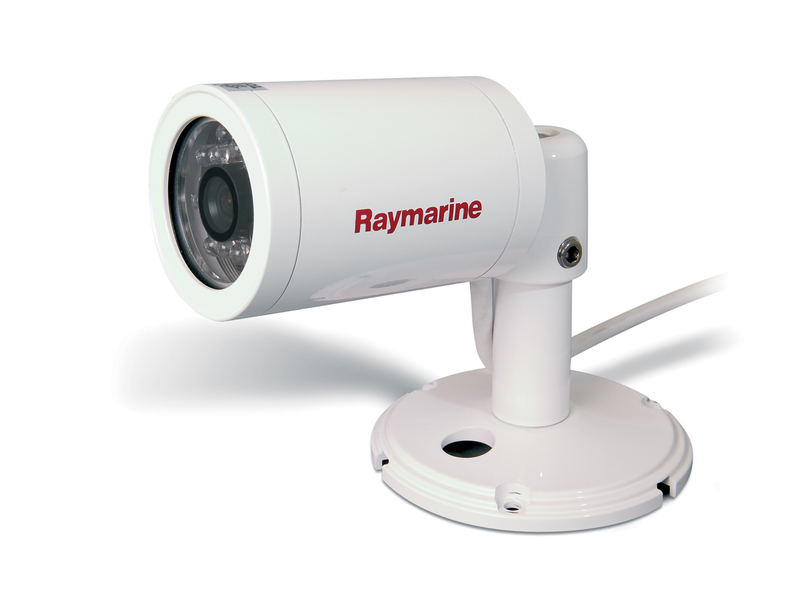

CAM100 - CCTV Day and Night Reverse Image Video Camera (PAL format)

Top class security and surveillance
Improve docking safety by monitoring blind spots or keep track of the engine room and crew from the helm with the Raymarine CAM100 Closed Circuit day and night marine camera

Key Features

• Automatic switching between true colour (day) and black & white (night)
• Automatic IR LED on/off with photo sensor
• Excellent colour reproduction
• Rugged waterproof housing
• Fixed mount
• Up to 15m (49') IR night time view in total darkness
• Surge power input protection built-in
• Clear focus at night with Anti-IR focus distortion technology built-in

Easy plug and play to your network
The Raymarine CAM100 camera instantly transforms your compatible multifunction display into a powerful onboard video observation system. Simply plug and play to any multifunction display with a BNC composite video input connector. Use multiple cameras for total view of your vessels' surroundings.

The camera uses a highly sensitive IR sensor to switch from true colour to black and white night vision mode.

Choose Raymarine CAM100 with Reverse Image for aft deck applications.

SPECIFICATIONS

• Weight: 0.31kg (0.68 lbs)
• Format: PAL 752 x 582 pixels | NTSC 768 x 494 pixels
• Imager: 1/3 Sony Super HAD CCD (Super Hi resolution)
• Horizontal resolution: 550 TVL
• Viewing Angles: 63 horizontal | 47 vertical | 78 diagonal
• Scanning System: PAL 625 lines | NTSC 525 lines 2:1 interlaced
• Video Output: Composite 75 Ohms
• Infrared: 14 Infrared Illuminated LEDs
• LED spectrum: 30 degrees for 15m
• Minimum illumination: 0.1 Lux at F2 - no IR, 0 Lux - with IR
• Waterproof: IPX6 and CFR46
• Power connection: 12 V Jack Socket
• Video connection: Male BNC
• Operating Voltage: 12V DC (+30% -10%)
• Operating temperatures: -10ºC to +55ºC
• Power consumption: 130 mA - day, 280 mA - night, IR on @12 V DC
