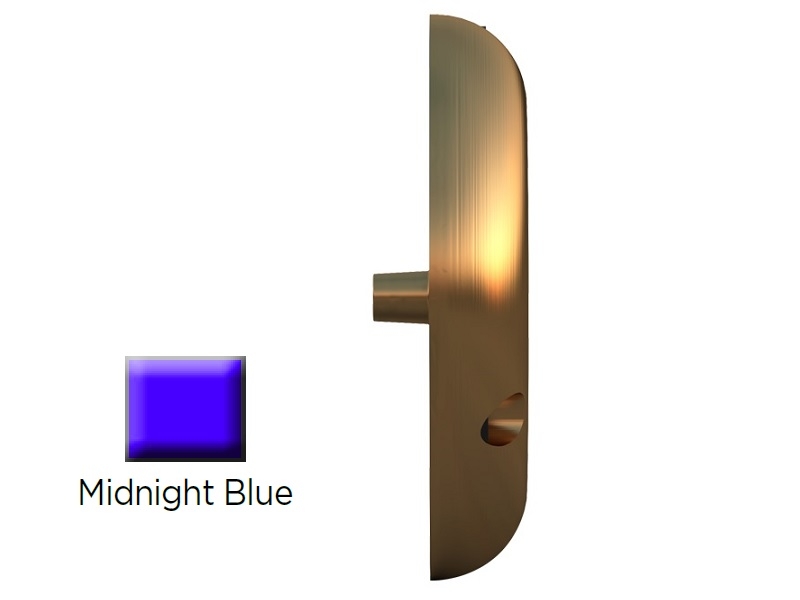

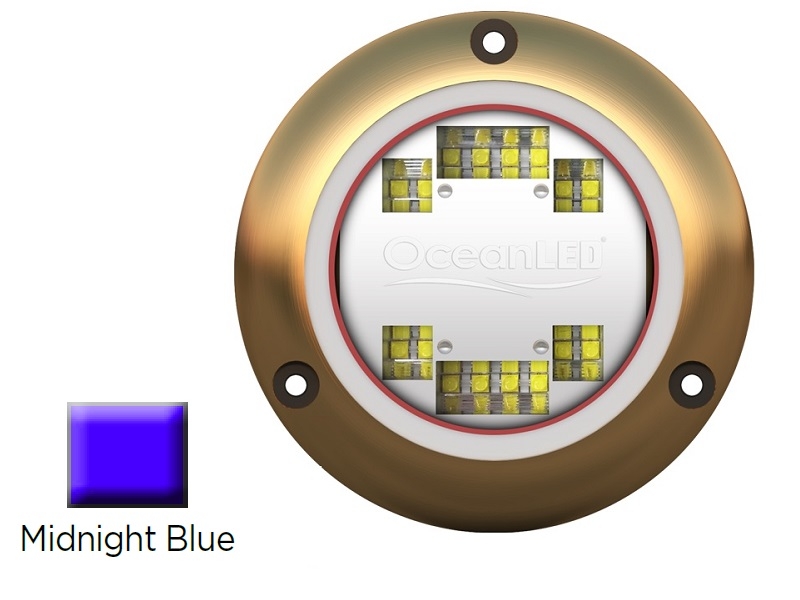

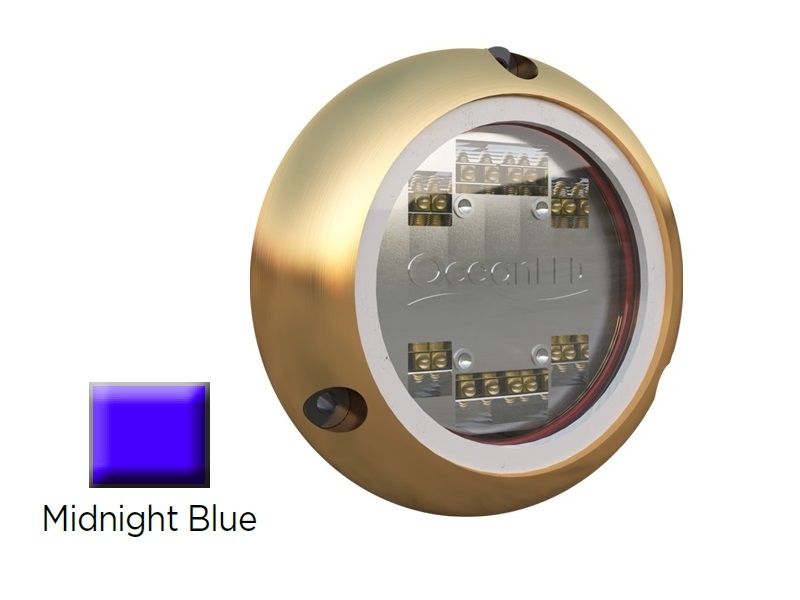

SPORT S3116s – 5000 Lumens Midnight Blue Underwater LED Light

Advanced Optics

• Illuminates a significantly larger area than its competitors
• Narrower focused side beam angle providing greater water penetration
• True 90˚ beam angle with no fading at the edge gives better illumination

FEATURES

• 90° Top Beam - True 90˚ beam angle with no fading at the edge gives better illumination
• 20° Side Beam
• Rectangular Beam
• Illuminates a significantly larger area than its competitors
• Up to 5000 Fixture Lumens
• Simple to install
• Narrower focused side beam angle providing greater water penetration.
• Compact and simple design
• Easy to clean
• Color: Midnight Blue

SPECIFICATIONS

TECHNICAL

• Lumens: Up to 11600
• Fixture Lumens: Up to 5000
• Typical LED life expectancy: 40,000+ Hours
• Minimum-Maximum operating voltage DC 9-32V DC
• Current / Amp draw (DC): 12V DC 5.5A / 24V DC 2.4A
• Driver type: Internal

PHYSICAL

• Total weight: 0.70kg
• Extension cable length (standard): 9.84’ (3m)
• Hole cut-out for cable entry: 1/2” (12.5mm)
• Material: AB2 Aluminum Bronze

MOUNTING RECOMMENDATIONS

• Boat size: up to 65’ (20m)
• Transom / Hull spacing: 2-4’ (0.5-1.2m)
• Transom quantity: 2-6
• Installation depth (to top of fixture): 8-10” (20-25cm)
