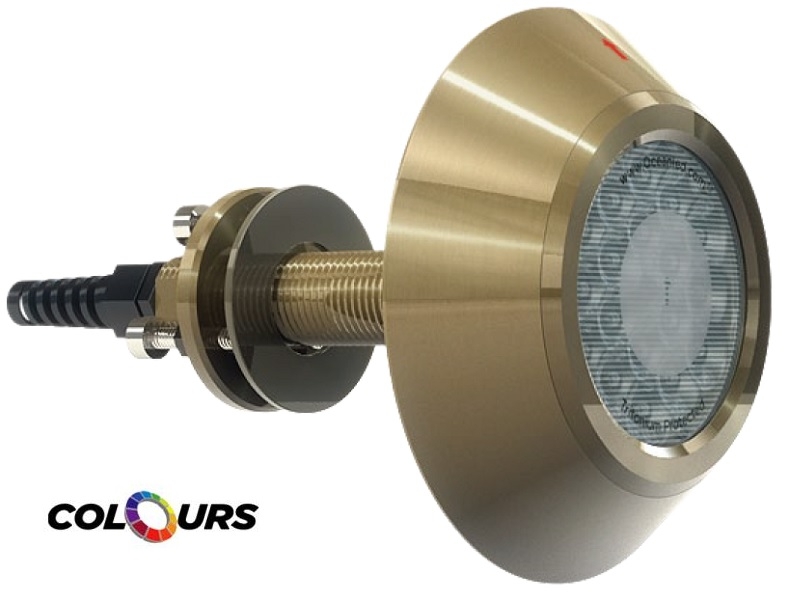

Colours TH HD GEN2 – 7000 Lumens Multicolor Through Hull LED Light

The Colours Thru-Hull model with the world’s smallest hole cut-out for a thru hull light at only 1” and a 1-inch (25mm) profile head make it the ideal underwater light for transom mount applications.

Pick A Colour. Any Colour
OceanLED Colours underwater lights provide the ability to create any desired colour scene for your yacht.

Choose from a limitless colour palette to best suit the yachts ambience and maximize the lighting effect in varying water conditions, or enhance a party theme/atmosphere or simply change the colour for fun!

FEATURES

• 60° Top Beam
• 20° Side Beam
• Elliptical Beam
• 110/240V AC
• Use with OceanDMX App
• Aluminum Bronze AB2 Bezel/ Hard Anodized Aluminum Body
• Factory Sealed Unit

SPECIFICATIONS

TECHNICAL

• Lumens: Up to 11400
• Fixture Lumens: 7000
• Typical LED life expectancy: 40,000+ Hours
• Minimum-Maximum operating voltage AC: 90-270V AC
• Current / Amp draw AC: 110V AC 50/60HZ 2.5A 230V AC 50/60HZ 1.1A
• Driver type: External

PHYSICAL

• Driver size (L x W x H) Excluding Connectors: 360 x 160 x 90mm (143/16 x 61/4 x 3.5”)
• Light Engine weight: 2.5kgs (5.5lbs)
• Driver weight: 4.8kgs (10.6lbs)
• Extension cable length (standard): 6.5’ (2m)
• Hole cut-out for cable entry: 1” (26mm)
• Material Aluminum Bronze AB2

MOUNTING RECOMMENDATIONS

• Boat size: up to and over 65’ (20m)
• Transom / Hull spacing: 3-5’ (1-1.5m)
• Transom quantity: 2-6
• Maximum hull thickness: 3.5” (90mm)
• Installation depth (to top of fixture): 8-10in (200-250mm)
