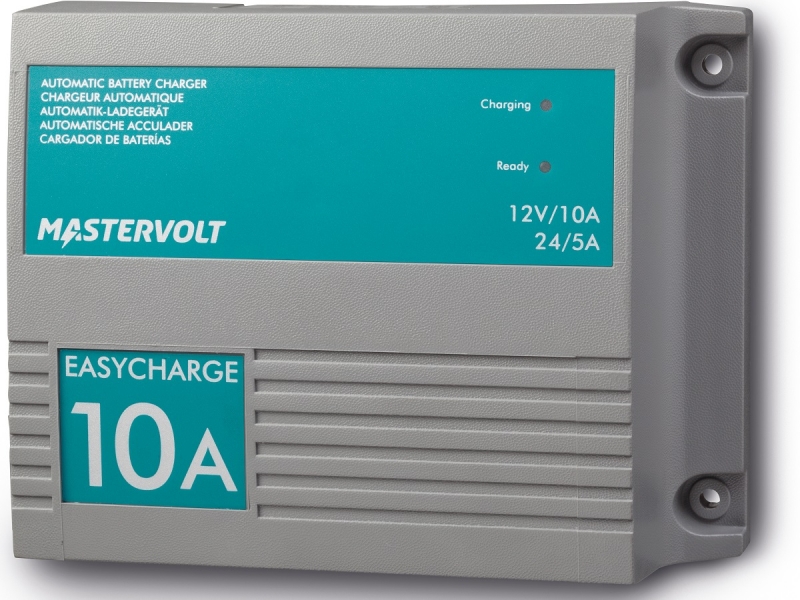

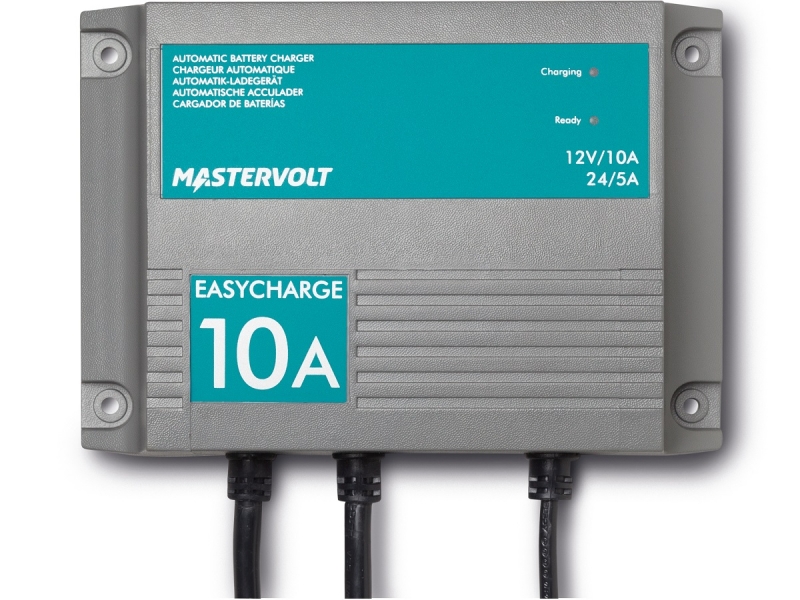

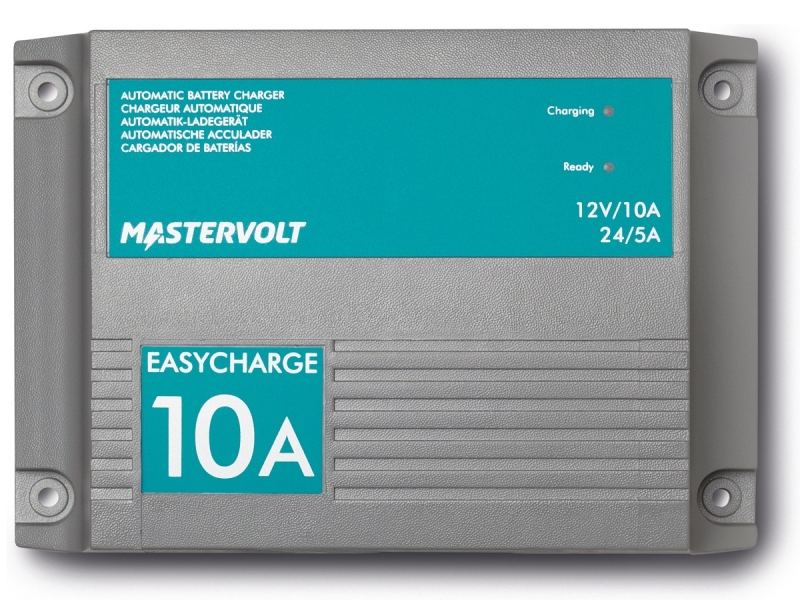

EasyCharge 10A - 10A Waterproof Battery Charger

The outputs are completely isolated, and can be used in either series or parallel for higher voltage or current, including 12 or 24 V outputs. Highly efficient and simple to use, these chargers are designed for harsh environments, and are fully salt, shock and vibration tested. Currently, 6 A single bank and 10 A dual bank types models are available.

A key feature is the ‘sense and send’ technology, which allows the chargers to detect which batteries need the most charge and prioritise accordingly. The battery chargers have the ability to charge wet, AGM and gel batteries, with a universal input (120-230 V) for total worldwide freedom.

FEATURES

• Spark free.
• Reverse polarity protected.
• Short circuit proof.
• Waterproof.
• Charges and maintains 12 V and 24 V (10 A model) wet, AGM and gel batteries.
• Fast charging, extends battery life.
• Sense-Send™ technology (only 10 A model).
• Wide input voltage range (90-265 V AC).

GENERAL SPECIFICATIONS

• Total charge current: 10 A at 12 V / 5 A at 24 V
• Recommended battery capacity: charge (based on 50% discharged battery) to 120 Ah
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 1.2 m (4 ft) cable + Euro plug

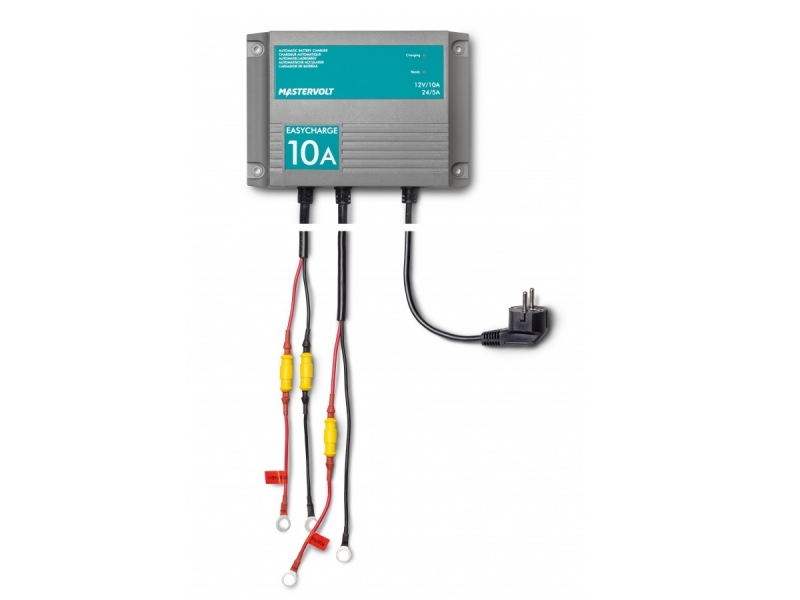

• DC connection: ring terminals
• Dimensions, hxwxd: 127 x 178 x 51 mm | 5.0 x 7.0 x 2.0 inch
• Weight: 2.8 kg | 6.2 lb
• Approvals: CE, ABYC

TECHNICAL SPECIFICATIONS

• Charge characteristic: IUoUo, automatic 3-step+ for gel/AGM/wet
• Temperature range (ambient temp.): -20 °C to 50 °C | -4 °F to 122 °F
• Protection degree: IP68
• Protections: spark free, short circuit, reverse polarity, over voltage, current limited, over temperature
