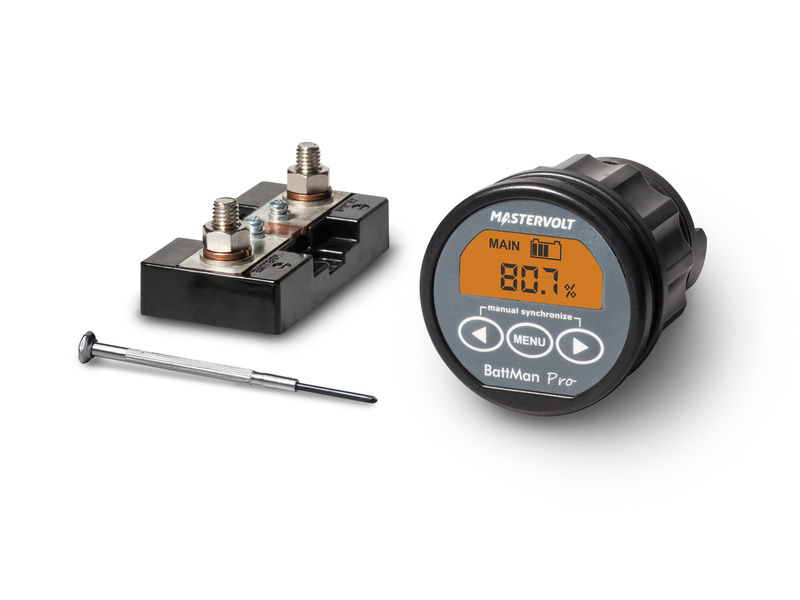

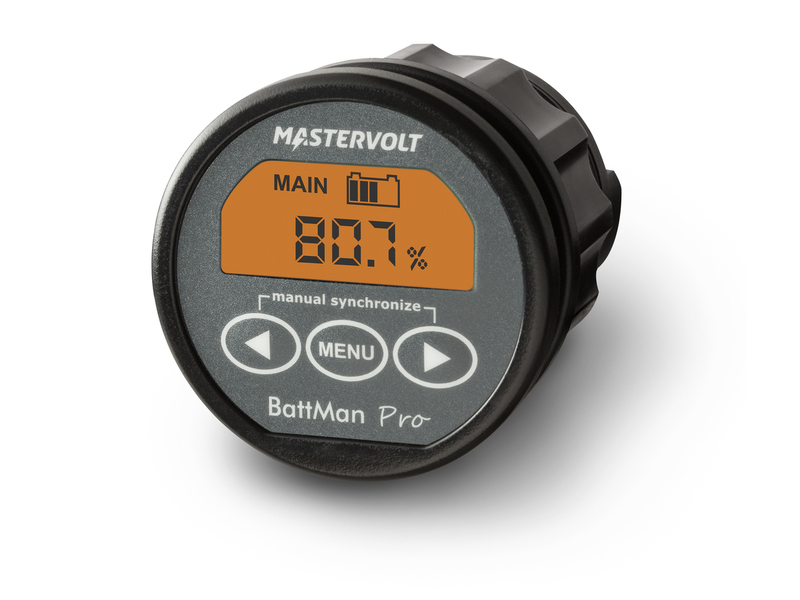

BattMan PRO - Battery Monitor

Battery monitor, 12/24 V DC with large, splash proof display (IP65) and power bar. Displays remaining time and stores special battery status events.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty. Also displays the remaining time until your battery needs to be charged and stores special battery status events.

SPECIFICATIONS

GENERAL

• Number of battery outlets: 2; service (fully), starter (voltage)
• Display/read-out: voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events
• Languages on display: universal
• Built-in depth: 72.5 mm
• Dimensions: Ø 64 mm, depth 79 mm
• Dimensions shunt, hxwxd: 87 x 45 x 35 mm
• Weight: 0.15 kg

TECHNICAL

• Max. Ah capacity: 9999 Ah
• Supply voltage: 9-35 V
• Voltage range: 0-35 V
• Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
• Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
• Voltage resolution: 0.1 V
• Voltage accuracy : ± 0.3%
• Shunt specification: 500 A/50 mV (service set)
• Current measurement range: 0-500 A
• Current accuracy: ± 0,4 %
• Battery alarm contact: yes, potential free
• Remaining time indication: no
• Historical data: no
• MasterBus compatible: no
• Connection cable (6-wire) necessary: yes
• Modular cable necessary: no
