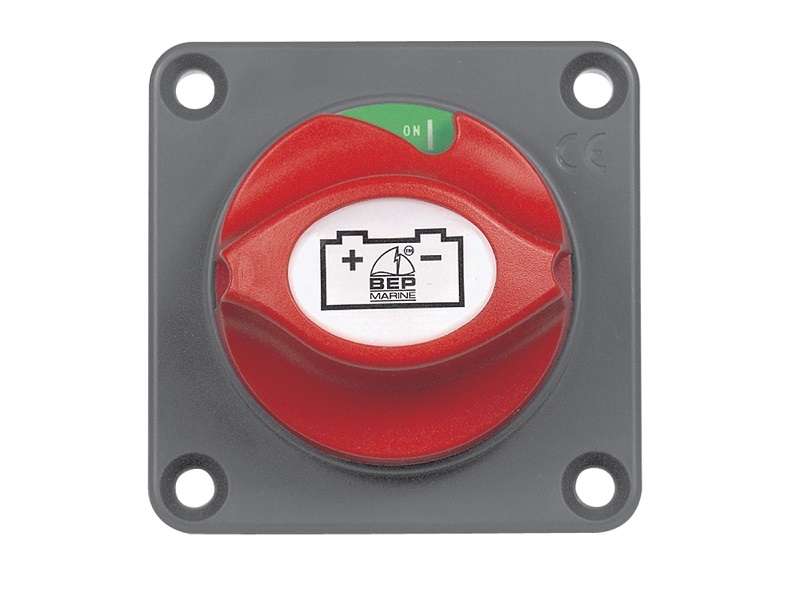

701-PM - Contour Battery Master Switch On/Off 275A (panel mount)

Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.

Features

• Compact, lightweight
• Removable key
• Countersunk recesses for surface mount application
• Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
• Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
• Standard interchange label system
• Molded in high temperature, fiber reinforced plastics

SPECIFICATIONS

• Dimensions: 69 x 69 x 67 mm
• Continuous Rating (1 h): 275 A
• Intermittent Rating (5 min.): 455 A
• Crank Rating (10 seg): 1250 A
• Voltage: 48V dc
• Operation: On/Off
