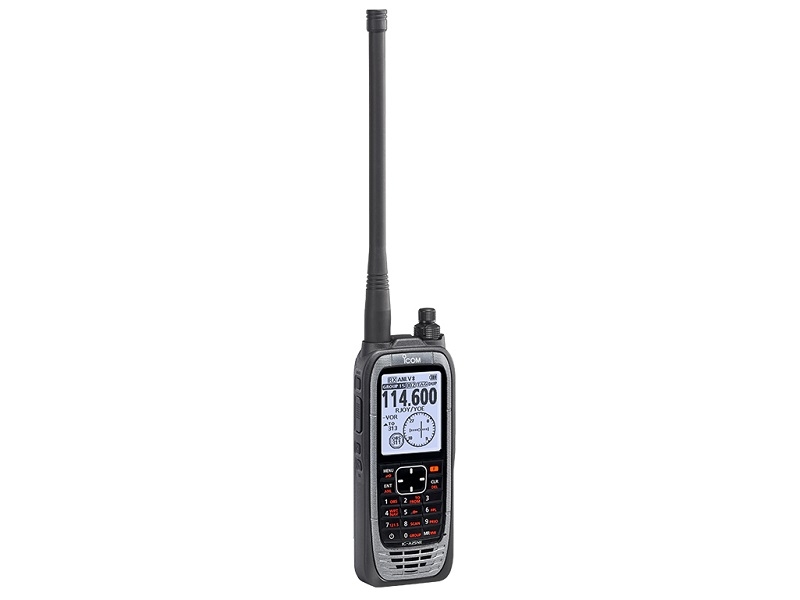

IC-A25NE – VHF COM/NAV Airband Handheld Transceiver w/ GPS and Bluetooth

8.33kHz/25kHz VHF COM/NAV Airband Transceiver
The IC-A25NE is the latest development in Airband radio technology featuring built-in Bluetooth, GPS and significant VOR navigation functions. Featuring 6 watts of output power, this stylish modern design, easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and easy in-flight operation. The handheld includes a large 2350mAh Li-ion battery, providing longer operating time.

6 Watts High RF Output Power
For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) 1.8 W (carrier) compared to the IC-A24E (5/1.5 W (PEP/carrier)).

Easy-To-Use Interface
Often used functions are assigned to the ten-key pad and you can directly access the desired function. The enlarged flat sheet keypad offers smooth and swift operation.

2.3-inch Large High Visibility LCD
The large, high contrast and highly visible LCD display user-friendly, graphic screens and ensures good readability under sunlight. The operating frequency in large characters can be recognized at a glance. Also, the night mode option allows for easy viewing in low light conditions.

“Flip-Flop” Channel Recall
The IC-A25NE stores the last ten channels used. You can easily recall those channels by using the directional keys or the channel knob or the keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, and change order) the stored recall channels.

Built-in Bluetooth for Hands-Free Operation
Hands free operation can be achieved when paired with a compatible third-party wireless Bluetooth headset. When using the optional VS-3 Bluetooth headset, the sidetone function can be used.

Intelligent Battery with Detailed Battery Information
The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. This is very useful for optimum charging and battery health maintenance.

Other Features

• 8.33 kHz channel spacing
• IP57 dust-protection and waterproof construction
• Operate with six AA-size alkaline batteries with the BP-289 battery case
• BNC Antenna connection
• 121.5 MHz emergency key
• Priority watch
• VFO scan, memory-channel scan, priority scan
• ANL (Auto Noise Limiter) for noise reduction
• Side tone function allows you to hear your voice via an external aviation headset
• Internal VOX capability
• 300 memory channels (in 15 memory groups) with 12 character names

NAVIGATION FUNCTIONS

VOR Navigation Functions
The CDI (Course Deviation Indicator) is detailed like a real VOR instrument; showing any deviation from your course.
The OBS (Omni Bearing Selector) allows you to change course from the original flight plan.
The TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
The ABSS (Automatic Bearing Set System) function enables you to set the current course or a new course in two simple steps.

Near Station Search Function
The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories with the GPS position information. To use the near station search function, location data and frequencies of the ground station must be programmed.

Built-in GPS with Simplified Waypoint NAV
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 Flight Plans and 300 waypoints can be memorised in the IC-A25NE.

Flight Plan with Android/iOS App
Using RS-AERO1A (Android app) or RS-AERO1I (iOS app), you can make a flight plan on an Android/iOS device and import the plan to the IC-A25NE via Bluetooth.

SPECIFICATIONS

GENERAL

• NAV and COM: NAV and COM channels
• Frequency range Tx: 118.000–136.992 MHz | Rx: 108.000–136.992 MHz
• Number of memory channels: 300 channels/15 groups
• Channel spacing: 25/8.33 kHz
• Type of emission: 6K80A3E, 5K00A3E
• Power supply requirement : 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
• Current drain (approximately): Tx High: Less than 1.8 A | Rx Max. audio/Stand-by: Less than 500 mA
  90 mA typ. (GPS, Bluetooth, Light: OFF)
• Antenna impedance: 50 Ω
• Operating temperature range: −20 °C to +55 °C
• Dimensions (W × H × D;): 58.9 × 148.4 × 31.8 mm
• Weight (approximately): 340 g (with BP-288)

TRANSMITTER

• Output power (at 7.2 V DC): 6.0/1.8 W (PEP/carrier)
• Audio harmonic distortion: Less than 10% (at 85% modulation)
• Harmonics Spurious emissions: Less than −36 dBm (except operating frequency ±1 MHz)
• Frequency stability: ±1 ppm

RECEIVER

• Intermediate frequencies 46.35 MHz/450 kHz (1st/2nd)
• Sensitivity: NAV (6 dB S/N): Less than 0 dBμ | COM (12 dB SINAD): Less than 0 dBμ (with CCITT filter)
• Squelch sensitivity (at threshold): Less than 0 dBμ
• Adjacent channel rejection: More than 60 dB
• Spurious response: More than 70 dB
• Hum and noise: More than 40 dB (at 90% modulation)
• Audio output power: More than 350 mW typ. (8 Ω load/60% modulation at 10% distortion)
• Ext. speaker connector: 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
