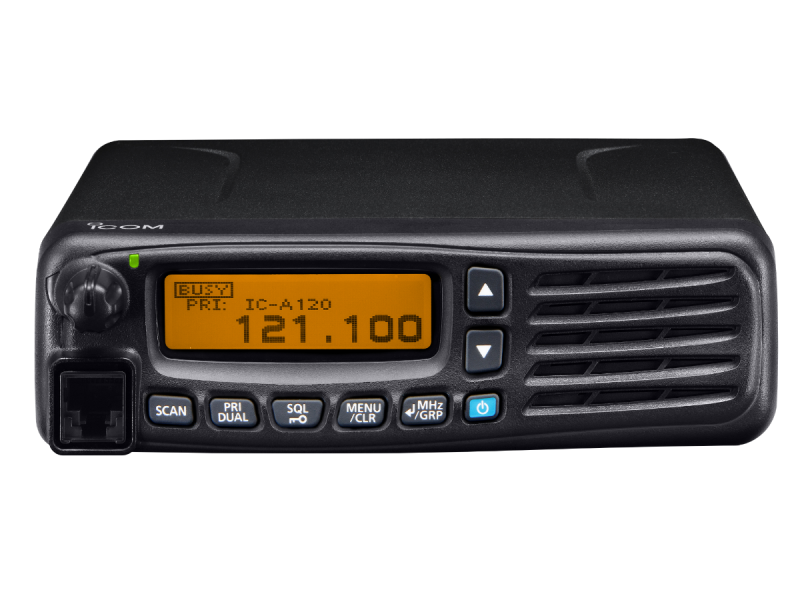

IC-A120E – Ground Support Airband VHF Vehicle Radio

Icom’s IC-A120E ground-based panel-mount vehicle airband radio is the successor to the best selling IC-A110EURO airband transceiver. Aimed at airport ground crew vehicles, this model features both 8.33kHz and 25kHz channel spacing, plus the latest noise cancelling and Bluetooth technology

200 Memory Channels with Channel Name

The IC-A120 has 200 memory channels to store often used frequencies with 12-character channel name. With a high contrast dot matrix display, operating channels can be selected quickly and recognized easily. You can instantly program memory channels without requiring PC programming.

Active Noise Cancelling

Built-in active noise cancelling reduces background noise to up to 90% of the received signal and 30% in the transmitted signal. In addition, The ANL (Automatic Noise Limiter) reduces pulse-type noise such as an engine ignition. These functions are effective in extremely noisy airport environments full of aircraft noise.

Optional Bluetooth Unit

When the optional UT-133 Bluetooth unit is installed, the IC-A120 can be used with a third-party wireless Bluetooth headset. When used the optional VS-3 Bluetooth headset, the side tone function is available for monitoring own transmitted voice.

Side Tone Function

When using a third-party headset with the optional OPC-871A headset adapter, the side tone function allows you to monitor your own transmitted voice via the connected headset. Even when using a hand microphone, your voice can be monitored from the headset.

IP54 Dust-Protection and Water Resistance

The IC-A120 has IP54 dust-protection and water resistance, allowing it to be used in wet and dusty conditions.

Optional Speaker-Microphone, HM-217

You can pull the speaker-microphone close to your ear to listen to received voice in noisy environments. The programmable buttons (P1/P2) on the front panel can be used as a shortcut to activate frequently used functions.

Other Features

• 12- and 24-volt system compatible
• 8.33 kHz and 25 kHz channel spacing
• Side tone function with optional OPC-871A
• Priority scan and Dualwatch function
• Power on Password protection
• CI-V command for external control
• VE-PG3 RoIP gateway for interconnect with other radio systems and/or other audio devices

SPECIFICATIONS

GENERAL

• Frequency range (Tx/Rx): 118.000–136.992MHz (EUR) | 118.000–136.975MHz (AUS)
• Channel spacing: 25kHz/8.33kHz (EUR) | 25kHz (AUS)
• Type of emission: 6K80A3E, 5K00A3E (EUR) | 6K80A3E (AUS)
• Operating temperature range: –20˚C to +55˚C
• Antenna connector: SO-239 (50Ω)
• Number of memory channels: 200 channels
• Power supply requirements: 13.75V/27.5V DC
• Current drain (at 13.75V): Tx 5.0A (maximum) | Rx Stand-by 0.5A | Rx Max. audio 4.0A
• Dimensions (W×H×D): 161×45×175 (mm)
• Weight (approximately): 1.5kg (main unit)

TRANSMITTER

• Output power (at 13.75V): 9.0W+1.5dB/–3dB (–20°C to +55°C) | 9.0W±1.5dB (+15°C to +35°C)
• Frequency stability: ±1ppm (0˚C to +40˚C)
• Spurious emissions: 9 kHz to 30 MHz Less than –46 dBm | 30 MHz to 1 GHz Less than –36 dBm (For Harmonics) / Less than –46 dBm (For Non-Harmonics) | 1 GHz to 4 GHz Less than –30 dBm (For Harmonics) / Less than –40 dBm (For Non-Harmonics)
• Modulation: Linear 85% | Max. 95%
• Microphone impedance: 600Ω

RECEIVER

• Intermediate frequencies: 38.85MHz/450kHz (1st/2nd)
• Sensitivity (at 12dB SINAD): 1.8 μV (with CCITT filter)
• Selectivity: 8.33kHz : 2.778/7.37kHz (6dB/60dB) | 25kHz : 8/25kHz (6dB/60dB)
• Spurious response rejection: More than 70dB
• Audio output power (at 10% distortion, 60% modulation): Internal SP (8Ω load) 1.5W typical | External SP (8Ω load) More than 10W | Headphone (500Ω load) More than 100mW

SUPPLIED ACCESSORIES

• Hand microphone, HM-216
• DC power cable
• Mounting bracket kit
• Microphone hanger kit
• Fuses
