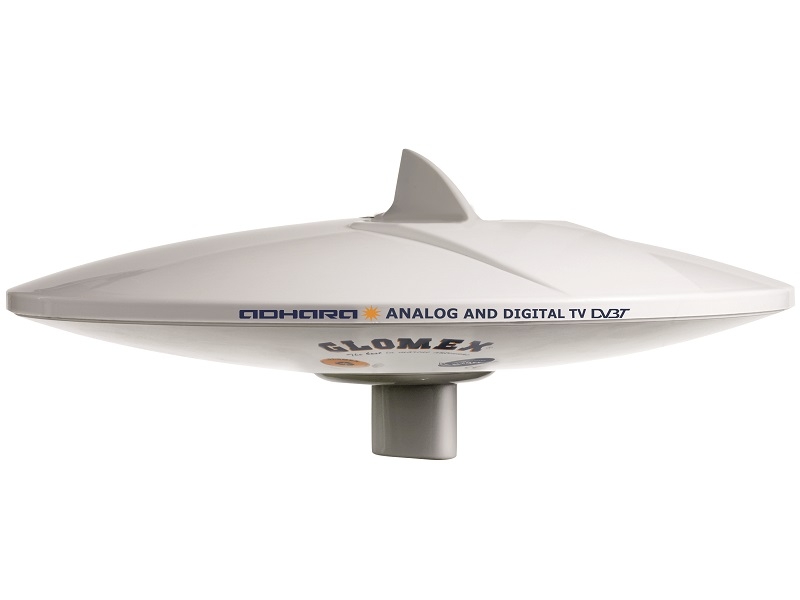

V9150/12 ADHARA – Omnidirectional TV Antenna, 36 DB, Horizontal/Vertical Polarization w/ Conector and Cable

The V9150/12 is the Omni directional TV antenna renewed in design and performance keeping the essential style, compact dimensions (diameter 370mm / 14”) and high-quality materials, developed to meet the requirements of large yachts and cargo ships.

Adhara is distinguished by an innovative design based to the new pinnacle as a “shark fin” (high 55mm /2,2”), for receiving vertically polarized TV signals, that fits perfectly on the new radome with aerodynamic lines. Thanks to vertical pinnacle inside the “shark fin”, Adhara can receive analog or digital TV signals polarized both horizontally and vertically.

Adhara is equipped with 2 amplifiers: the 50023/98SR12 amplifier can be equipped with the A/B switch option (from antenna or other source), and the 50022/10 is both amplifier and splitter allowing the signal to be directed to several TVs whilst retaining a high-quality image.

SPECIFICATIONS

• Antenna diameter: 370 mm (14'')
• Antenna height: 185 mm (7') [240 mm (9,5") with shark fin]
• Base diameter: 25 mm (1'')
• Antenna weight: 900 g (31.74 oz) [975 g (34,39 oz) with shark fin]
• Radome material: U.V. resistant ASA
• Angle of reception: 360°
• Polarization: Horizontal / Vertical
• Impedance: 75 ohms
• Frequency range: 40/890 MHz
• Gain average: 36 dB
• Noise factor: 2,1 dB
• Power consumption: 120 mA
• Power supply: 12 Vdc
• Antenna ampl/by pass: No
• Adjustable gain: Yes
• TV set max: 6
• Termination: F female
• Connector supplied: F male gold-plated connector (V9144)
• A/B switch: Yes
