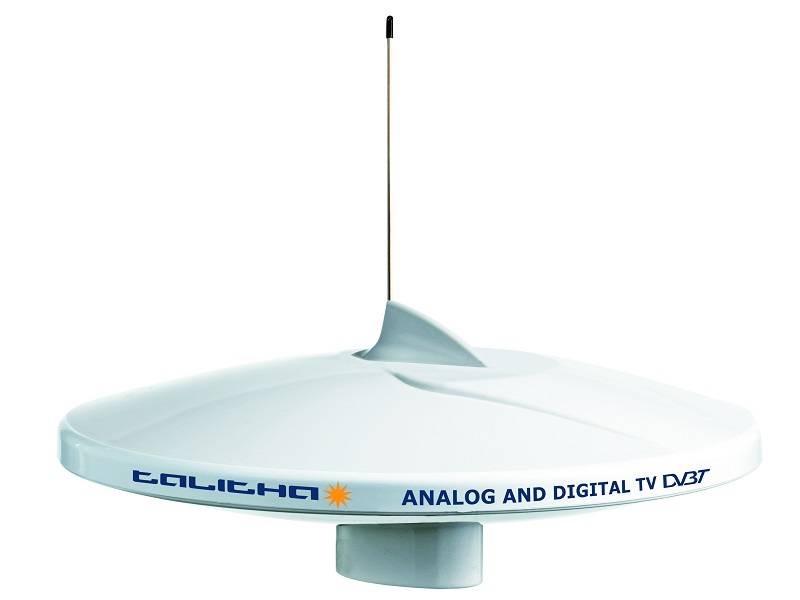

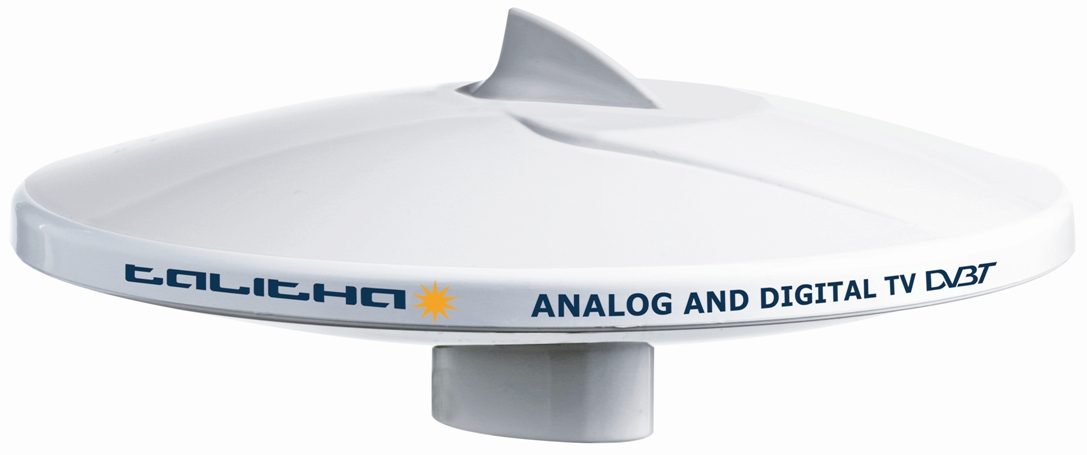

TALITHA AGC DAB – TV | FM | DAB – 20dB automatic gain control antenna. White version

Talitha evolves in Talitha AGC to make your life easier and more comfortable with the new and innovative automatic gain control amplifier. Moreover, it also receives the DAB radio signals. Thanks to the new amplifier you have only to turn on the TV, stay comfortably seated on the sofa and enjoy your favorite programs; Talitha AGC (diameter: 25cm / 10”) will adjust by itself the gain of the TV signal to ensure the best possible reception of television broadcasts. With conventional amplifiers, in fact, you have to manually adjust the TV signal gain by lowering the amplification when the signal is high and by increasing the amplification when the boat is at sea and far from the TV transmitter.

With the new Talitha AGC, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the boat. This innovation increases the Nashira key points that have allowed Talitha to be the best-selling marine DVB-T and DVB-T2 TV antenna in the world for more than 30 years: its always appreciated essential style, aerodynamic lines with the “shark fin” (55mm/2.2” high) for receiving the vertically polarized TV signals, reinforced base to ensure maximum stability of the antenna in any condition of navigation, compact size (370 mm/14” diameter) and high-quality construction materials. Talitha is the ideal solution for any type of boats: sailboat and motorboats.

Supplied accessories:

• 50023/14 automatic gain control amplifier
• 20m coaxial cable to connect the antenna with the amplifier
• 1.5m set cord to connect the amplifier to the TV/decoder
• V9144 f-male gold-plated connector. Dab whip

SPECIFICATIONS

• Diameter: 250mm
• Height: 425mm
• Base diameter: 25mm
• Weight: 900g | 975g with shark fin
• Material: UV resistant ASA
• Color: white
• Angle of reception: 360º
• Polarization: Horizontal / Vertical
• Impedance: 75 Ohms
• Frequency range: 40/890 MHz
• Gain average: 20 dB
• Noise factor: 2,2 dB
• Power consumption: 20 mA
• Power supply: 12/24V dc
• Adjustable gain: Automatic
• TV Set Max: 2
• Termination: F female
• Connector supplied: F male gold plated connector (V9144)
