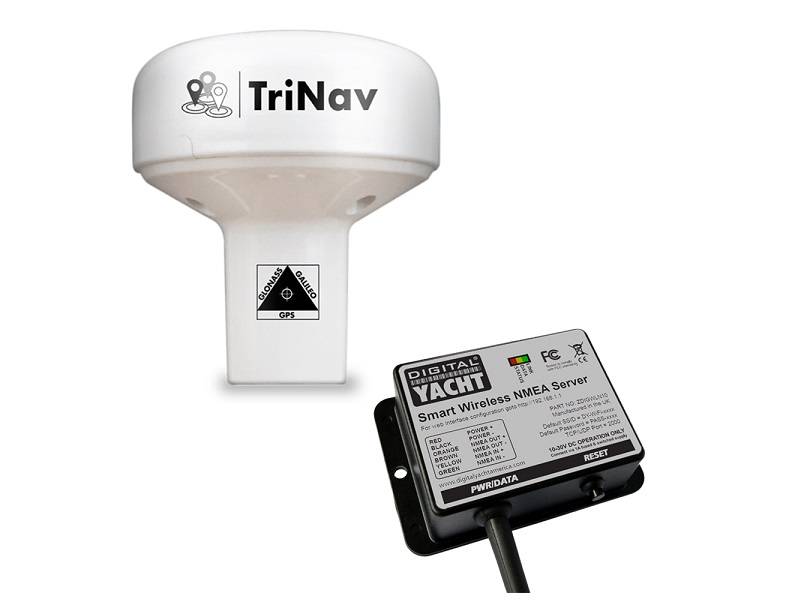

TriNav GPS160WL – GPS, Glonass, Galileo Antenna with Wi-Fi interface

KEY FEATURES
Digital Yacht have unveiled their TriNav™ GPS160, a GPS antenna with Wi-Fi gateway. This is a new, high performance positioning sensor using GPS, Glonass and the new Galileo satellite systems. Therefore, providing the best position accuracy and redundancy. Typical accuracy is better than 1m. Data can also be set to output at up to 18Hz for smooth plotter track displays. TriNav™ software technology also improves inaccuracy of position that could occur through spoofing and local interference.

The device has a variety of modes through field programming. This includes single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc.

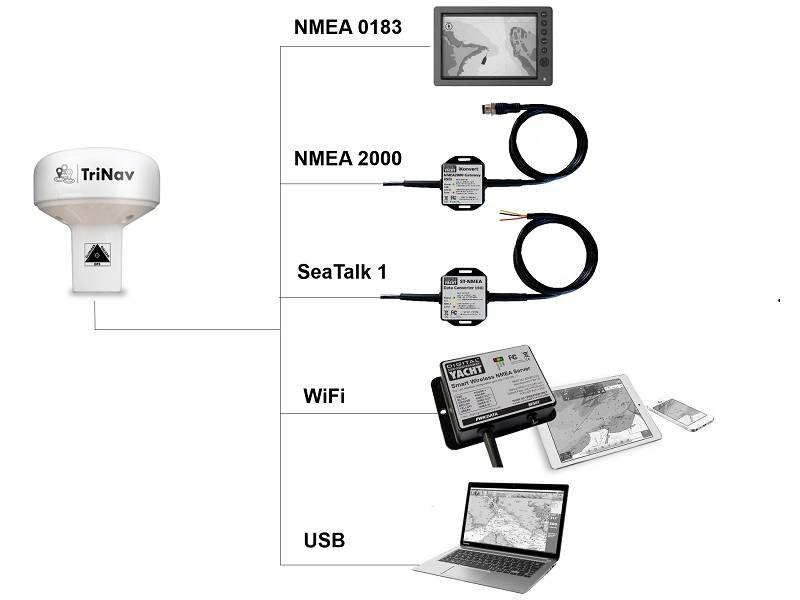

The GPS160 wireless GPS antenna version is supplied with Digital Yacht NMEA to WiFi gateway for wireless navigation with tablets and iPads. The NMEA to WiFi gateway creates a secure, password protected wifi network on board to footprint the boat with data. It supports both UDP (for multiple connections) and TCP/IP interfaces for maximum compatibility with apps so you can be using a PC at the chart table with an iPad on deck.

The GPS160 also supports a simple external MOB (man-over-board) switch or device. When triggered, the GPS160 creates a “synthesised” AIS SART MOB message on its NMEA output. This can then interface with a local plotter to identify the MOB. Most modern plotters support this with a clear MOB icon. As well as instant bearing and distance data to navigate to the casualty.

SPECIFICATIONS

• 72 channel GPS, Glonass and Galileo GNSS positioning receiver
• Supplied with Digital Yacht Smart WLN10 NMEA to WiFi gateway for tablet navigation
• Supports both UDP (for multiple connections) and TCP/IP interfaces
• Set baud rate, SSID and password through Smart WLN10 web interface
• Typically sub 1m accuracy thanks to TriNav™ technology –combines all satellite data for the best accuracy
• Can be configured as a dedicated GPS, Glonass or Galileo only device
• Refined anti-spoofing algorithm for robust performance of position and to reject interference
• User/field can select 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Many formats of NMEA data output that includes datum information –user can configure this through internal DIP switches
• 10m cable
• Up to 18Hz update rate (user can select)
• Ultra-low (<20mA) power consumption at 12V DC
• Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
