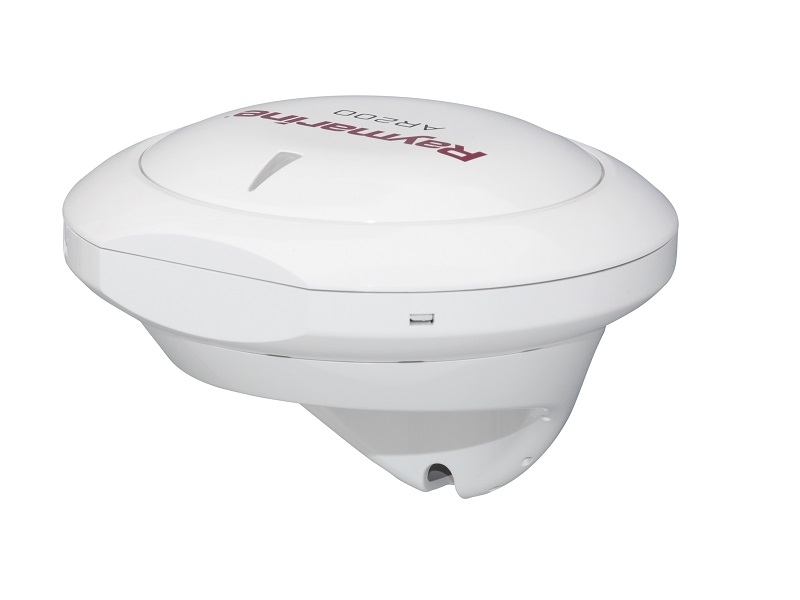

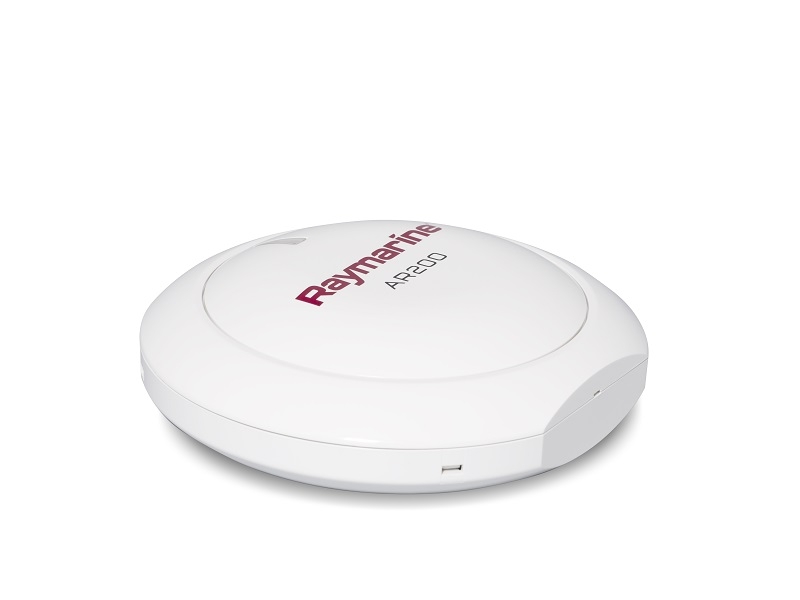

AR200 - Augmented Reality Stabilization Module

The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.

Key Features:

• 9-axis AHRS (attitude and heading reference system) sensor
• 28-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

SPECIFICATIONS

POWER SPECIFICATIONS

• Nominal supply voltage: 12 V dc (Supplied by the SeaTalkng® network.)
• Operating voltage range: 9 V dc to 16 V dc (protected up to 32 V dc)
• Power consumption: 30 mA Max.
• LEN (Load Equivalency Rating): 1

ENVIRONMENTAL

• Operating temperature range: -25 ºC to +55 ºC (-13 ºF to 131 ºF)
• Storage temperature range: -25 ºC to +70 ºC (-13 ºF to 158 ºF)
• Relative humidity: 93%
• Water Ingress Protection: IPx6 and IPx7

CONFORMANCE

• EMC Directive: 2014/30/EU
• Australia and New Zealand C-Tick compliance: Level 2
• RoHS Directive: 2011/65/EU
• WEEE Directive: 2012/19/EU

GNSS RECEIVER

• Signal acquisition: Automatic
• Channels: Simultaneously track up to 28 satellites.
• Operating frequency: 1574 MHz to 1605 MHz
• Update rate: 10Hz
• Sensitivity: Cold start = -147 dBm | Re-acquisition = -160 dBm | Tracking = -164 dBm
• GNSS compatibility: GPS | GLONASS | Galileo ready | Beidou ready
• Satellite Differential Type (SBAS): WAAS (United States) | EGNOS (Europe) | MSAS (Japan) | GAGAN (India) | QZSS ready (Japan)
• Differential acquisition: Automatic
• Position accuracy without SBAS (95%): < 15m
• Position accuracy with SBAS (95%): <5m
• Speed accuracy (95%): <0.3m
• Time to first fix from cold start: <2 minutes (<60 seconds typical)
• Time to first fix from hot start: <45 seconds
• Geodetic Datum: WGS–84
• Antenna: Internal

AHRS

• AHRS: 3–Axis digital accelerometer | 3–Axis digital compass | 3–Axis MEMS Gyro digital angular rate sensor
• Magnetic compass accuracy: Static = ≤1° RMS | Dynamic = ≤3° RMS
• Pitch, Roll and Yaw accuracy: ≤1°
• Heading, Pitch, Roll and Rate of Turn update rate: 10Hz
