TriNav GPS160N2K – GPS, Glonass, Galileo Antenna with NMEA2000 interface

KEY FEATURES
Digital Yacht have unveiled their TriNav™ GPS160, a GPS antenna NMEA2000 gatewat. This is a new, high performance positioning sensor using GPS, Glonass and the new Galileo satellite systems. Therefore, providing the best position accuracy and redundancy. Typical accuracy is better than 1m. Data can also be set to output at up to 18Hz for smooth plotter track displays. TriNav™ software technology also improves inaccuracy of position that could occur through spoofing and local interference.

The device has a variety of modes through field programming. This includes single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc.

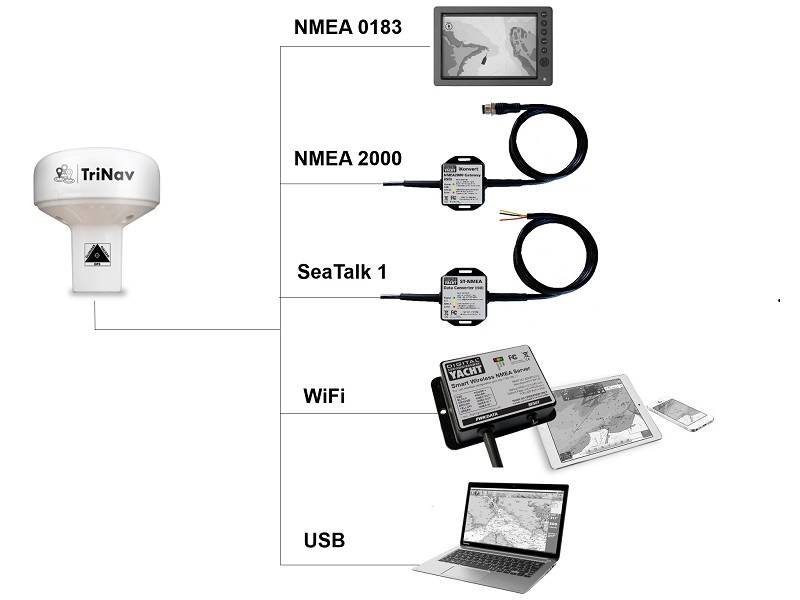

The GPS160 GPS antenna with NMEA 2000 version includes the Digital Yacht iKonvert NMEA 2000 gateway. This therefore allows an easy and flexible install of the NMEA 2000 without the need for cumbersome drop cables. It allows an easy and thin 10m cable to be run from the GPS160 to the nearest point on the NMEA 2000 backbone. Thus allowing the iKonvert to connect to it.

The GPS160 also supports a simple external MOB (man-over-board) switch or device. When triggered, the GPS160 creates a “synthesised” AIS SART MOB message on its NMEA output. This can then interface with a local plotter to identify the MOB. Most modern plotters support this with a clear MOB icon. As well as instant bearing and distance data to navigate to the casualty.

SPECIFICATIONS

• 72 channel GPS, Glonass and Galileo GNSS positioning receiver
• Supplied with iKonvert (NMEA2000-NMEA0183 converter) allowing easy and flexible NMEA 2000 installation
• Typically sub 1m accuracy thanks to TriNav™ technology –combines all satellite data for the best accuracy
• Can be configured as a dedicated GPS, Glonass or Galileo only device
• Refined anti-spoofing algorithm for robust performance of position and to reject interference
• User/field can select 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Many formats of NMEA data output that includes datum information –user can configure this through internal DIP switches
• 10m cable
• Up to 18Hz update rate (user can select)
• Ultra-low (<20mA) power consumption at 12V DC
• Efficient system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
