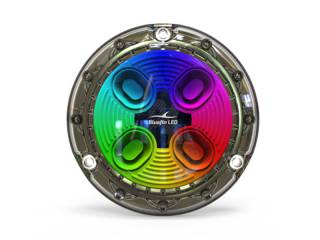

Piranha P24CC Color Change - Surface Mounted LED Underwater Boat Light

Features

• With a class leading 7000 Fixture Lumens the P24CC is packed with features usually reserved for models costing two to three times more.
• Almost infinite color combinations available.
• Precision Timing Technology (PTT) ensures continuous synchronization of the lights without the need of any costly external controllers.
• Lights are controlled via a simple on/off toggle switch to select and stay on the desired color or strobe (flashing) mode.
• Ultra-compact low profile design, suitable for transom and side mounting on all hull types.
• Simple installation just one small cable entry hole and 3 mounting screws
• Built in driver technology with active thermal rollback
• Multiple sealing technology with new gas tight cable.
• Suitable for in and out of water use.
• 2 Year warranty

SPECIFICATIONS

• Suitable for le for transom or side hull mounting
• Surface mount, requires 18mm/0.71" cable entry hole
• Recommended for boats up to 30m/105ft
• Fixture Lumens 7000
• Typical LED life expectancy 50,000 + hours
• Voltage 12/24V, Power Draw 10.0 Amps@12V and 5.0 Amps@24V
• Over/Under voltage, current, reverse polarity, active thermal protection
• Hydro Block gas tight cable technology.
• Fixture profile 18.5mm, 0.73"
• Fixture diameter 130mm 5.12"
• Lens: optical grade high impact polymer,60 degree beam angle
• 2 year warranty

To download the files simply click on the desired files to select and then click the Download button at the bottom .
