7703 - ML Solenoid - 24V DC

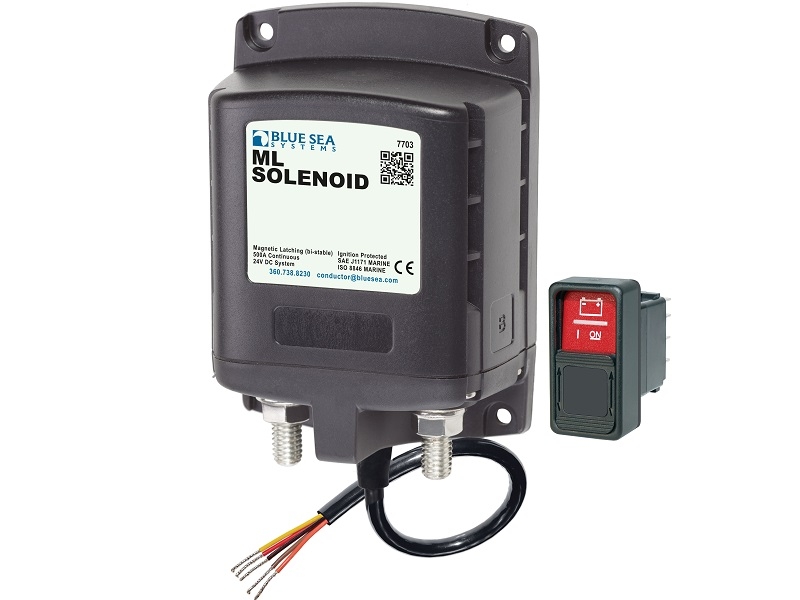

Blue Sea's 500A Magnetic Latching Solenoid, 24V DC provides switching under load where manual control is not required. Includes ML-Series Remote Control Contura Switch 2145.

Features

• 500A continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals

Specifications

• Control Circuit Connection: Tinned Wire
• Nominal Voltage: 24V DC
• Manual Control: No
• Coil Function: Bi-Stable
• Mounting: #10
• Amperage Operating Current continuous: 0A
• Terminal Stud Torque: 140 in-lb (15.82 Nm)
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 sec: 1450A DC
• Cable Size to Meet Ratings: 2x (4/0)
• Switching Cycles: 100000
• Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
• Terminal Stud Length: 0.875in (22.23 mm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 1.75lb (0.79 kg)
