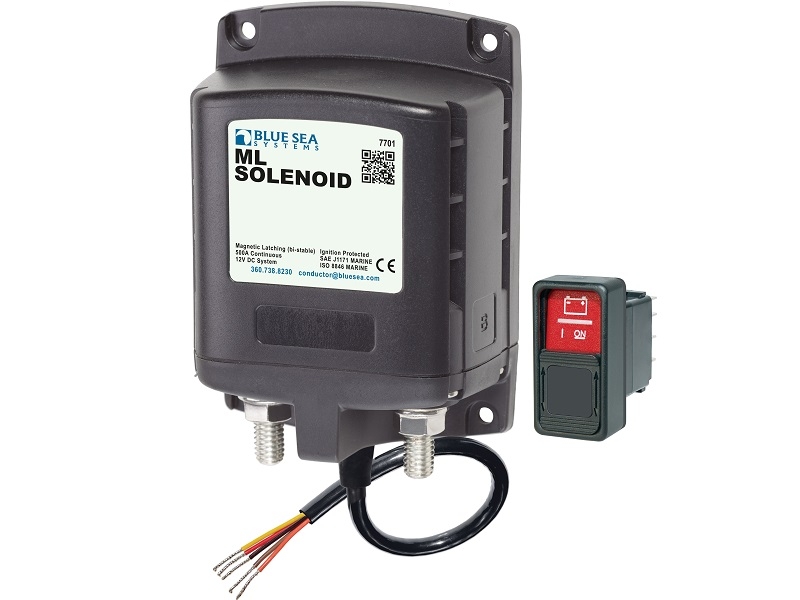

7701 - ML Solenoid - 12V DC

€ Price on request (vat incl.)

€ Price on request (vat not incl.)

Manufacturer: Blue Sea Systems

Part Number: 7701

Our Ref.: 115900

Blue Sea Systems 7701 ML Solenoid 12V DC 500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Blue Sea's 500A Magnetic Latching Solenoid, 24V DC provides switching under load where manual control is not required. Includes ML-Series Remote Control Contura Switch 2145.

Features

• 500A continuous rating for engine, inverter, house loads, and emergency battery combine
• Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
• Silver alloy contacts provides high reliability for switching live loads
• 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" (22mm) stud length accepts multiple cable terminals

Specifications:

  • Control Circuit Connection: Tinned Wire
  • Nominal Voltage: 12V DC
  • Manual Control: No
  • Coil Function: Bi-Stable
  • Mounting: #10
  • Amperage Operating Current continuous: 0A
  • Terminal Stud Torque: 140 in-lb (15.82 Nm)
  • Continuous Rating: 500A
  • Intermittent Rating: 700A (5 min)
  • Cranking Rating 30 sec: 1450A DC
  • Cable Size to Meet Ratings: 2x (4/0)
  • Switching Cycles: 100000
  • Terminal Ring Diameter Clearance: 1.18in (29.97 mm)
  • Terminal Stud Length: 0.875in (22.23 mm)
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 1.75lb (0.79 kg)
