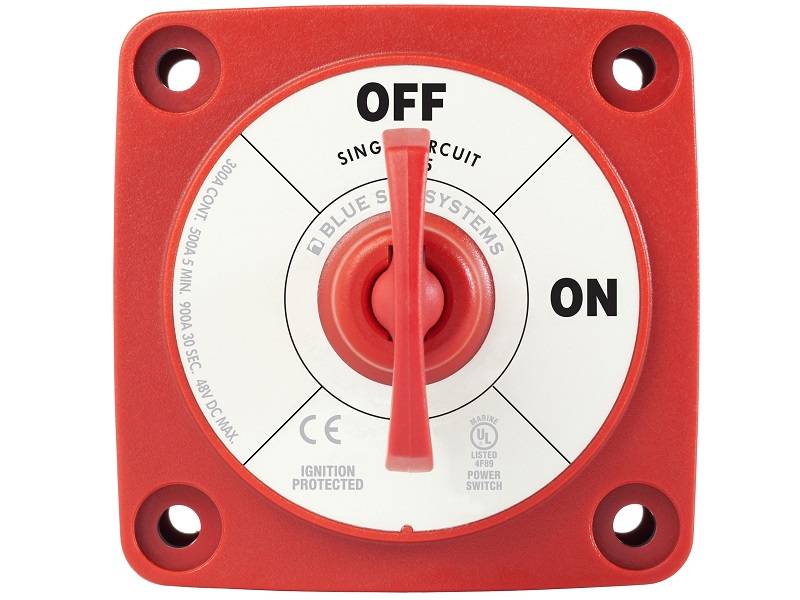

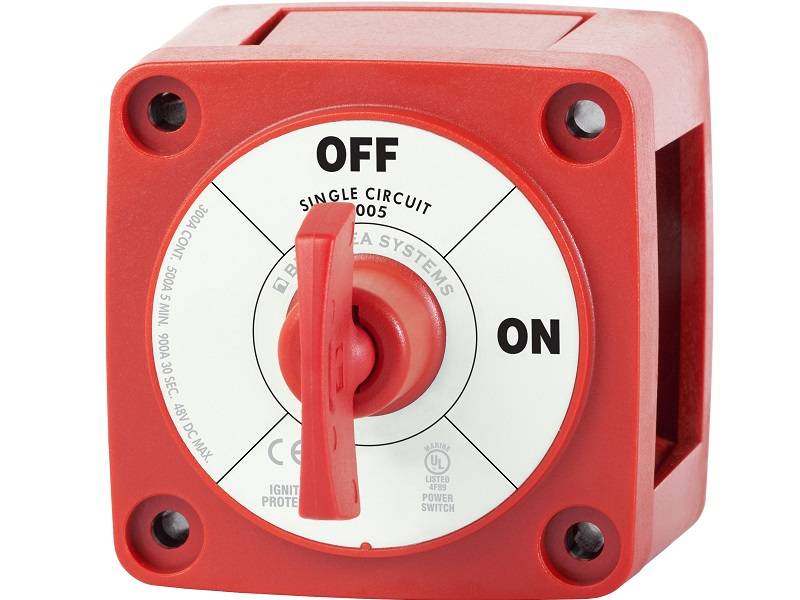

6005 m-Series Mini On-Off Battery Switch with Key – Red - 300A

6005 is a Mini On-Off Battery switch with key, from Blue Sea Systems, in red. It supports a continuous current of 300 Amps and switches a single battery to a single load group

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

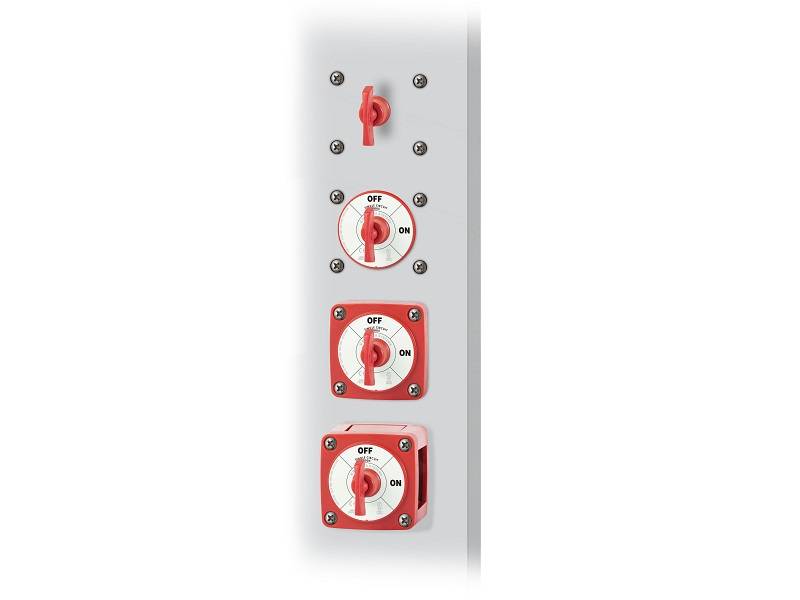

Case design allows surface, front panel, or rear panel mounting

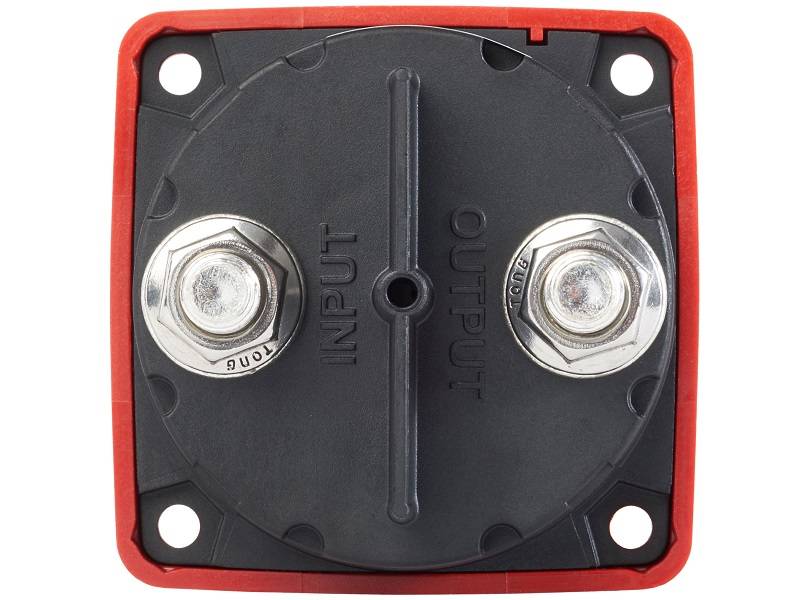

Isolating cover with snap-on sections protects rear contacts

SPECIFICATIONS

• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48V DC
• Stud Size: 3/8"
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 30 sec: 900A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm²)
• Mounting Holes: Accept #10 Screw
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)
• Weight: 0.62lb (0.28 kg)
