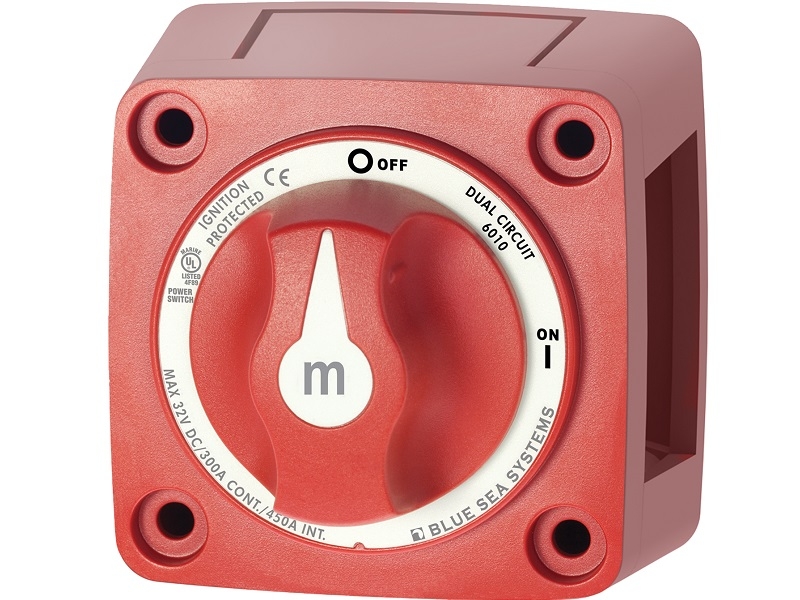

6010 - m-Series Mini Dual Circuit Battery Switch - Red

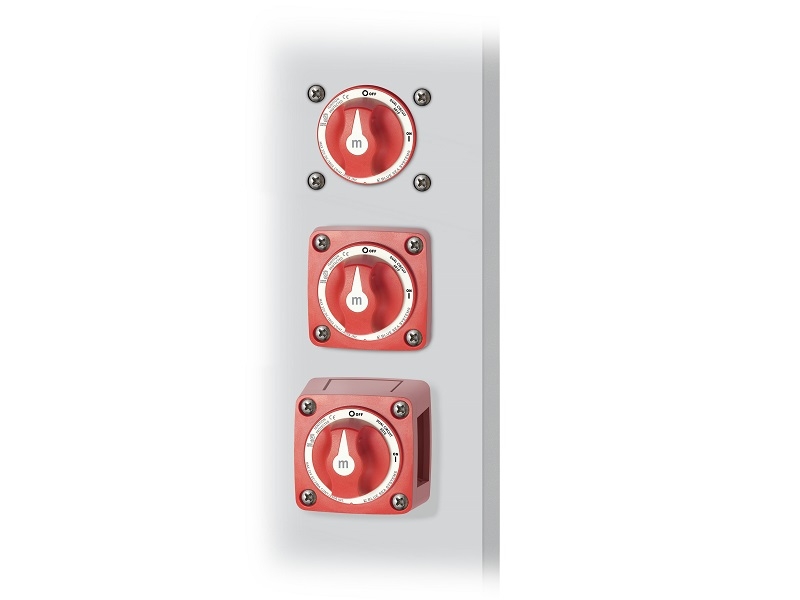

This battery switch is versatile enough for just about any application with batteries in small and medium sized vessels. The Mini Dual Batteries switch is quite compact and ideal for installations where space is tight.

Despite its size, its current capacity exceeds that of many standard battery switches.

This battery switch provides insulation for the Motor and Starter circuit. It simultaneously connects two batteries while isolating them from each other. Battery insulation protects the "Start" battery from being discharged from home loads, such as refrigerators, sound systems and lights, preserving it for engine starting.

Battery insulation also protects sensitive electronics from voltage surges and may occur during engine starting. In addition, when coupled with an automatic charge relay or battery isolator, both battery banks are automatically charged.

Main Features:

• Switch: Double Circuit
• Color: Red
• Positions: 2 (ON / OFF)
• Battery Combo: No
• Maximum Voltage: 32V DC
• Continuous Amperage: 300 A
• Intermittent Amperage: 450 A (5 min)

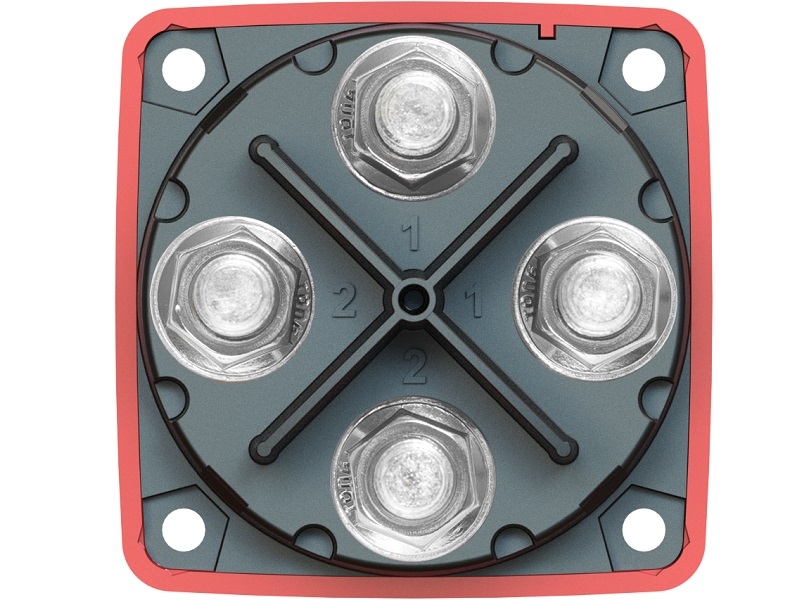

• Battery Inputs: 2
• Weight: 360 g
