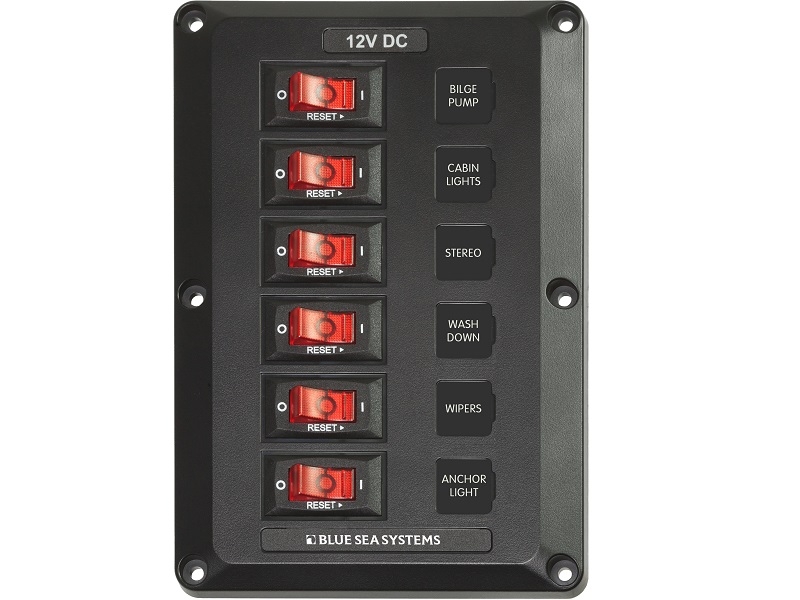

4352 - 6 Positions, BelowDeck Circuit Breaker Panel

DURABLE
Molded panel frame will stand up to UV and salt air

EASY
Low profile makes it easy to install in tight spaces

SIMPLE
Fast-on circuit breaker connectors make it quick to wire

CONVENIENT

• Red “ON” indicating LEDs for safe operation in low light conditions
• Illuminated ON indication
• Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
• Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
• Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
• Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
• Stainless steel #6 x 5/8″ mounting screws included

Specifications:

• Positions: 6
• Nominal Voltage: 12V DC
• Maximum Amperage: 45A
• Terminal Type: 1/4″ Male quick connect
• Hardware: Stainless Steel #6 x 5/8″ mounting screws
• Ring Terminal Size: M5 (#10)
• Height: 165.1 mm
• Width: 114.3 mm
• Depth: 44.45 mm
