4304 - WeatherDeck® 12V DC Waterproof Fuse Panel - Gray 4 Positions

Designed for open-cockpit and flybridge applications

• Fuse Model: Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No color) circuits
• Circuit Breaker Model: Green LEDs illuminate circuit labels
• Fuse and Circuit Breaker Models:
• Backlighting is compatible with DeckHand Dimmers
• Independent label backlighting allows switching and dimming
• Switch Only Model: No circuit protection or illuminated circuit labels
• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket

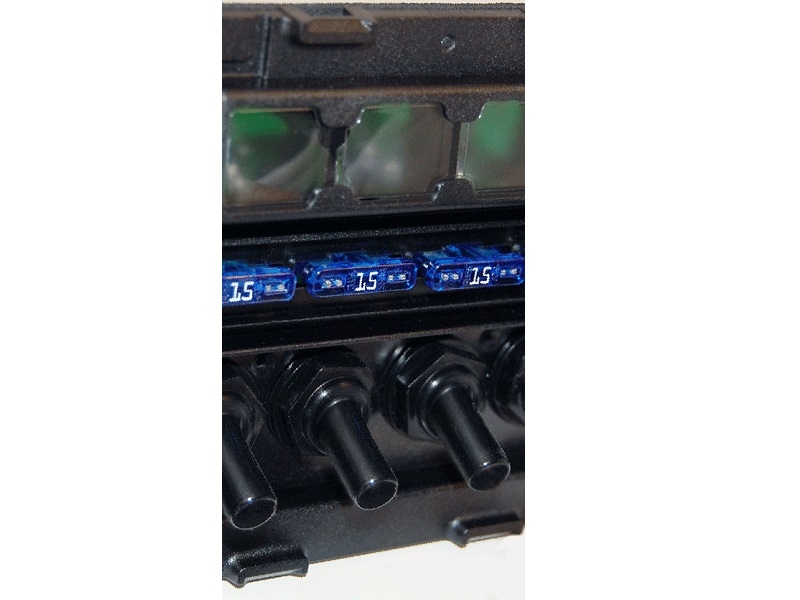

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws

SPECIFICATIONS:

• Weatherproof: resistant in rain, spray, and splash
• Positions: 4
• Nominal Voltage: 12V DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED’s
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12V DC
• Material: Reinforced Polycarbonate
• Height: 4.30in (109.22 mm)
• Width: 3.88in (98.55 mm)
• Depth: 2.50in (63.5 mm)
• Weight: 0.90lb (0.41 kg)
