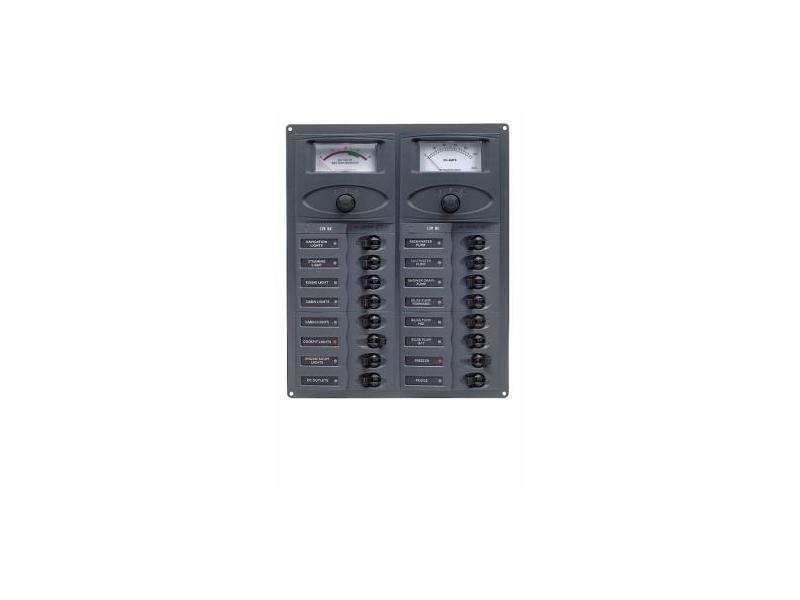

904-AM – DC Panel - 16-Way – Analog Meter

BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminum base plates to the Airpax magnetic hydraulic circuit breakers.

FEATURES

• Analog Meter
• 12V (24V Backlighting Upgrade Kits on page 75)
• Label set(s) and buss bar supplied with panels
• Depth for mounting 2.5" (64 mm) all panels

SPECIFICATIONS:

• Meter: Analog
• Total Positions: 16 loads
• Circuit Breakers (single pole): 4x 5A, 5x 10A, 5x 15A, 1x 20A, 1x 25A
• Nominal Voltage: 12V
• Maximum Amperage: 160A per bus
• Dimensions: 295 x 239 mm
• Neg BUS: 12 way
