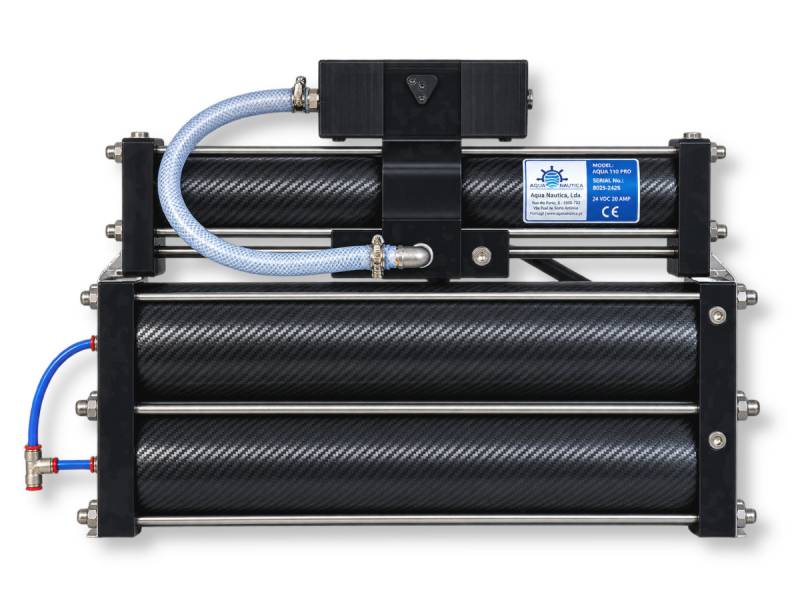

AQUA 110 PRO – Compact 110 L/h Marine Watermaker

The AQUA 110 PRO is a compact and energy-efficient marine desalinator from Aqua Nautica, designed for sailboats and yachts, with a production capacity of 110 liters of water per hour. Available in 12V or 24V versions.

The AQUA 110 PRO is a compact, energy-efficient marine watermaker designed for sailboats and yachts. Its enhanced Clark pump energy-recovery system produces 110 liters of fresh water per hour while drawing only 40 A at 12 V DC or 20 A at 24 V DC. The fully mechanical, hydraulically self-regulating design helps simplify operation and maintenance.

Watermakers for Sailboats and Yachts

Aqua Nautica PRO watermakers are next-generation marine desalination systems equipped with a Clark pump energy-recovery device. Their low electrical demand makes them suitable for 12V or 24V battery systems and, when properly sized, solar-powered installations.

The AQUA 30 PRO, AQUA 60 PRO and AQUA 110 PRO produce between 30 and 110 liters of fresh water per hour. Each model is designed for reliable operation, straightforward installation and simple maintenance in demanding marine environments – without electronic controls.

Watermakers for boats with Clark pump – new generation

Low-power 12V and 24V DC operation makes the AQUA PRO Series suitable for onboard battery systems and, when properly sized, solar-powered installations.

Clark pump energy recovery helps reduce the electrical power required to produce fresh water at sea.

Aqua Nautica combines durable components, simple hydraulic operation and competitive pricing across the AQUA PRO range.

Why Aqua Nautica Watermakers?

• High-quality construction at a competitive price
• 12V and 24V DC configurations
• Up to 85% lower power consumption than conventional high-pressure watermakers
• No generator required when the onboard electrical system is properly sized
• Quiet, low-vibration operation
• Low maintenance requirements
• Hydraulic self-regulation with no manual pressure adjustment during normal operation
• Straightforward installation with online technical support

Key Features

• High freshwater output: Produces 110 L/h (29 US gal/h), making it suitable for larger crews and vessels with greater daily freshwater requirements.
• Efficient power consumption: Draws 40 A at 12 V DC or 20 A at 24 V DC.
• High salt rejection: Achieves a minimum salt rejection rate of 99.5%, producing water with less than 500 ppm TDS under specified operating conditions.
• Clark pump energy recovery: Reuses pressure energy from the outgoing brine stream to reduce electrical power consumption.
• Fully mechanical operation: Requires no electronic control system or manual pressure adjustment during normal operation.
• Solar-compatible operation: Can operate from a properly sized solar array, battery bank and electrical system.
• Compact modular design: Weighs 37 kg dry and is designed for flexible installation on yachts and motorboats.
• Wide operating range: Handles feedwater salinity up to 50,000 ppm and temperatures from 0.5°C to 45°C.

Why Choose AQUA 110 PRO?

The AQUA 110 PRO is designed for larger crews, extended cruising and vessels with high daily freshwater demand. Its 110 L/h production capacity, fully mechanical operation and Clark pump energy-recovery system provide dependable freshwater production while maintaining efficient electrical consumption.

Specifications

• Power requirements: 40 A at 12 V DC; 20 A at 24 V DC
• Freshwater production: 110 L/h (29 US gal/h), ±15% at 13.8 V DC
• Feedwater flow rate: 1,000 L/h (264 US gal/h)
• Rated performance: Measured at a feedwater temperature of 26°C (80°F) and salinity of 33 g/L. Actual output may vary depending on feedwater temperature, salinity and system condition.
• Salt rejection: Minimum 99.5%
• Product water TDS: Less than 500 ppm
• Feedwater salinity: Up to 50,000 ppm TDS (NaCl)
• pH range: 4–11
• Chlorine tolerance: Less than 0.1 ppm
• Operating pressure: 50 bar
• Feedwater temperature range: 0.5–45°C (33–113°F)
• Dry weight: 37 kg, excluding water hoses and electrical cables
