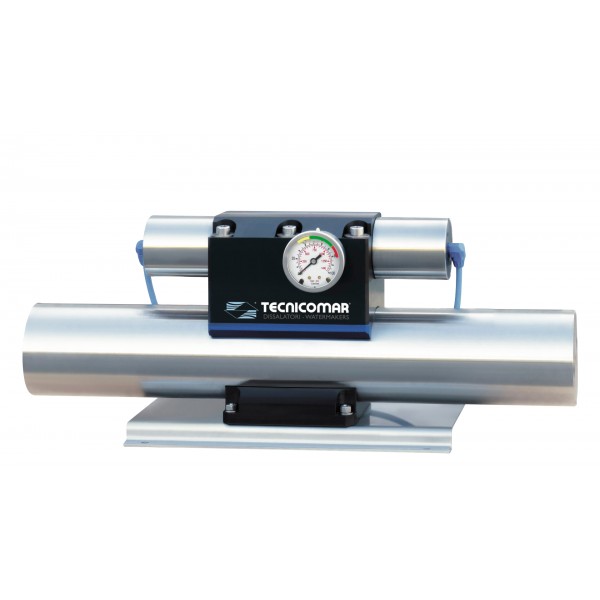

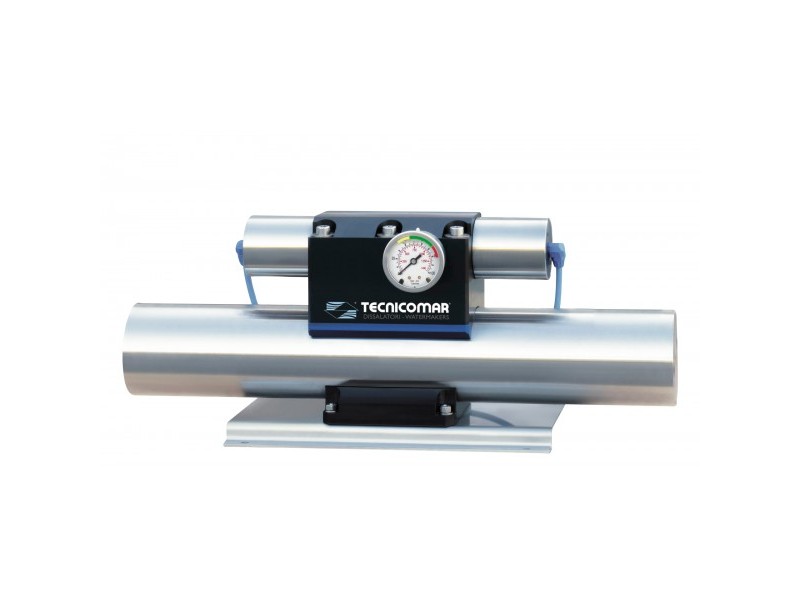

Oasi 30 – 12V | 35 liter/hour & 840 liter/day Watermaker

The small Oasi Reverse Osmosis desalination plants are the units of choice when power or space is an issue. They can be run from a yacht’s batteries, solar or wind power without the need for a generator and are popular on smaller sailing and motor boats that want to stay free from the constraints and expenses of marinas.

These new-generation water makers use a low-pressure pump to raise water pressure to only about 15 bar. The high pressure necessary to activate the reverse osmosis process (55-60 bar) is reached through a hydraulically pressure intensifier. The system allows energy savings of up to 80% compared to conventional desalination plants as it requires only the initial energy of the low-pressure pump to bring the water into the water maker.

The OASI excels for hands-on simplicity and high-quality components like the stainless-steel base, clamps and high-pressure fittings, FDA compliant membranes and filters and TÜV certified lightweight carbon fiber pressure vessels. On request, the OASI can be supplied with automatic membrane flushing, electronic control box and a remote control for major comfort as well as with an activated charcoal filter to improve the taste of the produced water.

STANDARD FEATURES:

– Low electric power consumption: 4.8 W/liter (average)
– Automatic pressure regulation
– High and low pressure gauges
– Available voltages: 12 / 24 V dc
– Easy installation, control and maintenance

SPECIFICATIONS

• Production per hour: 35 litres
• Production per day: 840 litres
• Installed Power (kW): 0.2
• Voltage: 12V DC
• Current drain: 14 A (12V)
• Weight: 26 kg

To download the files simply click on the desired files to select and then click the Download button at the bottom .
