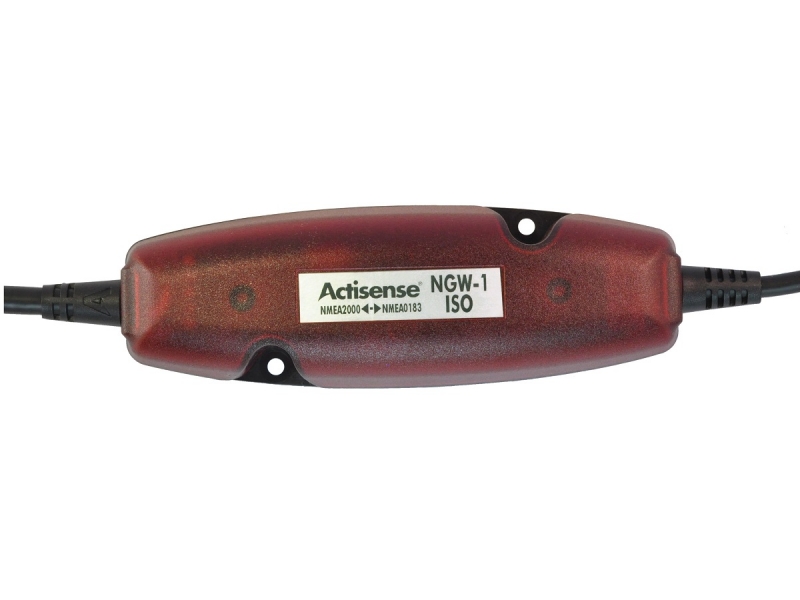

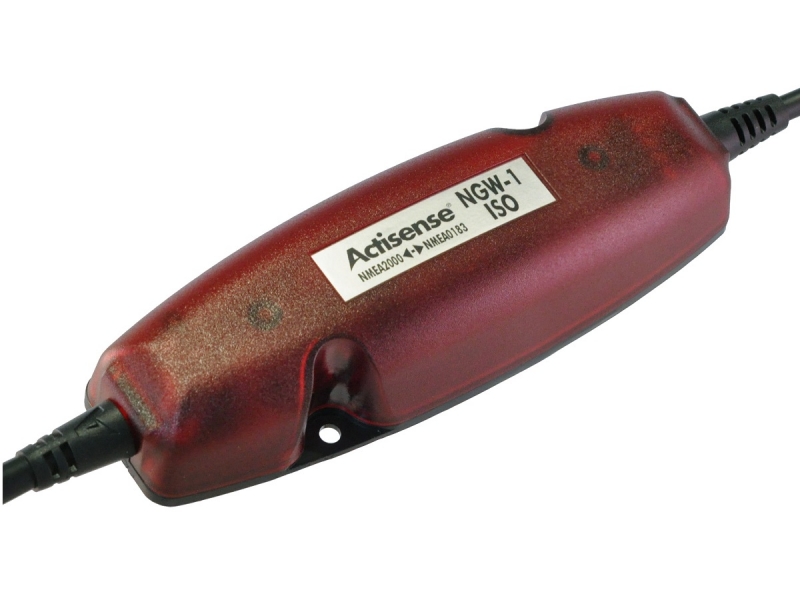

NGW-1-ISO-AIS - NMEA 0183 to NMEA 2000 AIS Gateway

Using the advanced configuration software provided, it is straightforward to set up which data conversions are required for both directions.

Please see below for just some of the benefits of using the NGW-1:

• Upgrade NMEA 0183 equipment to NMEA 2000
• Allow NMEA 0183 devices to receive vital NMEA 2000 data
• Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
• Configure using NMEA Reader

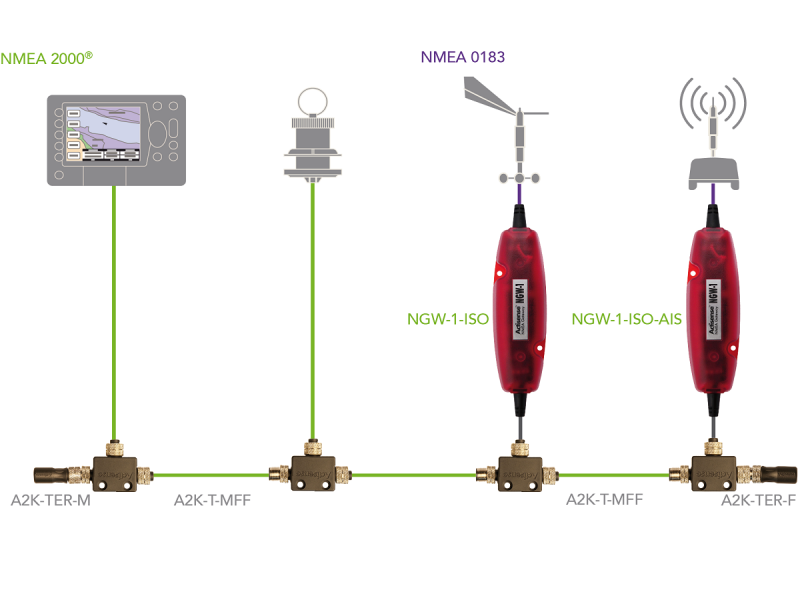

Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data items from one place to another.

The Actisense NMEA Reader software utility allows the NGW-1 user to view and understand (in detail) the translated NMEA 0183 sentences output by an NGW-1 directly.

The NGW-1-ISO-AIS is the NMEA 0183 AIS option. This is a pre-configured version of the standard NGW-1-ISO that enables the conversion of NMEA 0183 AIS data to its equivalent in NMEA 2000. This provides an 'out of the box' solution for quick installation with no configuration required. Please see the conversion list in the downloads section to see which AIS conversions the unit can perform.

Benefits of the NGW-1 ISO-AIS:

• Upgrade NMEA 0183 equipment to NMEA 2000
• Allow NMEA 0183 devices to receive vital NMEA 2000 data
• Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
• Configure using NMEA Reader

Features

• Converts the most common NMEA 0183 sentences into NMEA 2000 PGNs
• Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences
• Galvanic Opto-isolation on NMEA 0183 input
• Galvanic isolation on NMEA 0183 / ISO-Drive™ output
• Galvanic Opto-isolation on NMEA 2000 CAN bus connection
• Compatible with all NMEA 0183 versions without configuring
• NMEA 0183 output compatible with RS422, RS232 and RS485 type Listeners
• NMEA 0183 input compatible with RS422 and RS232 type talkers
• Configuration options available in NMEA Reader
• Configurable baud rate
• Transfer list for selecting which NMEA 2000 PGNs are sent and received
• Free Firmware updates provided when new features and conversions are added - update in the field via PC

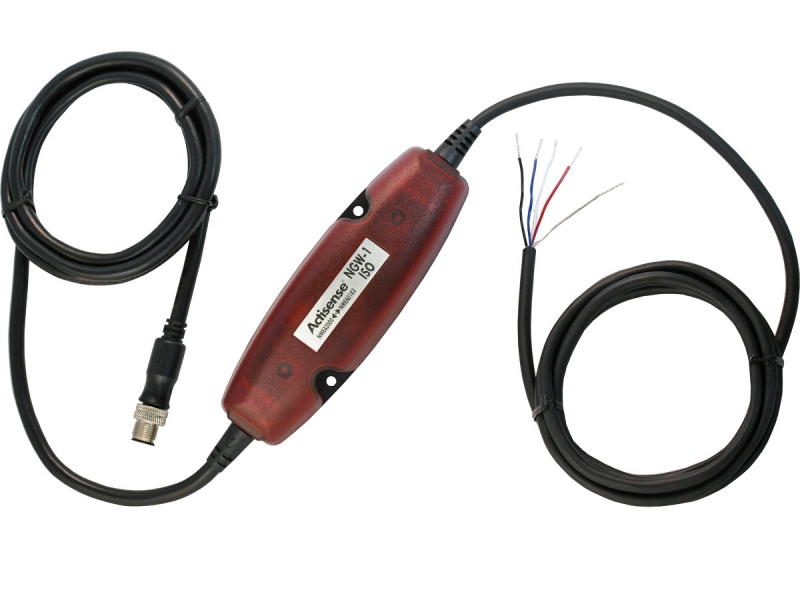

• Pre-fitted cables for ease of installation
• Screw terminals for easy installation of custom cables if required
• Four available variants for different installation situations (see part code list on next page)
• Adaptor cable for connecting to Raymarine® SeatalkNG networks provided with the STNG variant
• Multiple NGW-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network

TECHNICAL SPECIFICATIONS

Power Supply

• Supply Voltage (NMEA 2000 port): 10 to 35V DC
• Supply Current (NMEA 2000 port): 35mA @ 12V DC
• LEN: 1 (50 mA maximum)

NMEA 0183 Port

• Compatibility: Fill NMEA 0183, RS232 & RS422 Compatible | RS485 Listener Compatible
• Galvanic Isolation: 2500V input to ground | 1500V output to ground using ISO-Drive™
• Speed/Baud Rate: 4800 to 115200 Baud
• Output Voltage Drive: >=2.1 V (differential) into 100 Ω
• Output Current Drive: 20mA max.
• Output Protection: Short circuit and ESD
• Input Voltage Tolerance: -15V to +15V continuous | -35V to +35V short term (<1 second)
• Input Protection: Current limited and overdrive protection to 40V DC
• Connectivity: 5mm stripped and tinned wire
• Cable Length: 1.5m

Mechanical

• Housing Material: Polycarbonate
• Weight: 220g

Approvals and Certifications

• Fully NMEA Certified: Meets all IEC 61162-1 & 61162-2 requirements | Meets all IEC 61162-3 requirements
• EMC: IEC 60945 (Sections 9, 10 & 11.2)
• Environmental Protection: IP54
• Operating Temperature: -20°C to + 55°C
• Storage Temperature: -30°C to + 70°C
• Recommended Humidity: 0 - 93% RH
• Warranty: 3 Years

NMEA 2000 Port

• Compatibility: Fully NMEA 2000 Certified
• Galvanic Isolation: Refer to 'NMEA 0183 Port' or 'USB Port'
• Speed/Baud Rate: 250kbps
• Connectivity: M12 Male (A polarized) connector molded on cable
• Cable Length NMEA 2000: 1.5m
• Cable Length STNG Adapter: 0.4m (1.9m with NMEA 2000 cable connected)
