NGT-1-USB NMEA 2000 to PC Interface

The diagnostic NMEA Reader software allows viewing of NMEA 2000 messages with configuration options, enabling the set-up of all Actisense products on the NMEA 2000 bus.

Now available with the SeaTalk NG to NMEA 2000 adaptor Cable - STNG-A06045

The SeaTalk NG to NMEA 2000® adaptor cable (STNG-A06045) is not available as a standalone product and must be bought as part of a bundle.

Please see below for just some of the benefits of using the NGT-1:

• Sends and receives pure NMEA 2000 data
• Configure and flash-update Actisense products on the NMEA 2000 bus
• Use with NMEA Reader to help diagnose network problems
• Provides a rule-enforcing firewall between a PC and an NMEA 2000 bus
• NGT-1-USB and NGT-1-ISO versions available to suit all installations

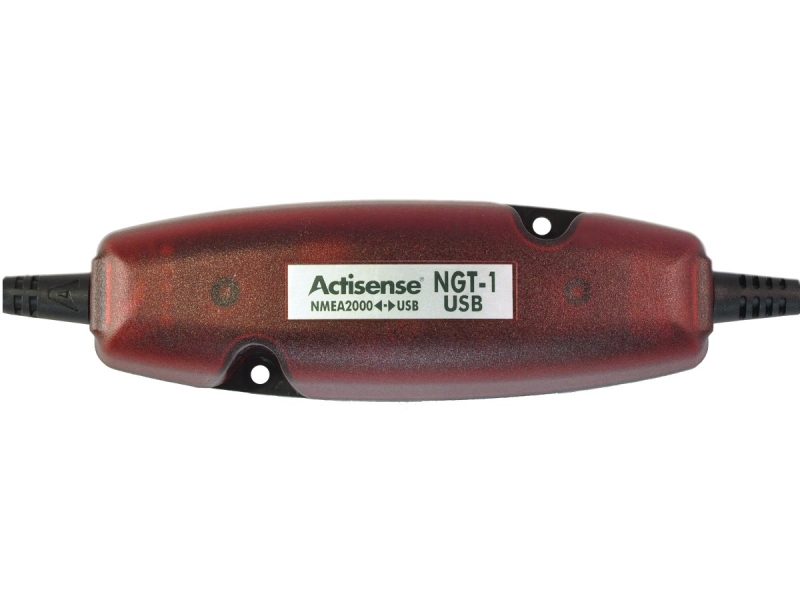

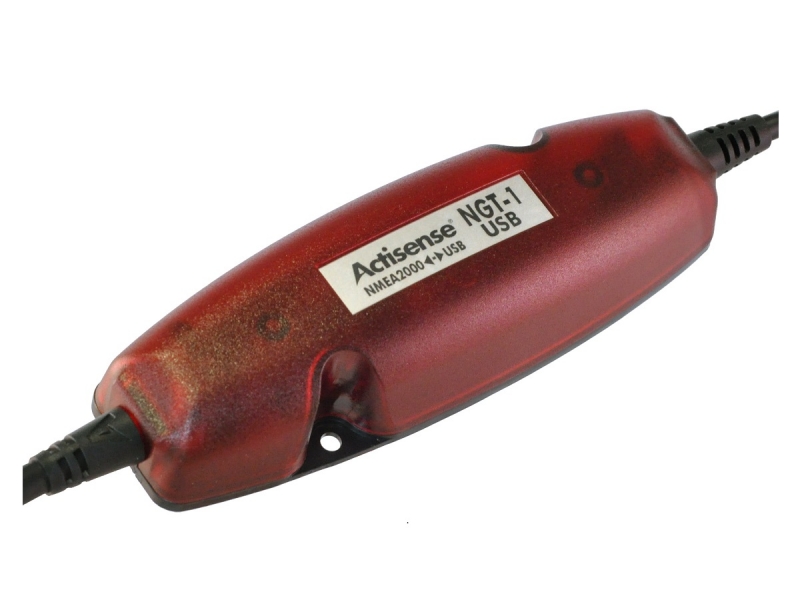

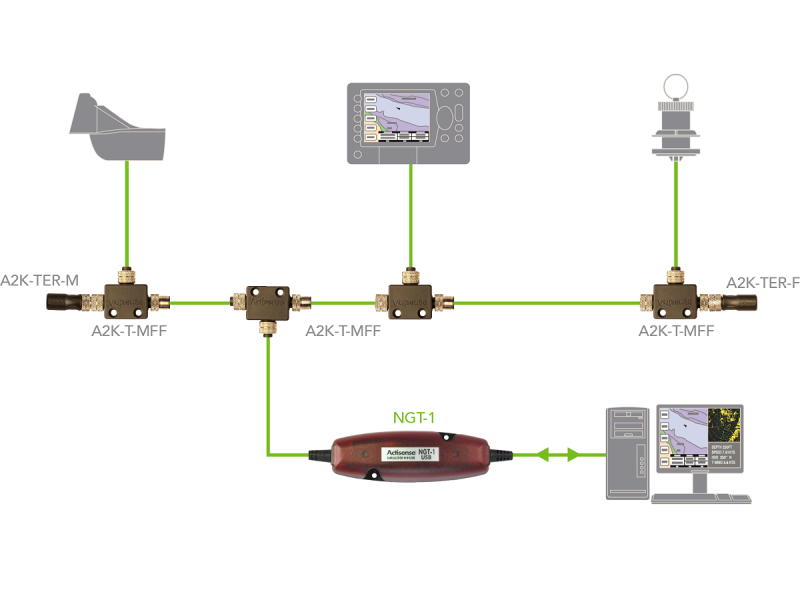

The NGT-1-USB is the standard option - USB interface for bi-directional connection to a PC.

The firewall feature enforces the NMEA 2000 bus rules, so software manufacturers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.

With the upcoming 'Third Party Gateway' status, leading chart plotter software will be able to be certified to work with the NGT-1.

Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGT-1 into their software.

FEATURES

• Able to transfer all NMEA 2000 PGNs
• Firewall enforces NMEA 2000 bus rules
• Galvanic Opto-isolation between the PC and the NMEA 2000 network
• ISO variant: ISO-Drive™ output compatible with RS422 and RS232
• Transfer list for selecting which NMEA 2000 PGNs are sent and received
• Free Firmware updates provided when new features are added - update in the field via PC

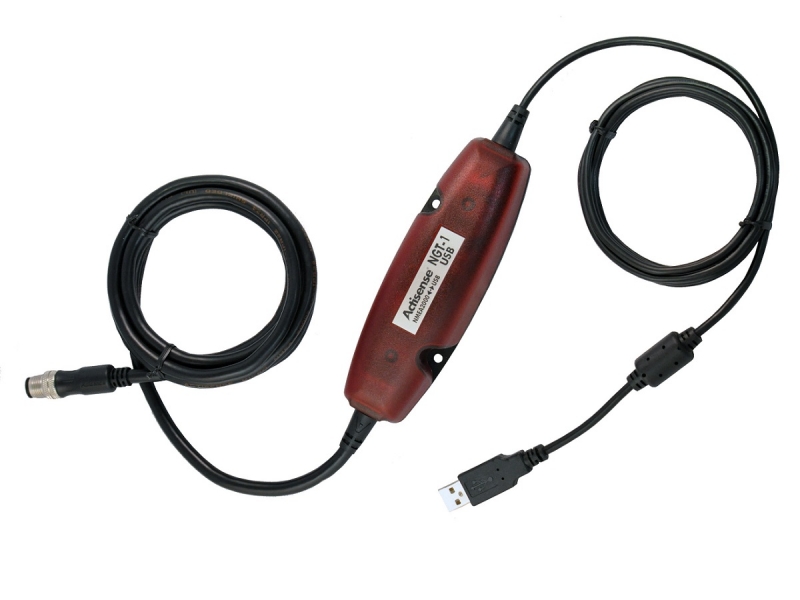

• Pre-fitted cables for ease of installation
• Screw terminals for easy installation of custom cables if required
• Two available variants for different installation situations (see part code list on next page)
• Free SDK for software developers
• NMEA 2000 certification of software not mandatory; no certification cost
• Only required to purchase NMEA 2000 Appendix B to develop software
• Reduced software development time with Windows API
• Suitable for Windows, MAC and Linux applications
• Suitable for PC, mobile or embedded systems
• NMEA 'Third Party Gateway' status pending

Technical Specifications

Power Supply:

• Supply Voltage (NMEA 2000 Port): 10 to 29V DC
• Supply Current (USB Host Port): 85mA @ 5V DC
• Supply Current (NMEA 2000 Port): 10mA @ 12V DC
• LEN: 1 (50 mA maximum)

Mechanical:

• Housing Material Lid: Polycarbonate
• Housing Material Base: ABS
• Weight: 210g

Approvals and Certifications:

• Fully NMEA 2000 Certified: Meets all IEC 61162-3 requirements
• EMC: IEC 60945 (sections 9, 10 & 11.5)
• Environmental Protection: IP54
• Operating Temperature : -20°C to +55°C
• Storage Temperature: -30°C to +70°C
• Recommended Humidity: 0-93% RH
• Guarantee: 3 years

NMEA 2000 Port:

• Compatibility: Fully NMEA 2000 certified
• Galvanic Isolation: Refer to 'PC port' to 'USB port'
• Speed/Baud: 250kbps
• Connectivity: M12 Male (A polarized) connector molded on cable
• Cable Length NMEA 2000: 1.5m
• Cable Length STNG Adapter: 0.4m (1.9m with NMEA 2000 cable connected)

USB Port:

• Compatibility: USB V1.1, V2.0 and V3.0
• Galvanic Isolation: 2500v input to ground
• Speed/Baud Rate: 4800 to 230400 Baud
• Connectivity: Male type A plug moulded onto cable
• Cable Length: 1.5m
• Drivers (Latest OS): Windows XP, Vista 7, 8 & MAC OS X supplied on CD and NGT-1 Downloads page
• Drivers (Legacy OS): Contact Actisense for full details of the legacy OS versions supported support@actisense.com
