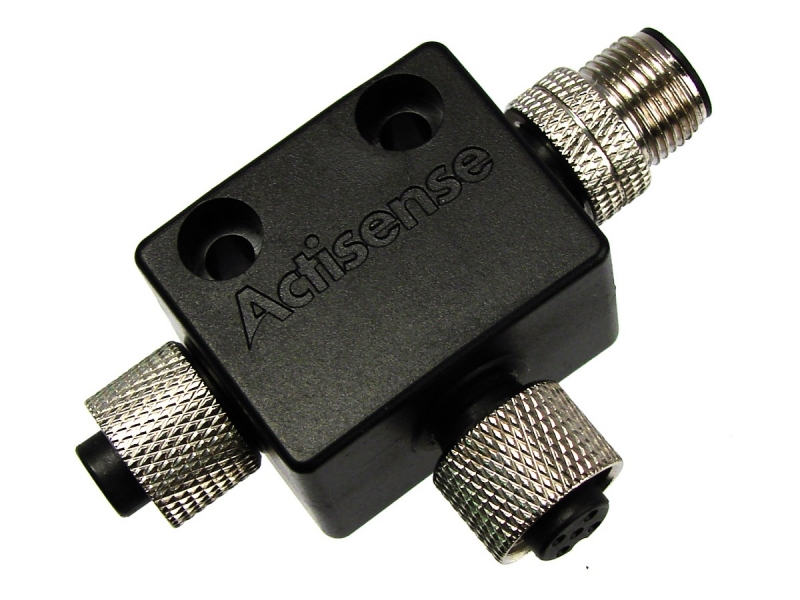

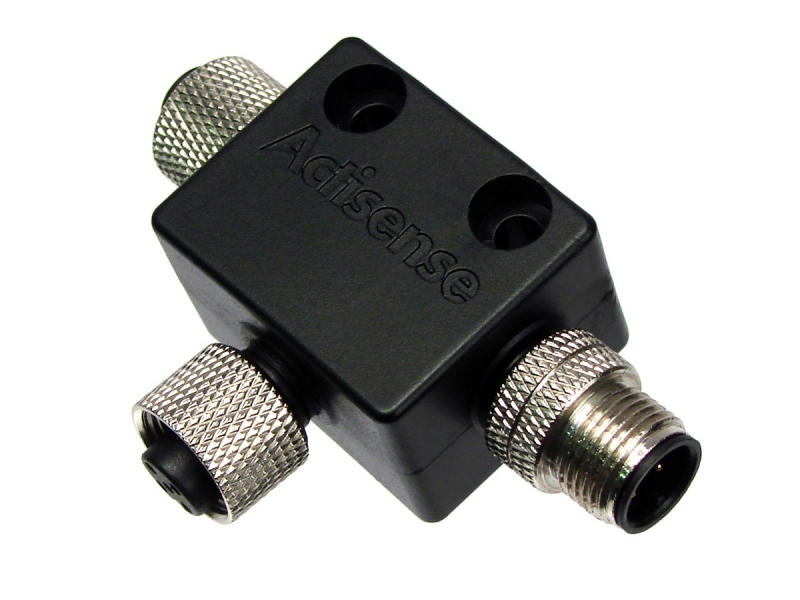

A2K-T-MFF - MEA 2000 Micro T Piece

The quality engineered connectors are shaped to allow easy and secure connections, even when field fit connectors are used, making it a totally unique T piece.

With two female and one male connector, the A2K-T-MFF can be easily connected to Actisense NMEA 2000 micro cable assemblies, available in various lengths with UL certified cable for unbeatable quality.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge. All Actisense products are NMEA 2000 certified and fully compatible with other NMEA 2000 connectors and devices.

All Actisense connectors follow the DeviceNet® standard.

Technical Specifications

Electrical

• Rated Current: 4 A
• Rated Voltage: 25 V (AC/DC)

Mechanical

• Male Contact: Brass, gold plated
• Female Contact: Phosphor bronze, gold plated
• Contact Carrier: PBT, black
• Contact Polarization: Standard M12 - "A" - Polarization
• Mating Thread: M12
• Screw Cap: Brass, nickel plated
• O-Ring Seal: Rubber, black
• Housing: PVC, black
• Weight: 47g

Approvals and Certifications

• Protection: IP67 (when mated)
• Operating Temperature: - 20°C to + 70°C
• Storage Temperature: - 40°C to + 85°C
• NMEA 2000 Certified
• RoHs Compliant
• UL Certified (UL1277)
