Stealth 54/48”- 54lbs thrust Bow Mount Electric Motor – 12V

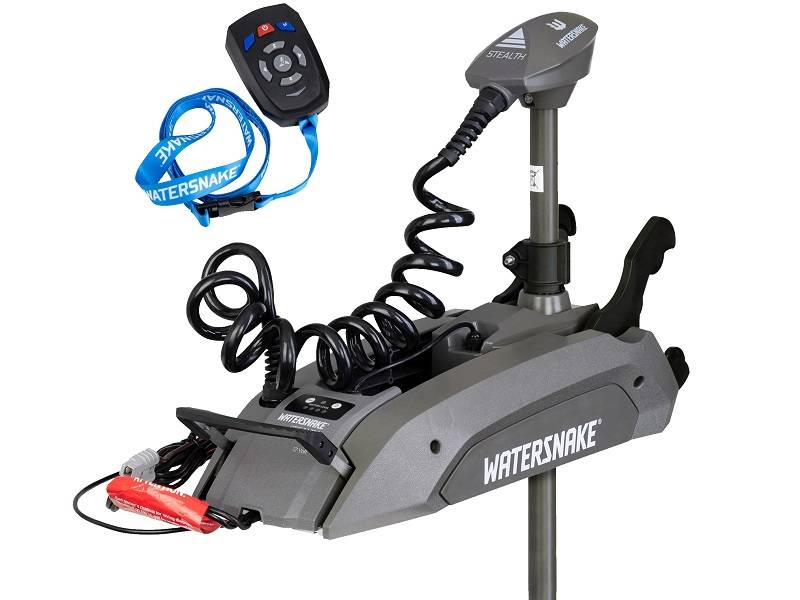

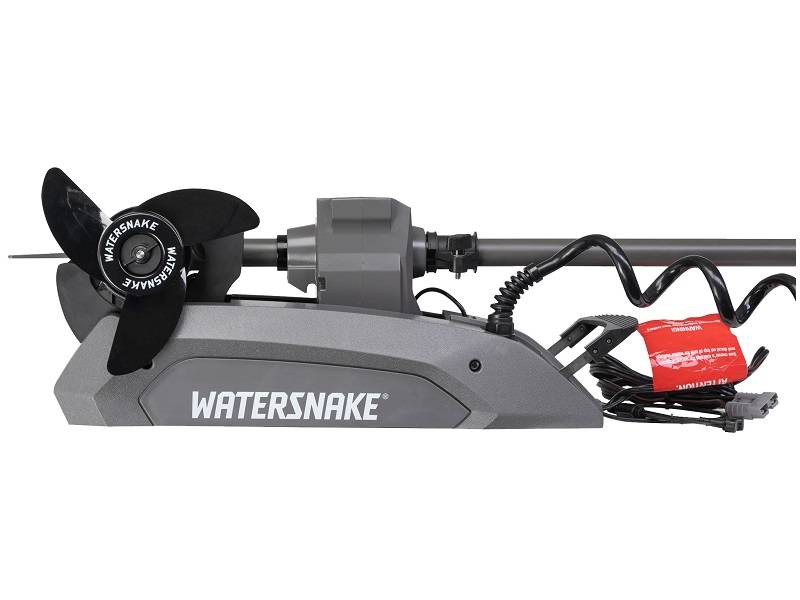

The Watersnake Stealth Bow Mount Electric Motor packs all of the essential features of an electric motor into an energy-smart design that requires only one 12-volt battery for power. Equipped with either 54lbs or 65lbs of thrust, the Stealth packs plenty of power for most trailer boats. Under typical usage conditions and with a suitable battery, the Stealth motor provides hours of on-water operation.

The Stealth motor includes a handheld remote fob which enables wireless control from anywhere on your boat. It also comes with built-in voltage protection for safety and an Anderson plug system for fast and simple battery connection.

NEW AND IMPROVED BRACKET: Easier and smoother to deploy and stow. It includes large cradle hooks to hold the motor firmly in place while stowed.

FEATURES:

• Up to 54lb thrust on 12v: Plenty of power and only needs a single 12 volt battery.
• Ready for saltwater: Tough composite shaft, sacrificial zinc anode, encapsulated driver module.
• Wireless handheld remote: Stay in control, anywhere on your boat.
• Lifepo4 battery compatible: Use a lightweight 12V lifepo4 lithium battery up to 14.5V in use.
• Upgraded mounting bracket Easier to deploy and stow
• Stronger and faster turning box
• Anderson plugs for easy connections
• Efficient digital variable speed
• Built-in voltage protection up to 14.5v: no circuit breaker needed
• Weedless 3-blade propeller
• Stainless steel propeller shaft
• Compatible with optional gen3 foot controller

SPECIFICATIONS

• Thrust: 54lbs
• Volts: 12V
• Shaft: 48” (122 cm)
• Mounting type: Bow mount bracket
• Steering control: wireless handheld remote
• Speeds: digital variable
• Amp draw: 0-50A
• Max power output: 290W
• Max prop rpm: 1700 rpm
• Motor weight: 15.6 kg
• Voltage protection: Protected up to 14.5V. No circuit breaker or fuse required
• Shaft dia.: 1.2” (30 mm)
• Shaft wall thickness: 4.25mm
• Prop: 3-Blade (94mm pitch)
• GPS capability: No
• Foot control compatibility: Yes
• Wire gauge: 10AWG
• Required battery: 12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use
• Suggested battery capacity: 100Ah or larger
• Suggested loaded boat weight: up to 650 kg
